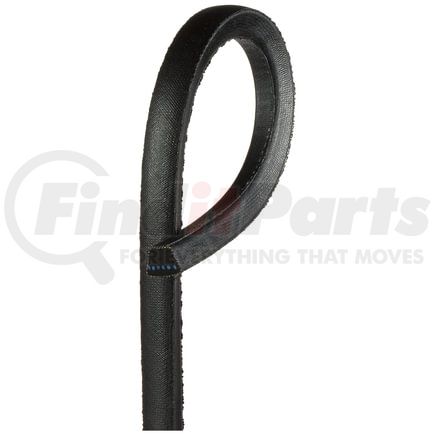

(888) 312-8812 Login SignupGATES B103 Hi-Power II Classical Section Wrapped V-Belt
Tap to view 2 more
$4349
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
GATES B103 Part Description
Manufacturer
Product Description
Hi-Power II Classical Section Wrapped V-Belt
Application Summary
Allis-Chalmers, 900, , Belt
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES B103 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 106 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 2692 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Stock Status | S |
| UPC | 00072053018059 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES B103 Cross References
| Brand | Part Number |
|---|---|
| 90036103 | |
| <Unknown> | 202062, 42464, 42482, 5H59829A103, 5H59831A103, BEL023, H41429 |
| ACDelco | IB103 |
| Allis Chalmers | 1110659, 1332177 |
| Auburn Gears | 112617, 112617A |
| Browning Manufacturing | B103 |
| CARQUEST | B103 |
| CONTINENTAL AG | B103 |
| Campbell Hausfeld | BT119 |
| Case Tractor | F60948, F95580 |
| Dayco | BP103 |
| Demco | 5X481 |
| Deutz-allis | 71329999, 71657517 |
| GOODYEAR BELTS | B103 |
| Goodyear | 77103, B103 |
| Grainger | 5X481 |
| Honda | 76182758J000 |
| Hutchinson | 320103 |
| Innes | 25001055 |
| International Harvester (IHC) | 181013X1, 20399K, 555142R1 |
| John Deere | J20918, N120717 |
| Magic Circle | 30203 |
| Massey Ferguson | 200557M1, 223006M1, GT5072 |
| Metric | 16C2690 |
| N/A | 41010688, B103, RB103 |
| NAPA | B103 |
| NAPA Belts/Hose | B103 |
| New Holland | 649108 |
| Owatonna | 02010500 |
| PIX | A-B103 |
| Quality | 170948086 |
| Reliance Electric | 107054 |
| Roper | 01711 |
| Rotary Lifts | 12-10036 |
| Sears | STD325035 |
| Simplicity | 1657517 |
| Speed King | B103 |
| Stens | 258-106, 265-130 |
| Timken | B103 |
| Toro | 27147 |
| U.S. Government | 3030002327921, MS39256B103 |
| Versatile | 3429, SW3429 |
| Wheel Horse | 113625 |
GATES B103 Customer Reviews
No reviews yet
Be the first to review this product!
GATES B103 Questions & Answers
No questions yet
Be the first to ask a question about this product!
