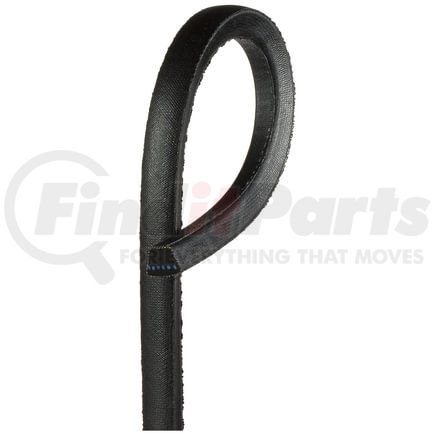

(888) 312-8812 Login SignupGATES A76 Hi-Power II Classical Section Wrapped V-Belt
Tap to view 2 more
$2449
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
GATES A76 Part Description
Manufacturer
Product Description
Hi-Power II Classical Section Wrapped V-Belt
Application Summary
International Harvester, 815, IH V-8 345, Rotary Air Screen Drive
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES A76 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | A |
| Strand Quantity | 1 |
| Top Width | .5 in |
| Outside Circumference | 78 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 13 mm |
| Outside Circumference | 1981 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053017786 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES A76 Cross References
| Brand | Part Number |
|---|---|
| 90026076 | |
| <Unknown> | 4767882002, R347750 |
| ACDelco | IA76 |
| AGCO | 1764410W1, 700709489 |
| Alliance Truck Parts | GTA76 |
| Allis Chalmers | 2088100 |
| Art Way Manufacturing Co | 073500 |
| Browning Manufacturing | A76 |
| CARQUEST | A76 |
| CONTINENTAL AG | A76 |
| Carrier Transicold | AC601413 |
| Caterpillar | 3S4147, 3S4148, 9L4265 |
| Dayco | AP76 |
| Deutz-allis | 71601524, 72087732, 72088100 |
| Engineering Products | 810078 |
| Ford | 328826, 328826A |
| GOODYEAR BELTS | A76 |
| General Motors | 9433948 |
| Goodyear | 76076, A76 |
| Grainger | 6L185 |
| HCC | D810078 |
| International Harvester (IHC) | 700709489 |
| Jacobsen | JAC328826 |
| John Deere | P46343 |
| N/A | 41010541, A76 |
| NAPA | A76 |
| NAPA Belts/Hose | A76 |
| New Holland | 86517936 |
| PIX | A-311764410, A-700709489, A-A76 |
| Reliance Electric | 107420 |
| Sears | 25723 |
| Setra | 4.767.882.002 |
| Simplicity | 1666886 |
| Timken | A76, AP76 |
| White | 311682670, 311764410 |
