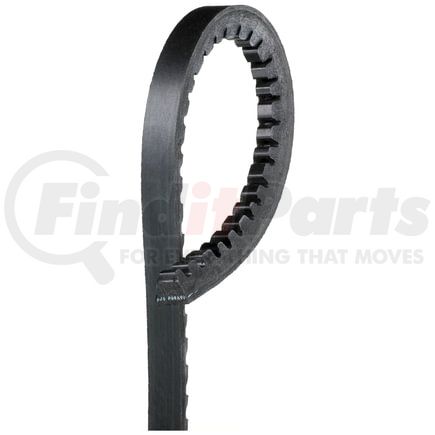

GATES 9745 Part Description
Manufacturer
Product Description
Automotive XL High Capacity V-Belt
Application Summary
1989-1979 International/Navistar, 1954, International/Navistar DT466 Diesel, Fan & P.S.
Features & Benefits
- Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley
- Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley
- Thermally-active tensile cords for maintenance-free performance when properly installed and tensioned
- Resists oil, heat, ozone, weather and aging for improved belt life
- Meets or exceeds SAE J636C specifications
GATES 9745 Specifications
Product Attributes
| Type | High Capacity V-Belt (Standard) |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .47 in |
| Outside Circumference | 75.08 in |
| Effective Length | 74.49 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 12 mm |
| Outside Circumference | 1907 mm |
| Effective Length | 1892 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053312782 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 9745 Cross References
| Brand | Part Number |
|---|---|
| 87019745 | |
| <Unknown> | 5000564436, 707166 |
| ACDelco | 9745HD, 17745 |
| Alliance Truck Parts | GT17751E, GT17751 |
| Bando | 3735, 4745, 4750 |
| Bosch | 1987947755, 910416-2380 |
| CARQUEST | 9745 |
| CONTINENTAL AG | 17741 |
| Carquest | 9745HD |
| Chrysler | 2202382 |
| Continental Belt | 6587437, V636 |
| Dayco | 17745, 421440, 422264, 423067, 423585, 423586, 425770, 433027, 434994, 47415, 51110, 51132, 54076, 57498, 17748 |
| GOODYEAR BELTS | 17745 |
| Gardner Denver | 1155967 |
| General Motors | 11502420, 9433945 |
| International Harvester (IHC) | 1809874C1, 1809875C91, 689443C1, 689443C91, 689444C1 |
| Mitsuboshi | MF6735, RECMF6735, REMF6735, MF2750, MF6740, RECMF2750, RECMF6740, REMF2750, REMF6740 |
| NAPA | 25-18925 |
| NAPA Belts/Hose | 25-9745HD, 25-9745, 9745HD |
| New Holland | 675481 |
| Optibelt | 2380 |
| Parts Master | 17745 |
| Volvo GM Heavy Truck | V1090863, V1091976, V1119055 |
| Waukesha | 208578, A208578 |
GATES 9745 Fits Vehicles
- International 1954 (1979-1989)
- International 1754 (1979, 1986-1988)
- International 1955 (1979-1989)
- International 1854 (1979-1989)
- International S1853 (1984-1988)
- International F1954 (1979-1989)
- International S1854 (1984-1989)
- International S1754 (1986-1988)
- International S1955 (1981-1989)
- International S1954 (1981-1989)
