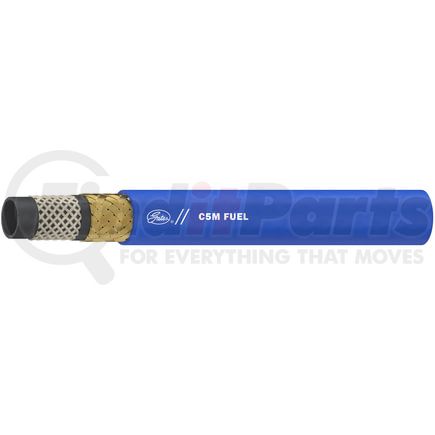

GATES 86600 - Fuel Hose - C5M Marine Fuel Line Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
C5M Marine Fuel Line Hose
Features & Benefits
- For use with Brass or Steel C5 and C5X Field Attachable Couplings [G34 Series], GlobalSpiral Couplings [G20 Series] and MegaCrimp Couplings [G25 Series]
- Nitrile tube with a one-wire braid reinforcement; Nitrile and PVC blue cover
- Exceeds performance requirements of SAE J30R2 for non-marine applications and meets USCG marine fuel line specifications, SAE J1527 B100 to +52 Deg. C (+125 Deg. F) Type A Class 1 and SAE J1942-1 Type A and Type B requirements
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -4 Deg. F to +212 Deg. F (-20 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | C5M Marine Fuel Line Hose |
| Industrial Description | 16C5MX50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 500 PS |
| Burst Pressure | 2000 PS |
| Temperature Rating | -4 Deg. F to +212 Deg. F (-20 Deg. C to +100 Deg. C) Continuous Service |
| Length | 50 FT |
| 9941 | 16 |
| Inside Diameter | .875 IN |
| Outside Diameter | 1.23 IN |
| 9879 | 3.5 IN |
| 9835 | 10 INHG |
| Tube Description | Nitrile - Type C |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Wire Braid |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Flame Resistant |
| Color | Blue |
| 9856 | Brass or Carbon C5 Field Attachable, MegaCrimp |
| 9453 | J1942, J1527, J30R2 |
| 9954 | N/A |
| 9953 | 840-A1 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053306149 |
| VMRS Code | 044001020 |
| UNSPSC | 40142000 |
