(888) 312-8812 Login SignupGATES 86596 C5M Marine Fuel Line Hose
$1,17699
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jul 24
GATES 86596 Part Description
Manufacturer
Product Description

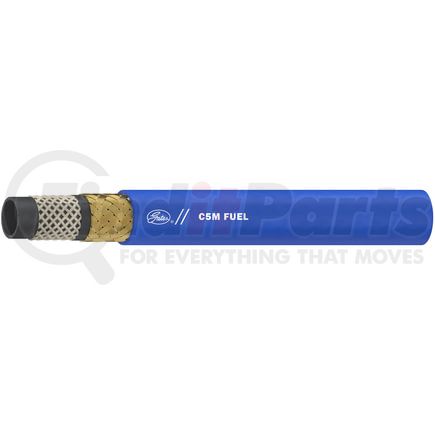

C5M Marine Fuel Line Hose
Features & Benefits
- For use with Brass or Steel C5 and C5X Field Attachable Couplings [G34 Series], GlobalSpiral Couplings [G20 Series] and MegaCrimp Couplings [G25 Series]
- Nitrile tube with a one-wire braid reinforcement; Nitrile and PVC blue cover
- Exceeds performance requirements of SAE J30R2 for non-marine applications and meets USCG marine fuel line specifications, SAE J1527 B100 to +52 Deg. C (+125 Deg. F) Type A Class 1 and SAE J1942-1 Type A and Type B requirements
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -4 Deg. F to +212 Deg. F (-20 Deg. C to +100 Deg. C)
GATES 86596 Specifications
Product Attributes
| Product Type | C5M Marine Fuel Line Hose |
| Industrial Description | 6C5MX50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 500 PS |
| Burst Pressure | 2000 PS |
| Temperature Rating | -4 Deg. F to +212 Deg. F (-20 Deg. C to +100 Deg. C) Continuous Service |
| Length | 50 FT |
| Dash Size | 6 |
| Inside Diameter | .3125 IN |
| Outside Diameter | .67 IN |
| Bend Radius | 1.3 IN |
| Vacuum Rating | 24 INHG |
| Tube Description | Nitrile - Type C |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Wire Braid |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Flame Resistant |
| Color | Blue |
| Coupling Recommendation | Brass or Carbon C5 Field Attachable, GlobalSpiral |
| SAE Standard | J1942, J1527, J30R2 |
| EN Standard | N/A |
| ISO Standard | 840-A1 |
| Material | Nitrile - Type C |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Stock Status | S |
| UPC | 00072053435474 |
| VMRS Code | 044001020 |
| UNSPSC | 40142000 |
GATES 86596 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030427 |
| NAPA | 86596 |
| Weatherhead | H05906 |
