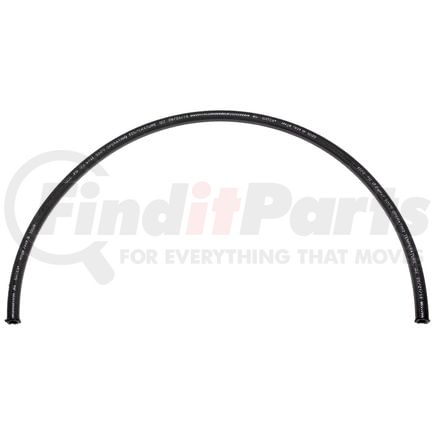

Gates 85983 - MegaTech 1000 High-Temp Oil-Air Return Hose
$4149
MSRP: $1,022.72
Save: $981.23
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
MegaTech 1000 High-Temp Oil-Air Return Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- 1000 psi constant pressure for all ID's
- Meets the requirements of DOT FMVSS 106-74, SAE J1402, for air brake hose (-4, -6, -8, -10)
- Meets the requirements of DOT FMVSS 106–74, SAE J1402, for air brake hose (-4, -6, -8, -10)
- Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
- NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
- NOTE: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
Product Attributes
| Product Type | MegaTech 1000 High-Temp Oil-Air Return Hose |
| Industrial Description | 10MEGATECH1000X50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1000 PS |
| Burst Pressure | 4000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Length | 50 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .93 IN |
| Bend Radius | 4 IN |
| Vacuum Rating | 30 INHG |
| Tube Description | Black, Specifically Compounded for Temperature & Chemical Resistance |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp, Stainless Steel S |
| SAE Standard | J1402 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00072053549355 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
