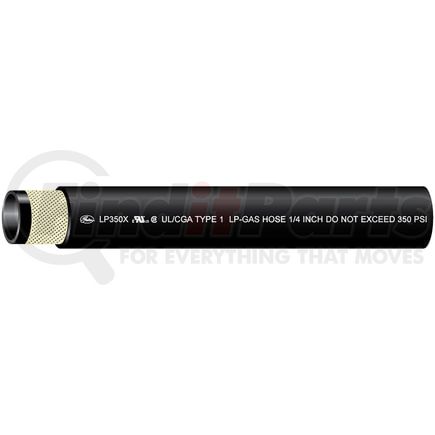

GATES 85719 - Hydraulic Hose - LP350X Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
LP350X Hose
Features & Benefits
- Application Note: LP350 hose assemblies 60 in. or longer are not allowed per UL requirement
- For use with GLX Couplings [G44 Series] and Power Crimp Couplings
- Meets UL Standard #21, CAN/CGA-8.1-M86, NFPA 58, Section 8-3, 5
- Temperature Range: -40 Deg. F to +180 Deg. F (-40 Deg. C to +82 Deg. C)
- Warning: Do not convey LP Gas over +140 Deg. F (60 Deg. C)
- NOTE: Not recommended for residential, office buildings or as fuel line hose on compressed natural gas vehicles
- NOTE: Contact Denver Product Application (303)744-5070 for inspection and assembly testing information
- NOTE: For more detailed information, refer to the Gates Industrial Hose catalog 39496-000
Product Attributes
| Product Type | LP350X Hose |
| Industrial Description | 8LP350XX50FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 350 PS |
| Burst Pressure | 1750 PS |
| Temperature Rating | -40 Deg. F to +180 Deg. F (-40 Deg. C to +82 Deg. C) |
| Length | 50 FT |
| 9941 | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .91 IN |
| 9879 | 5 IN |
| Tube Description | Nitrile - Type C |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Braided, High Tensile Synthetic Textile Cord |
| Cover Material | Perforated Neoprene |
| Cover Color | Black |
| Cover Type | Type A - Black Perforated Neoprene |
| 9856 | GLX |
| 9453 | N/A |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053498370 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
