Gates 85488 - EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$1,25149
MSRP: $2,035.17
Save: $783.68
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

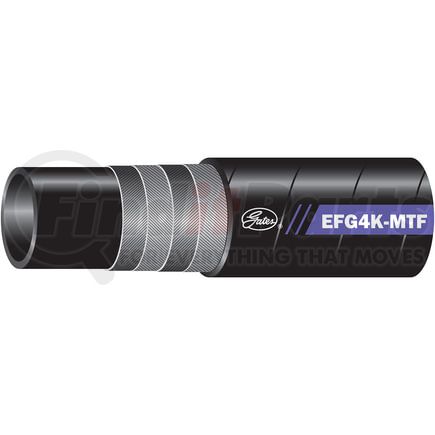

EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Product Type | EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover |
| Industrial Description | 20EFG4K-MTFX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 4000 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 25 FT |
| Dash Size | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.85 IN |
| Bend Radius | 8.2 IN |
| Tube Description | Black, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MGS, Stainless Steel S |
| SAE Standard | 100R12 |
| EN Standard | 857 R12 |
| ISO Standard | 18753 Grade D, 3862 Type R12 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | US |
| UPC | 00072053506044 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
