(888) 312-8812 Login SignupGATES 70839 EFG6K Spiral Wire Hose - SAE 100R15
Tap to view 1 more
$6549
Limited availability at this price!
In Stock
Get it by Friday, Jun 12
GATES 70839 Part Description
Manufacturer
Product Description

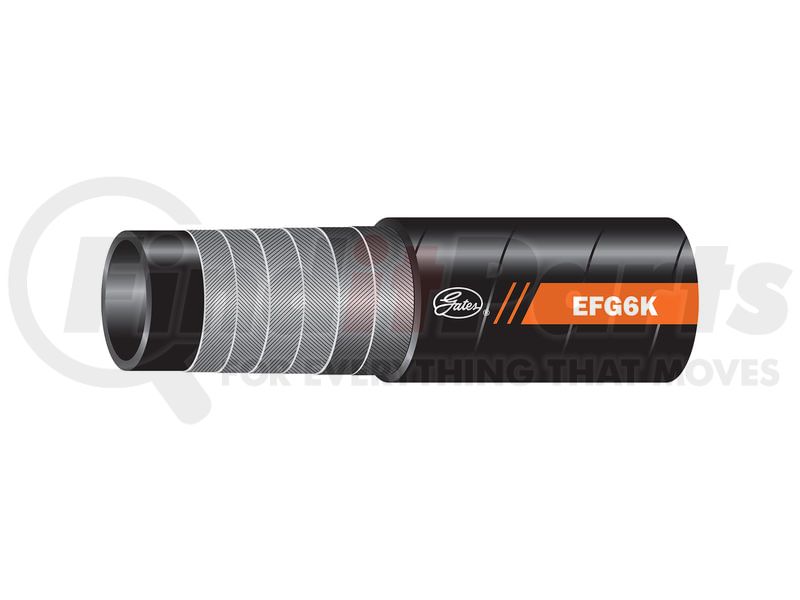

EFG6K Spiral Wire Hose - SAE 100R15
Features & Benefits
- Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
GATES 70839 Specifications
Product Attributes
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Industrial Description | 12EFG6KXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 100 FT |
| Dash Size | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.24 IN |
| Bend Radius | 4.7 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| SAE Standard | 100R15 |
| EN Standard | 856 4SP |
| ISO Standard | 3862 Type R15 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | S |
| UPC | 00072053631265 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70839 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC254-12, GH506-12 |
| ContiTech | SR15-12 |
| Dayco | HT612, N312 |
| Eaton | EC600-12 |
| Goodyear | G4SH-12X100CL, G4SP-12X100CL, G4SP12X100, GR15-12X100CL |
| N/A | 4SP12, HSH12A, 04029629, FLEXOR 4SH - FLEXOR 4SH ECOLINE, 5150-12 |
| NAPA | 70839, 4651-0363 |
| Parker | 731-12 |
| Weatherhead | H43012100, H46412100, H48512-100, H48712-150, H46412, H48512100, H850-12, H43012-100 |
