(888) 312-8812 Login SignupGATES 70837 50 ft. EFG6K Spiral Wire Hydraulic Hose, 1-1/4" ID x 1.97" OD, 6000 psi Max WP
Tap to view 1 more
$15699
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 28
GATES 70837 Part Description
Manufacturer
Product Description

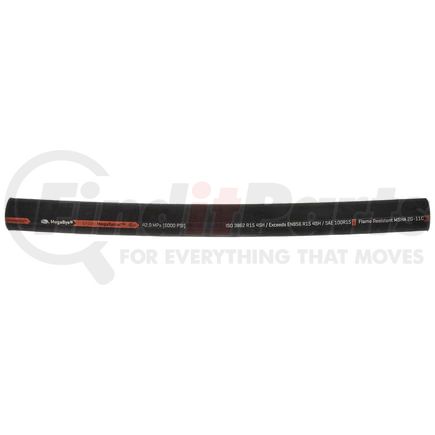

Hydraulic Hose - EFG6K Spiral, SAE 100R15, 1.25" ID, 1.97" OD
Features & Benefits
- Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
GATES 70837 Specifications
Product Attributes
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Industrial Description | 20EFG6KXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 50 FT |
| Dash Size | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.97 IN |
| Bend Radius | 8.2 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| SAE Standard | 100R15 |
| EN Standard | 856 4SH |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053543537 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70837 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC606-20, GH506-20 |
| Dayco | N220 |
| Eaton | EC600-20 |
| Goodyear | G4SH-20X100CL, GR15-20X100CL |
| N/A | H1520D, 04029631, 5150-20 |
| NAPA | 70837 |
| Parker | 797-20 |
| Weatherhead | H48520100, H48520150, H48720-150, H48720150, H850-20 |
