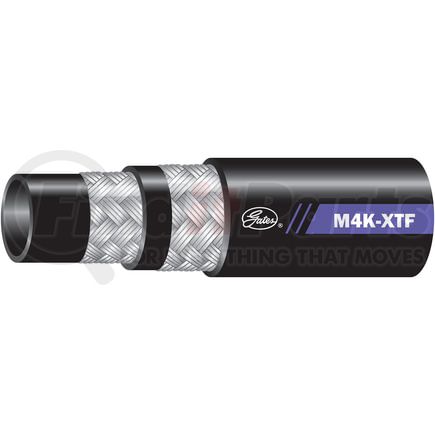

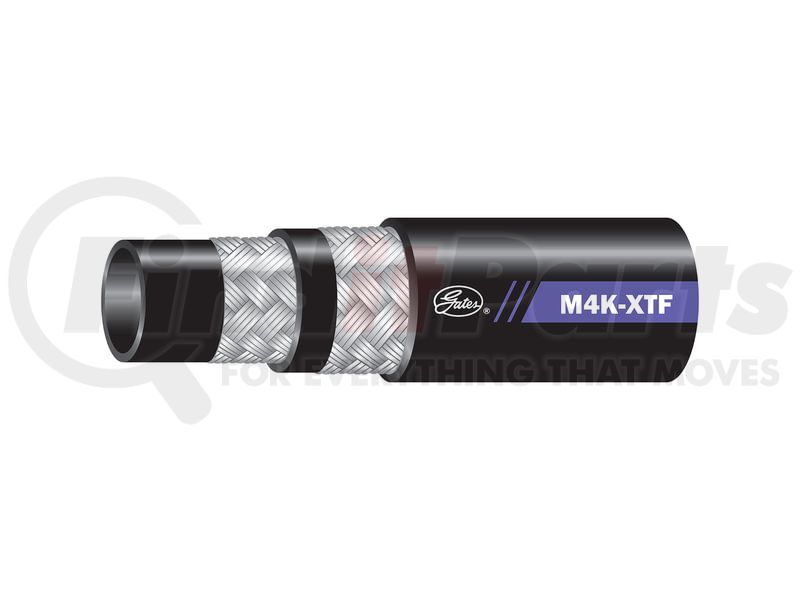

GATES 70696 Global M4K Mega4000 Hose - SAE 100R19 - XtraTuff Cover

Name: Gates 70696 Global M4K Mega4000 Hose - SAE 100R19 - XtraTuff Cover
SKU: 70696
Price: 14.22 USD
Availability: OutOfStock

$14.22

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

GATES 70696 Part Description

Global M4K Mega4000 Hose - SAE 100R19 - XtraTuff Cover

For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series] or Stainless Steel Braid Couplings [G17 Series]
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Tested to industry-leading 600,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)

Product Type	Global M4K Mega4000 Hose - SAE 100R19 - XtraTuff Cover
Industrial Description	10M4K-XTFXREEL
Type	Hydraulic Hose
Hose Pressure Description	High Pressure
Maximum Working Pressure	4000 PS
Burst Pressure	16000 PS
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Length	220 FT
Dash Size	10
Inside Diameter	.625 IN
Outside Diameter	.99 IN
Bend Radius	3 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Two Braids, High-Tensile Steel Wire
Cover Material	Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Cover Type	Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover
Cover Color	Black
Coupling Recommendation	GlobalSpiral, MegaCrimp
SAE Standard	100R19
EN Standard	N/A
ISO Standard	18752 Grade B, 11237 R19
