GATES 70674 Part Description
Manufacturer
Product Description

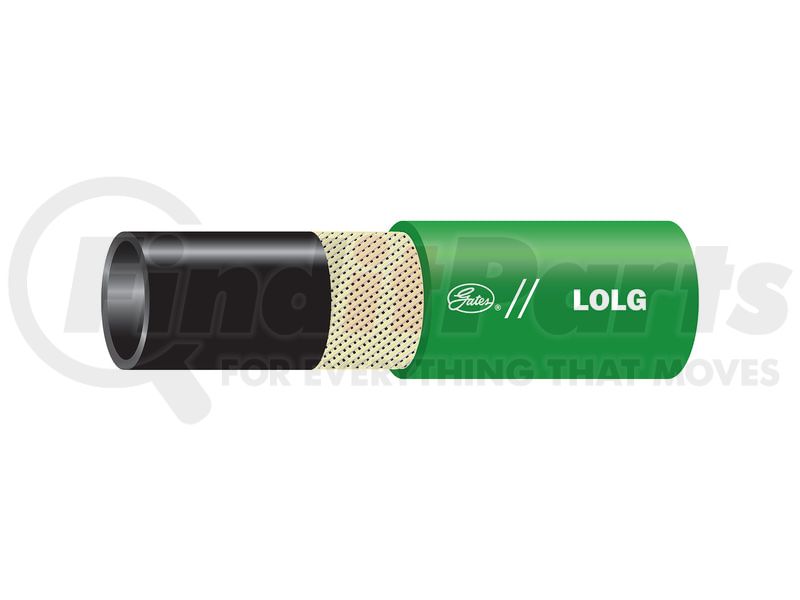

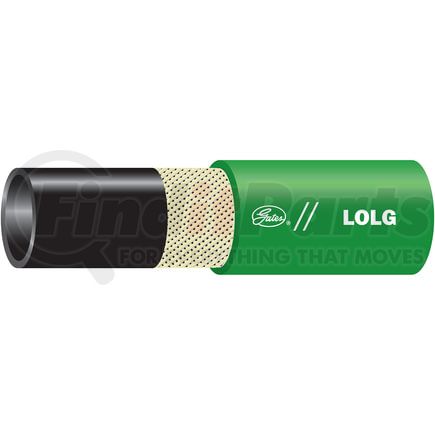

LOL Plus Lock-On Hose
Features & Benefits
- For use with Field Attachable LOC Couplings [G36 Series], GLX Couplings [G44 Series] and G37 single bead and G38 barbed fittings with clamp
- Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC)
- Black cover only meets Flame Resistance Acceptance Designation MSHA 2G
- Temperatures Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: to +160 Deg. F (+71 Deg. C)
GATES 70674 Specifications
Product Attributes
| Product Type | LOL Plus Lock-On Hose |
| Industrial Description | 8LOLGXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 300 PS |
| Burst Pressure | 1200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F, to +160 Deg. F (Air) |
| Length | 300 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .77 IN |
| Bend Radius | 5 IN |
| Vacuum Rating | 28 INHG |
| Tube Description | Black, Highly Heat & Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Oil & Abrasion Resistant |
| Cover Color | Green |
| Coupling Recommendation | Field Attachable LOC, GLP, GLX |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053228304 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70674 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | IGGRN08X500, UGGRN08X500 |
| N/A | 04030359 |
| NAPA | 70674 |
| Parker | 801-8-GRN-BX, 801-8-GRN-RL |
| Weatherhead | H20108GN250R, H20108GN-250R |
