GATES 70136 Part Description
GATES 70136 Specifications
Product Attributes

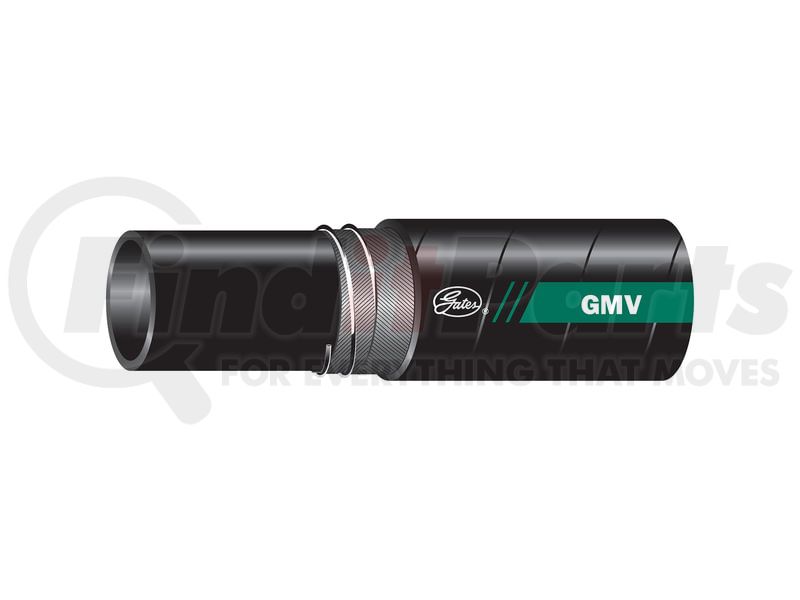

| Product Type | GMV Global MegaVac Return Line & Suction Hose |
| Industrial Description | 24GMVX100FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 162 PS |
| Burst Pressure | 648 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) |
| Length | 100 FT |
| Dash Size | 24 |
| Inside Diameter | 1.5 IN |
| Outside Diameter | 1.95 IN |
| Bend Radius | 5 IN |
| Vacuum Rating | 25 INHG |
| Tube Description | Black, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Double Spiral Textile w/ Helical Spiral-Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GL, GlobalSpiral Plus |
| SAE Standard | 100R4 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | N |
| UPC | 00072053318043 |
| VMRS Code | 059032029 |
GATES 70136 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC619-24, 2661-24 |
| Goodyear | GR4-24X100, GR4-24X100CL, HR4-24X100 |
| N/A | 04030254 |
| NAPA | 70136 |
| Parker | 811-24, 811HT-24, 881-24 |
| Weatherhead | H03924100 |
