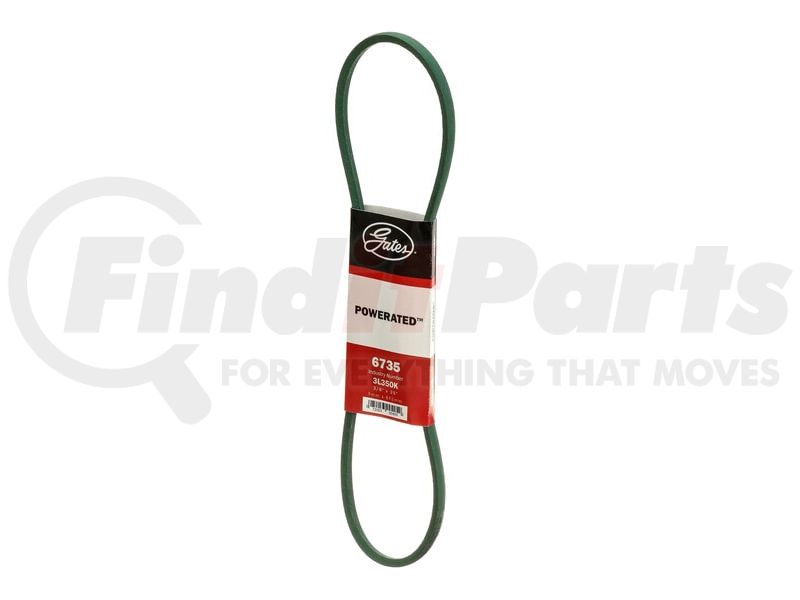

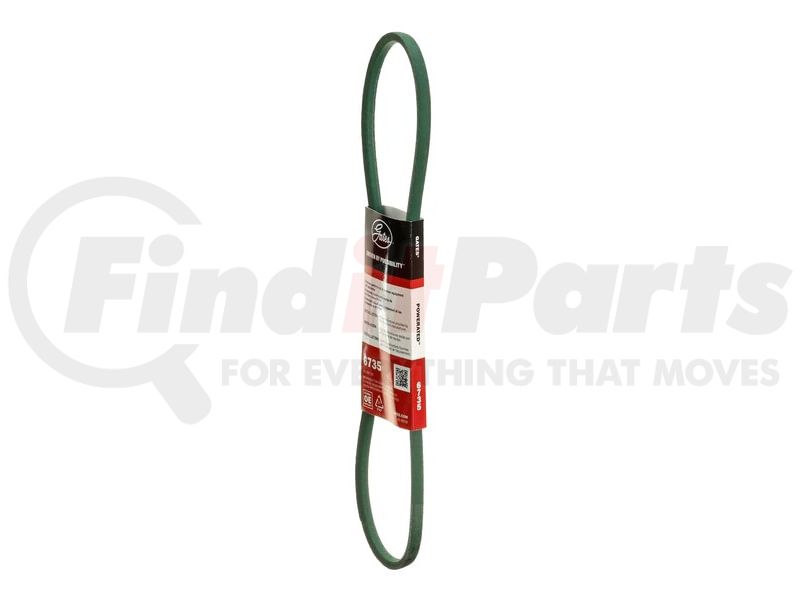

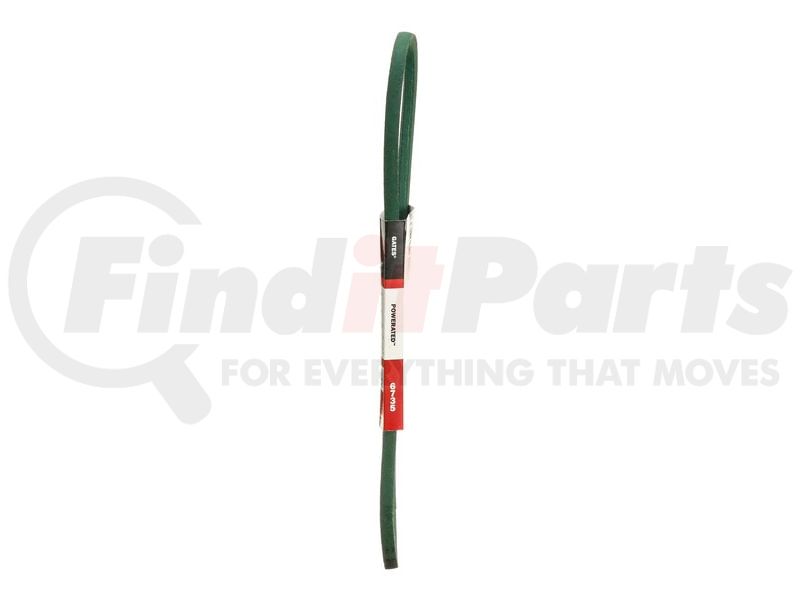

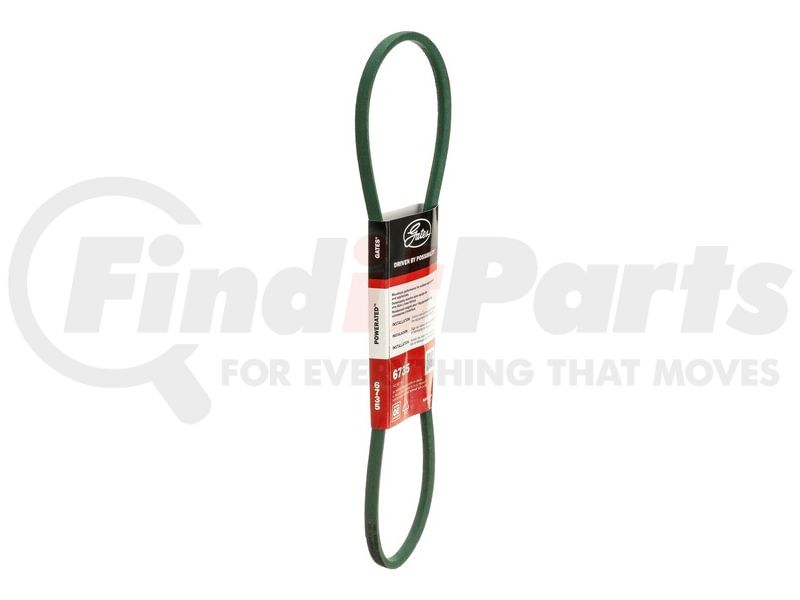

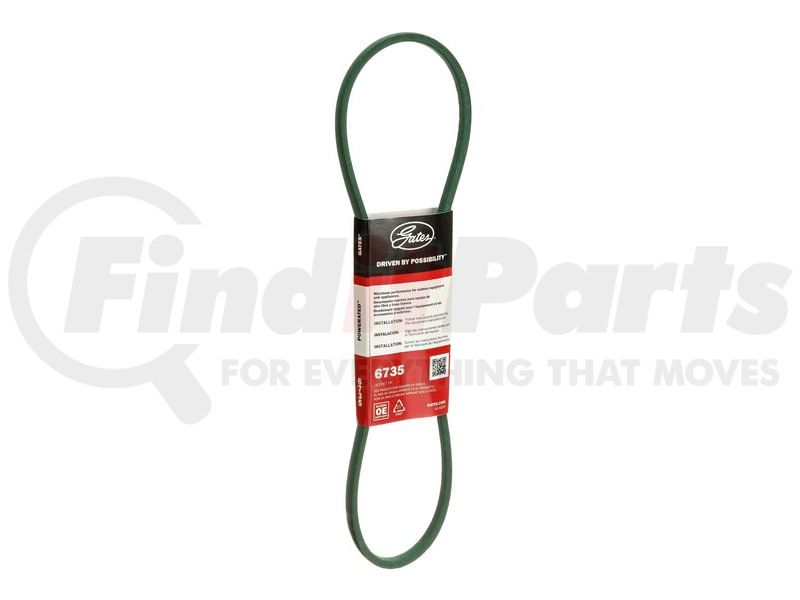

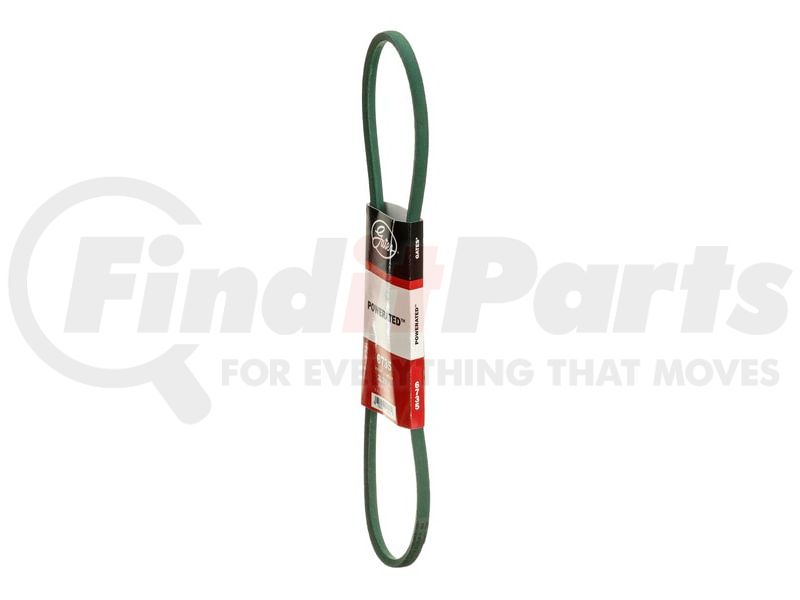

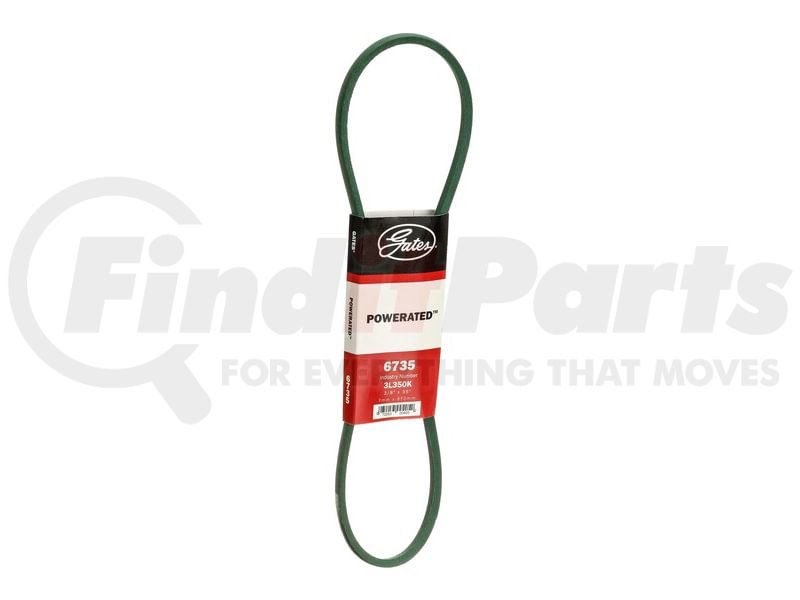

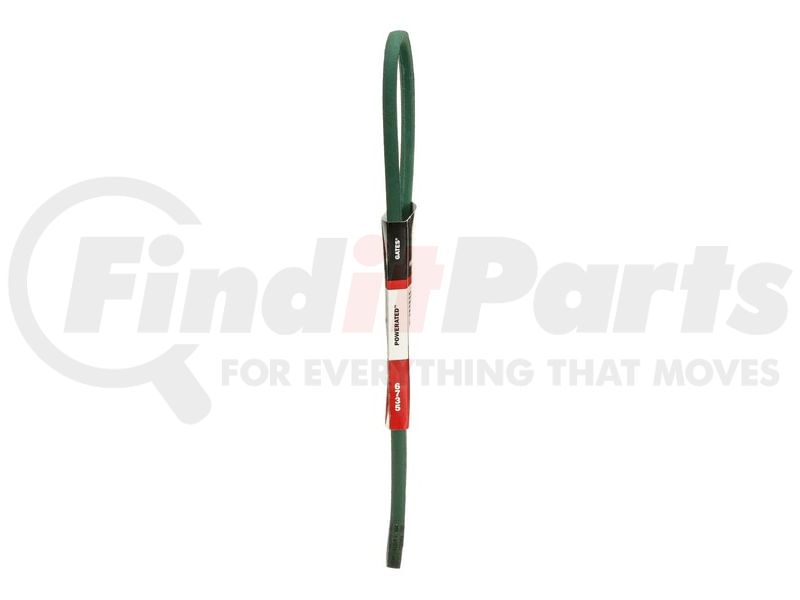

(888) 312-8812 Login SignupGATES 6735 PoweRated FHP Medium Horse-Power V-Belt
Tap to view 2 more
$1649
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8

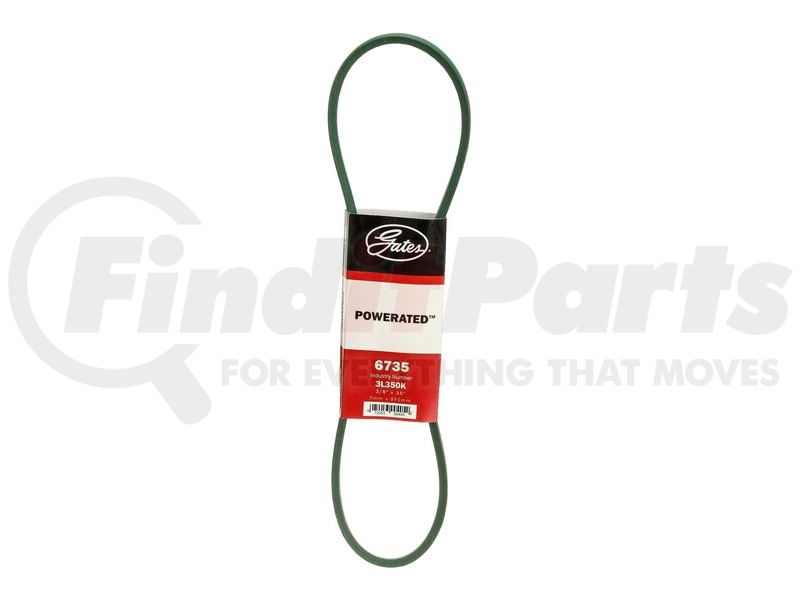

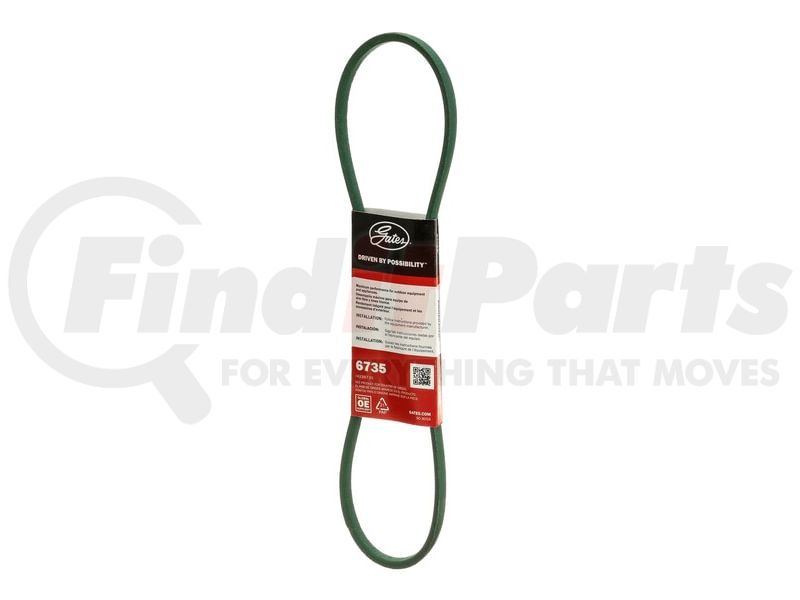

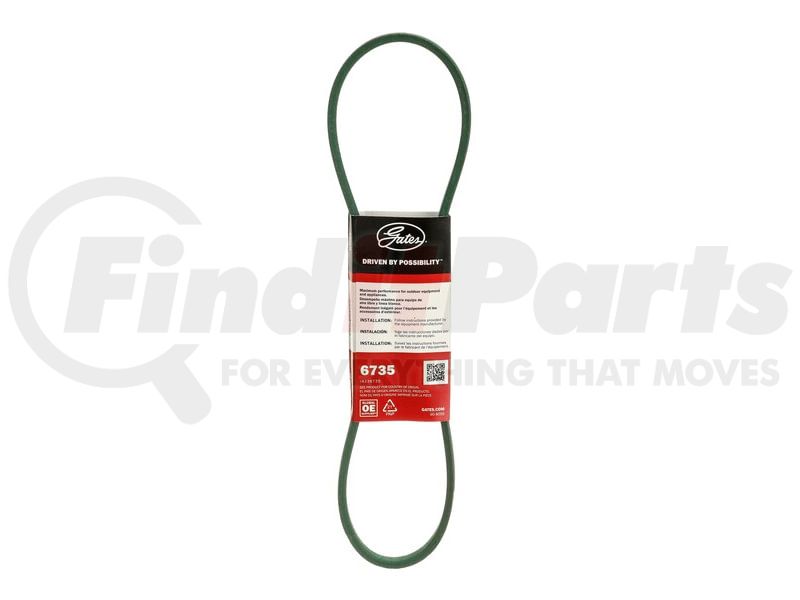

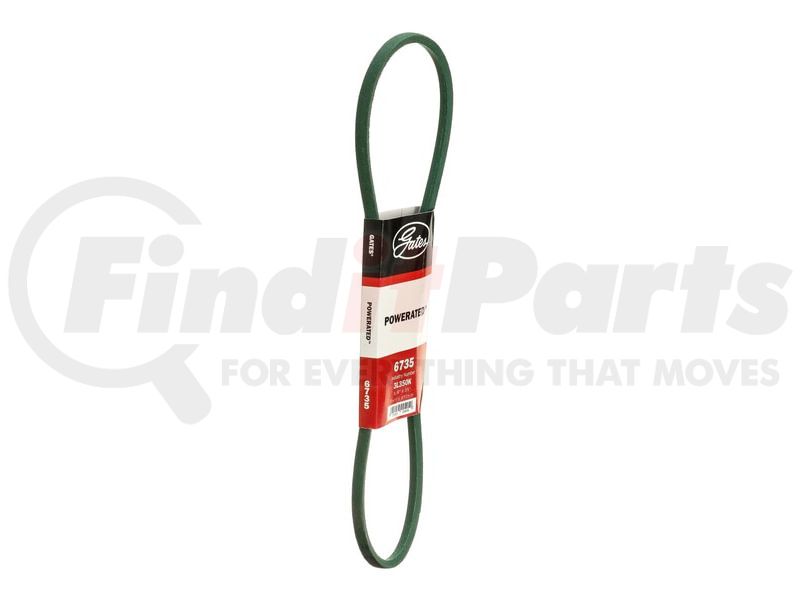

GATES 6735 Part Description
Manufacturer
Product Description
PoweRated FHP Medium Horse-Power V-Belt
Application Summary
Aircap, AP462, , Belt
Features & Benefits
- Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
- Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- Note: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts
GATES 6735 Specifications
Product Attributes
| Type | FHP Medium Horse-Power V-Belt |
| Cross Section Designation | 3L |
| Angle | 38 |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 35 in |
| Effective Length | 34.9 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Top Width | 10 mm |
| Outside Circumference | 889 mm |
| Effective Length | 886 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053004052 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 6735 Part Interchanges
| Brand | Part Number |
|---|---|
| Mopar | B3L-350 |
| Murray | 37X102, 37X84, 37X99, 740009, 740027 |
| ACDelco | 3L350, 3L350P |
| Dayco | 0M035, 3L350, 38X350, L335, P335 |
| BF Goodrich | 0350 |
| Blackstone | T2048 |
| General Electric | C4A125, K5705475AF19 |
| Goodall | W00632 |
| Prime-Line | 7-3H350 |
| CARQUEST | 1350, 6735 |
| Carquest | 6588BR |
| Silver Streak | 75-192, 75-635, DB3L350, 75-083, 75-335 |
| Aircap | 644 |
| Ariens | 07200101, 07200111, 072112, 72112 |
| Atwater Strong | 917 |
| Bando | M35 |
| Bendix Appliance | 14249, 904023, E466 |
| Bolens | 1733805, 1735996, 1742476, 1746379 |
| Browning Manufacturing | 0335 |
| Case Tractor | A70205 |
| Charles Machine | 170029 |
| Food Machine | 1894272 |
| Franklin Manufacturing | A2164, A2165 |
| Frigidaire | 639858 |
| Gambles | 670759 |
| Honda | 074313, 101316, 22431-VG3-N01, 22431723772, 23161952771, 23161960771 |
| John Deere | LG38350, TY4360, M118007, PT10865, PT11877 |
| Jacobsen | J1350, 343031 |
| Lawn Boy | 603682 |
| Montgomery Ward | 1008306, L19P21290 |
| MTD Products | 754-04176A, 75404176, 954-04176A, 95404176, 7540356, 7540430, 7540430A, 7540430AC, 7540431, 9540430, 9540430A, 9540431 |
| Noma | 325890, 53170 |
| Ransomes | A460880 |
| Rotary Lifts | 12-10090, 12-5018, 12-7440, 123718 |
| Sears | 182212, 510271, 511246, STD303350 |
| Simplicity | 1677098, 1715127 |
| Stens | 265-068, 265-631, 265-672, 265-790, 265-809, 238-035, 265-273, 265-694, 265-816, 266-022, 266-221 |
| Sunbeam | 067500146 |
| Thermoid | 3H350 |
| Toro | 21950, 27167, 715380, 715381, 94-8812, 409440, 623900, 67-4410, 70530, 912258 |
| Wheel Horse | 1593 |
| Husqvarna | 532182212, 601001762, 421527, 532421527 |
| Magna | 513465 |
| Goodyear | 3L350, 73350, FO35, 83350 |
| NAPA Belts/Hose | 3L350, 6588BR, 3L350W |
| Billy Goat | 840066 |
| Durkee-Atwood | 38-350, XDV38-350 |
| FMC | 611119 |
| Gilmer | 2350 |
| Grainger | 3L350 |
| Gravely | 10860P1 |
| Huffman | 7917B |
| Locke | 3592 |
| MBL Three Stars | 3LK350 |
| Monitor | 134 |
| Mono | G1608 |
| Oregon | 15-054, 75-192, 75-083, 75-265, 75-335, 75-684, 75-918, 775-033, 15-648, 75-158, 15-224 |
| Power Lawnmower Part | 109-025 |
| Reliance Electric | 108170 |
| Sensation | BT10, BT11 |
| Sunbrand | 1350T707 |
| Sund | T707 |
| Universal Sewing | 13675 |
| <Unknown> | 10279, 105310, 106555, 1213, 2643335, 284423, 34421D6, 42699, 4928022, 5622471, 59423, 600118, 803904, 85010, 90755, B16035, C4A124, C4A90, J120, K81023622, KK5705475AR19, P83457, U27, 001190300, 150735, 296499, 341067, 64TR134, 774015, 94021002, SA740 |
| L Series | 3L350 |
| Metric | 9R890, 9RL890 |
