(888) 312-8812 Login SignupGATES 6717 PoweRated FHP Medium Horse-Power V-Belt
Tap to view 2 more
$2299
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
GATES 6717 Part Description
Manufacturer
Product Description

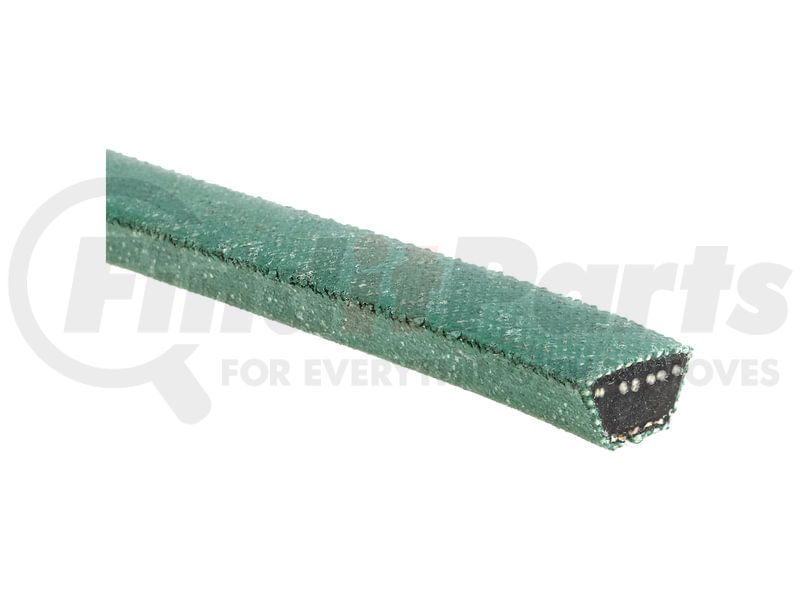

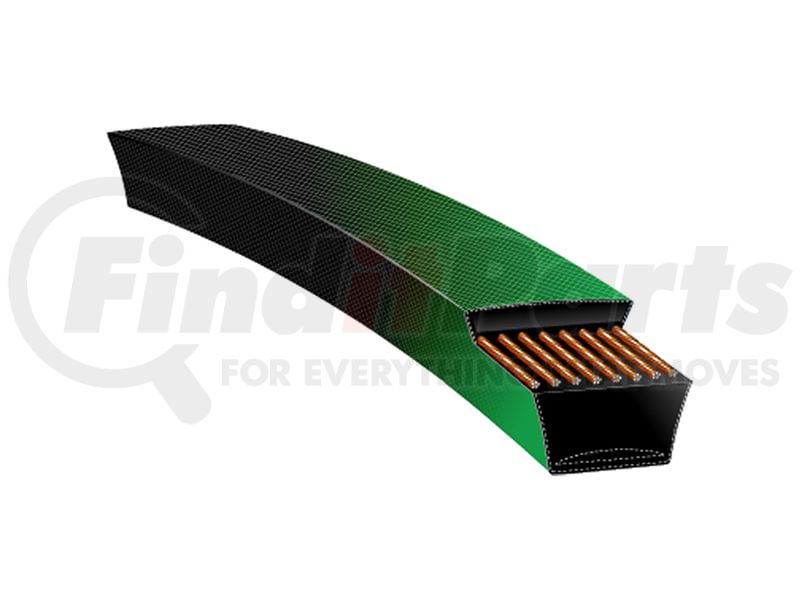

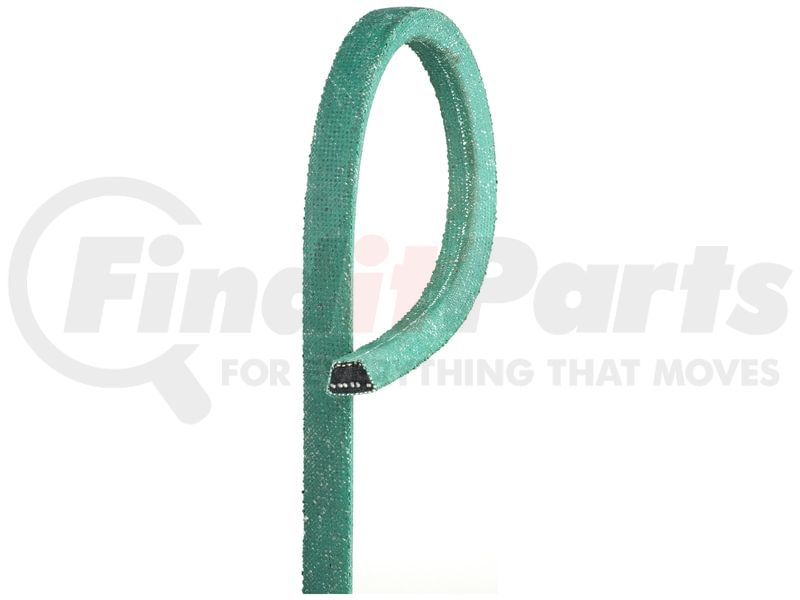

PoweRated FHP Medium Horse-Power V-Belt
Application Summary
Jacobsen, 24" S.P., , Traction
Features & Benefits
- Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
- Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- Note: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts
GATES 6717 Specifications
Product Attributes
| Type | FHP Medium Horse-Power V-Belt |
| Cross Section Designation | 3L |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 17 in |
| Effective Length | 16.9 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Top Width | 10 mm |
| Outside Circumference | 432 mm |
| Effective Length | 429 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053003871 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 6717 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 14913, 271227P, 40448, D14913, KK5705475AR1, SP3 |
| ACDelco | 3L170, 3L170P |
| Apex Hose/Spec | 47187 |
| BF Goodrich | 0170 |
| Browning Manufacturing | 0155 |
| CARQUEST | 1170, 6717 |
| CONTINENTAL AG | 83170 |
| Dayco | 0M017, 3L170, 38X170, L317 |
| Dumore Co | R4290017 |
| Durkee-Atwood | 38-170, XDV38-170 |
| General Electric | K5705475AF1 |
| Gilmer | 2170 |
| Goodyear | 3L170, 73170, FO17, 83170, 3LK170 |
| Grainger | 3L170 |
| Jacobsen | 309360 |
| Kelvinator | 1030762 |
| L Series | 3L170 |
| Metric | 9R430, 9RL430 |
| Mopar | B3L-170 |
| NAPA Belts/Hose | 3L170, 3L170W, 1170, 6717 |
| Oregon | 75-617 |
| Power Lawnmower Part | 109-003 |
| Ransomes | 158017 |
| Reliance Electric | 108152 |
| Rotary Lifts | 12-5000, 123700 |
| Sears | STD303170 |
| Silver Streak | 75-617, DB3L170 |
| Stanley Vemco | 210145 |
| Sunbeam | 4920568 |
| Thermoid | 3H170 |
| Toro | 27175, 31183 |
| U.S. | 8306 |
| U.S. Electric Motor | 37276A |
| White | 33R84 |
| X Series | 6X170 |
| YardMan | 165110 |
