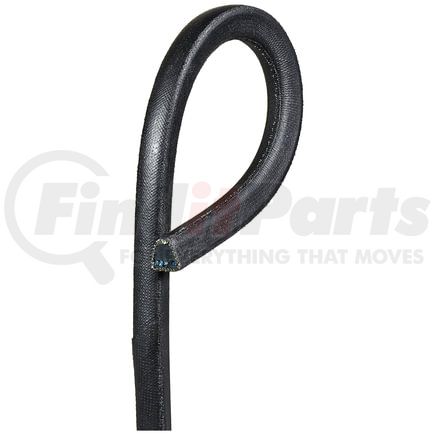

(888) 312-8812 Login SignupGATES 3V560 Super HC Narrow Section Wrapped V-Belt
Tap to view 2 more
$2999
Limited availability at this price!
In Stock
Get it by Thursday, Jun 11
GATES 3V560 Part Description
Manufacturer
Product Description
Super HC Narrow Section Wrapped V-Belt
Application Summary
Gilson, 52032, , Deck
Features & Benefits
- Up to 300 percent capacity increase over classical belts
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts
GATES 3V560 Specifications
Product Attributes
| Type | Narrow Section Wrapped V-Belt |
| Cross Section Designation | 3V |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 56 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | Neoprene |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 1422 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053267570 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3V560 Cross References
| Brand | Part Number |
|---|---|
| 93326560 | |
| ACDelco | 3V560 |
| AMF Inc Bowling | 090007009 |
| Alliance Truck Parts | GT3V560 |
| American Lincoln | 15951, 20003442 |
| CARQUEST | 3V560 |
| CONTINENTAL AG | 3V560 |
| Carlisle | CR400407 |
| Carrier Transicold | 500108601 |
| Dayco | 12T560, 3V560, 425321 |
| GOODYEAR BELTS | 3V560 |
| Gilson | 23472 |
| Goodyear | 3V560, 79560 |
| Harding Bros | SGA000334608 |
| Laesser | 37560 |
| Laser | 87501020 |
| N/A | 41006240, 3V560, R3V560 |
| NAPA | 3V560, 5284 |
| NAPA Belts/Hose | 3V560 |
| Owatonna | 62032187 |
| PIX | A-3V560 |
| Rotary Lifts | 12671 |
| Tennant | 44154 |
| Thermo-King | 071059, 2020B40H78, 2045B55G42, 2045B55H42, 780346, 780508, 78343, 78346, 9124C42H22 |
| Yazoo | 205356 |
