(888) 312-8812 Login SignupGATES 3690 Truflex FHP Low Horse-Power V-Belt
Tap to view 2 more
$2549
Limited availability at this price!
In Stock
Get it by Monday, Feb 2
GATES 3690 Part Description
Manufacturer
Product Description

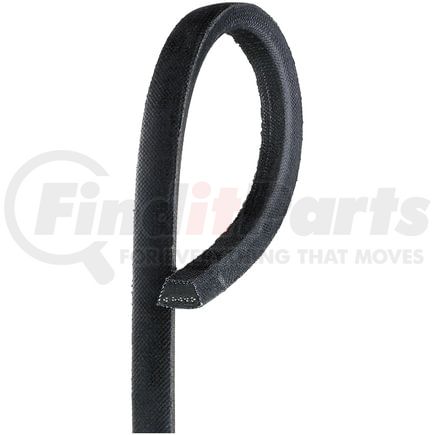

Truflex FHP Low Horse-Power V-Belt
Application Summary
Dynamark, 1280-00, , Blade
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 3690 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 5L |
| Angle | 37 |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 69 in |
| Effective Length | 68.93 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1753 mm |
| Effective Length | 1751 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053007510 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3690 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 0003746, 1045689, 254545, 284363, 284364, 301227, 42350, 4545, 5H57965A690, 90763, DA429, KR20BC069, R10840 |
| ACDelco | 5L690 |
| Ajax Iron Works | BM10205A |
| American Machine/Foundry | 39456 |
| BF Goodrich | 2690 |
| Browning Manufacturing | 2660 |
| CARQUEST | 3690 |
| CONTINENTAL AG | 85690 |
| Campbell Hausfeld | BT0051, BT005100AV, BT51 |
| Dayco | 2M069, 5L690 |
| General Electric | K5705475AE38 |
| Gilmer | 4690 |
| Goodyear | 75690 |
| Grainger | 5L690 |
| Jaeger | 30601227 |
| John Deere | LG58690 |
| L Series | 5L690 |
| Metric | 16R1755 |
| Mopar | B5L-690 |
| NAPA Belts/Hose | 5L690 |
| Oregon | 75-869 |
| PIX | A-5L690 |
| Power Lawnmower Part | 109-207 |
| Reliance Electric | 108125 |
| Rotary Lifts | 12-5196 |
| Silver Streak | 75-869, DB5L690 |
| Sunnen Products | LB690B |
| U.S. Government | 3030005284738, MS392435L690 |
GATES 3690 Customer Reviews
No reviews yet
Be the first to review this product!
GATES 3690 Questions & Answers
No questions yet
Be the first to ask a question about this product!
