GATES 3570 Part Description
Manufacturer
Product Description

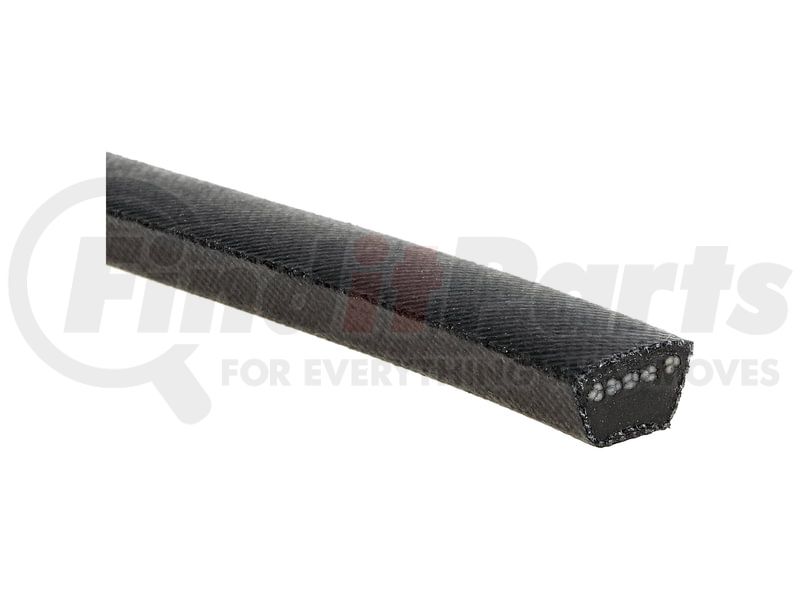

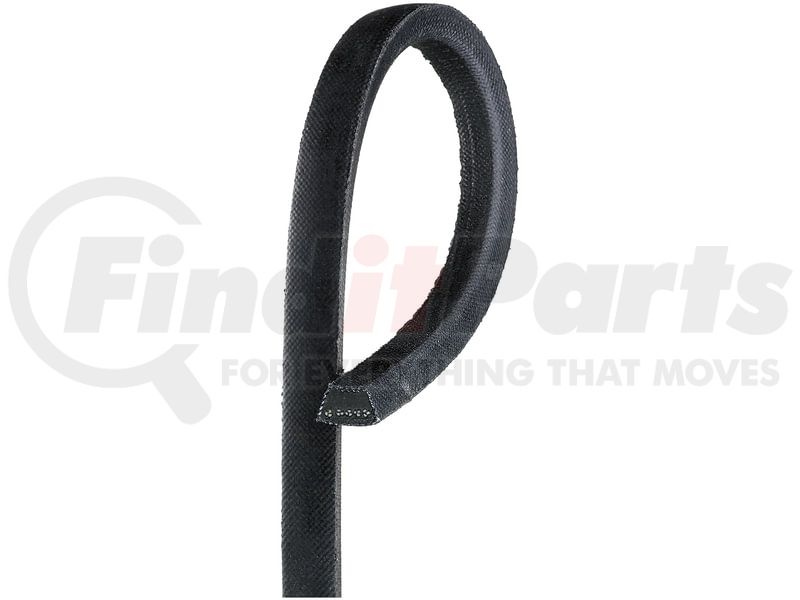

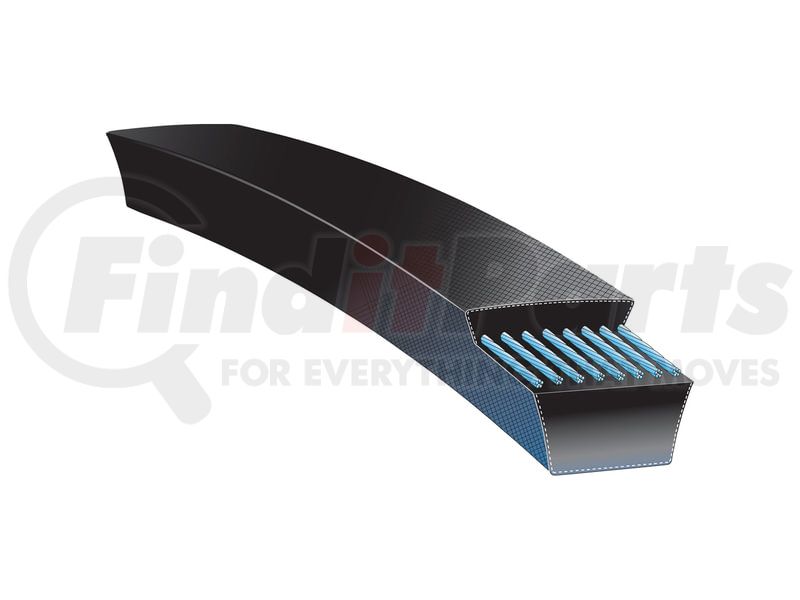

Truflex FHP Low Horse-Power V-Belt
Application Summary
Springfield, 3002H, , Belt
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 3570 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 5L |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 57 in |
| Effective Length | 56.74 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1448 mm |
| Effective Length | 1441 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053007381 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3570 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 105630, 18, 24857, 3661, 4255238, 5918, 5H57965A570, 661, 71940, 7873, B222B, C4A6, K81023649, R10828, V5377 |
| ACDelco | 5L570 |
| Alliance Truck Parts | GT3570 |
| American Lincoln | 20002151 |
| BF Goodrich | 2570 |
| Browning Manufacturing | 2540 |
| CARQUEST | 3570 |
| CONTINENTAL AG | 85570, 5L570 |
| Dayco | 2M057, 5L570 |
| Food Machine | 1108566 |
| General Electric | K5705475AE26 |
| Gilmer | 4570 |
| Goodyear | 5L570, 75570, FB57 |
| Grainger | 5L570 |
| International Harvester (IHC) | 13091CA |
| John Deere | LG58570 |
| L Series | 5L570 |
| Metric | 16R1450 |
| Mopar | B5L-570 |
| Myers | 5070A30 |
| NAPA Belts/Hose | 5L570, 3570 |
| Oregon | 75-857 |
| PIX | A-5L570 |
| Power Lawnmower Part | 109-195 |
| Reliance Electric | 108113 |
| Rotary Lifts | 12-5184 |
| Schramm Compressors | IHHJ9971 |
| Silver Streak | 75-857, DB5L570 |
| Springfield | 3317, 3513 |
| U.S. Government | 3030005284618, MS392435L570, 7092069 |
| X Series | 10X570 |
