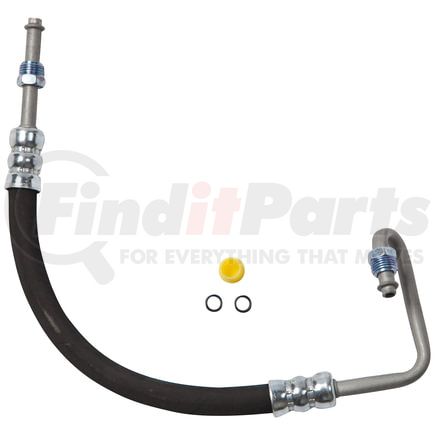

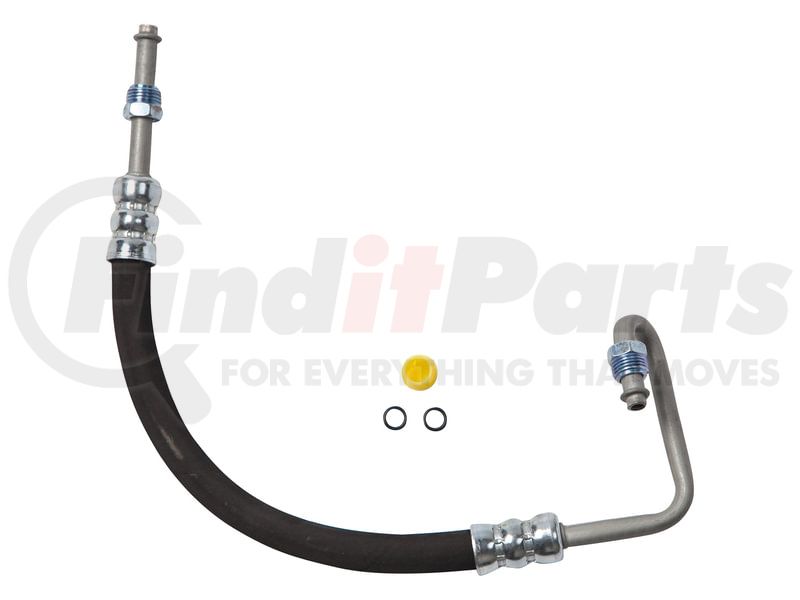

(888) 312-8812 Login SignupGATES 356200 Power Steering Pressure Line Hose Assembly
$30.83
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 356200 Part Description
Manufacturer
Product Description
Power Steering Pressure Line Hose Assembly
Application Summary
1986-1985 Chevrolet, S Series Pickup, 4-Cyl. 2.5 L, Pressure
Features & Benefits
- Extensive field examination and testing assure proper fit
- For passenger cars and light trucks
- General instructions are packed with every assembly
- Hoses and fittings are also available for tailor-made medium and heavy-duty truck applications
- Comes complete with factory-installed, pre-bent zinc-dichromate plated end fittings, bracketry, sensor ports, sheathing, bushings and grommets
- Exceeds SAE J2050 performance requirements. (Product Type 7741)
GATES 356200 Specifications
Product Attributes
| Grade Type | OE Performance |
| Length | 27.1875 IN |
| End Diameter | 16 MM |
| End 1 Type | Male O-Ring |
| End 2 Type | Male O-Ring |
| Fully Assembled Pressure & Return Set | N/A |
| Switch Port Included | No |
| SAE Standard | Exceeds SAE J188 specifications |
| Tube Material | Zinc Single Wall Steel |
| Sleeve Material | Anti Corrosion Steel |
| Mounting Brackets Included | No |
| Sleeve Included | No |
| Washer(s) Included | No |
| Bushing Included | No |
| Mounts Included | No |
| Retainer Clips Included | N/A |
| Mounting Position | Pump to Rack/Gear Box |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009320050 |
| Country of Origin (Primary) | TW |
| UPC | 00072053422696 |
| VMRS Code | 065007006 |
| UNSPSC | 40141764 |
GATES 356200 Cross References
| Brand | Part Number |
|---|---|
| 7T4Z13405BCP, 77410620 | |
| ACDelco | 36-356200 |
| Autoline | 5-689 |
| Carquest | 35620 |
| Continental Belt | 15069, 15152, 15513, 25152 |
| Edelmann | 71222, EP-1222 |
| Everco | 3-569, 3-903, 3-934, 66903, 66934, 66569 |
| Four Seasons | 110133, 110132 |
| General Motors | 7839733, 7841693, 7846465 |
| MOOG Chassis Products | M-689 |
| Moog | M-581 |
| NAPA | 35620, 7-1902, 7-2039, 7-2041, 7-3206 |
| OMEGA ENVIRONMENTAL TECHNOLOGIES | 689 |
| Omega | 689 |
| PLEWS | 71222 |
| Republic | 13031, 13250, 13274, 13030 |
| SunSong | 3402149 |
GATES 356200 Fits Vehicles
- Pontiac Firebird (1982-1986)
- GMC S15 (1985-1986)
- GMC S15 Jimmy (1985-1986)
- Chevrolet S10 Blazer (1985-1986)
- Chevrolet S10 (1985-1986)
- Chevrolet Camaro (1982-1986)
