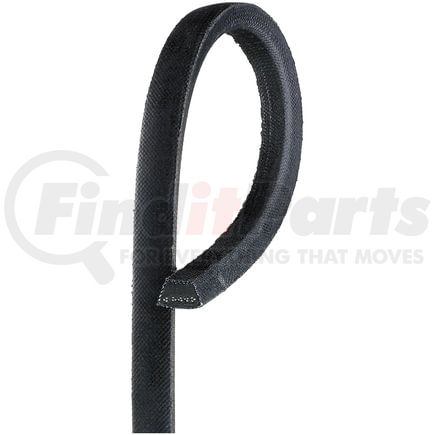

(888) 312-8812 Login SignupGATES 3520 Truflex FHP Low Horse-Power V-Belt
Tap to view 2 more
$2149
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 3
GATES 3520 Part Description
Manufacturer
Product Description
Truflex FHP Low Horse-Power V-Belt
Application Summary
Ace Hardware, 130-480, , Drive
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 3520 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 5L |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 52 in |
| Effective Length | 51.94 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1321 mm |
| Effective Length | 1319 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053007336 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3520 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 15075, 15156, 1628K, 1828K, 20264, 2052, 41678, 4552, 504252, 5H57965A520, C4A31, D165, K81023645, KR20BC052, P82891, PJ30, R10854, R6415, V3299 |
| ACDelco | 5L520 |
| BF Goodrich | 2520 |
| Brillion Iron | 2E405 |
| Browning Manufacturing | 2490 |
| CARQUEST | 3520 |
| CONTINENTAL AG | 5L520 |
| Campbell Hausfeld | BT0040, BT40 |
| Dayco | 2M052, 5L520 |
| General Electric | K5705475AE21, K5705475AH27 |
| Gilmer | 4520 |
| Gilson | 1409 |
| Goodyear | 5L520, 75520, FB52 |
| Grainger | 5L520 |
| Haban | 12580 |
| Jacobsen | 338157 |
| John Deere | LG58520, TY4440 |
| L Series | 5L520 |
| MTD Products | 7540147, 754147 |
| Manitowoc | 227008 |
| Metric | 16R1320 |
| Mopar | B5L-520 |
| NAPA Belts/Hose | 5L520 |
| New Holland | 117119, 86514567 |
| Oregon | 75-852 |
| PIX | A-5L520 |
| Power Lawnmower Part | 109-190 |
| Powermatic | 6077045 |
| Reliance Electric | 108108 |
| Rotary Lifts | 12-5179 |
| Silver Streak | 75-852, DB5L520 |
| U.S. Government | 3030005284623, MS392435L520 |
