(888) 312-8812 Login SignupGATES 2820 Truflex FHP Low Horse-Power V-Belt
Tap to view 2 more
$2149
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Jul 27
GATES 2820 Part Description
Manufacturer
Product Description

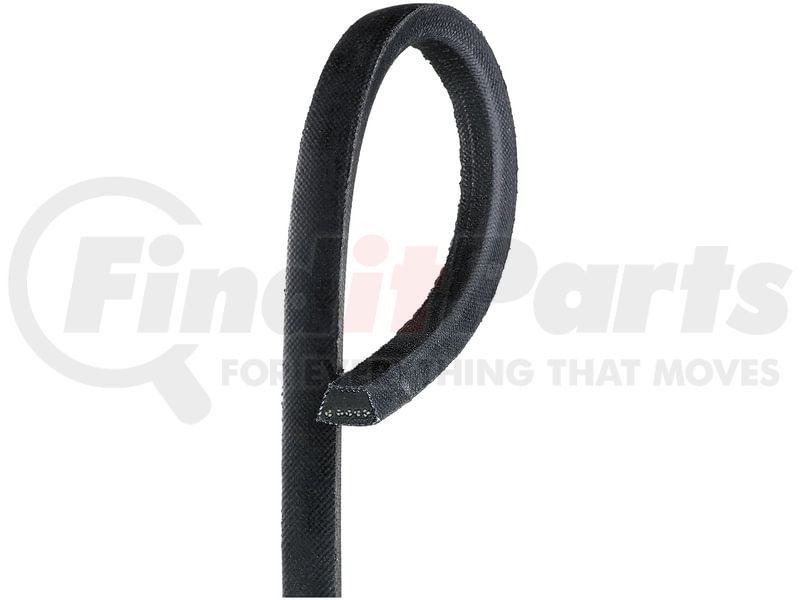

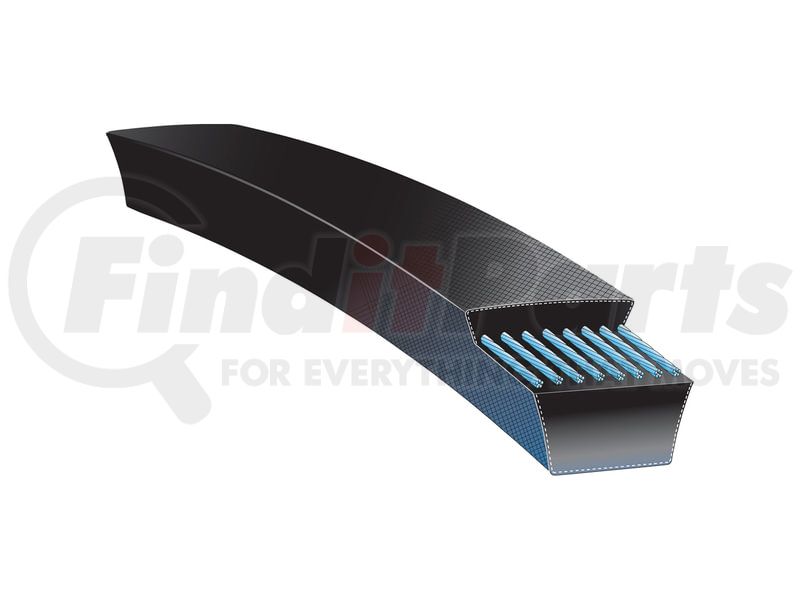

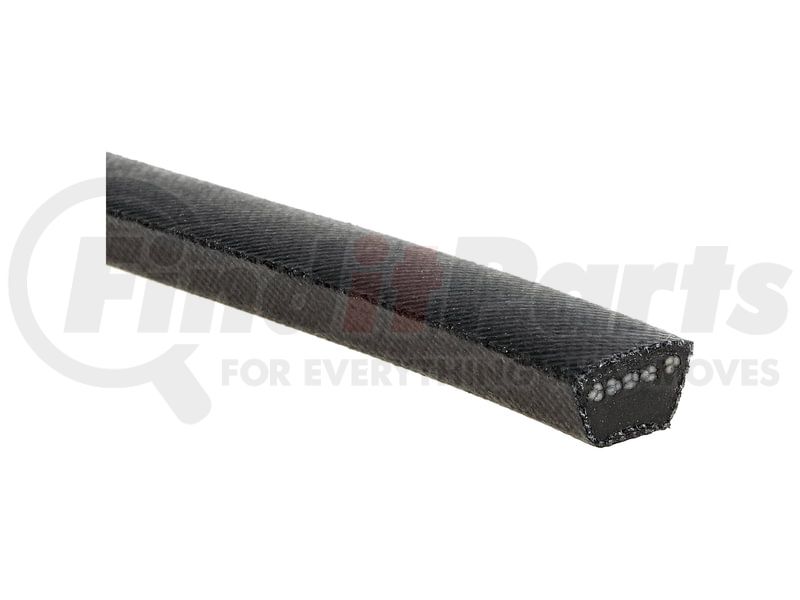

Truflex FHP Low Horse-Power V-Belt
Application Summary
Eska, Mark 26 (1601), , Blade
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 2820 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 4L |
| Angle | 38 |
| Strand Quantity | 1 |
| Top Width | .5 in |
| Outside Circumference | 82 in |
| Effective Length | 81.96 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 13 mm |
| Outside Circumference | 2083 mm |
| Effective Length | 2082 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053006834 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2820 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 101030, 1305316, 15019, 22566C, 285319, 3081, 5H57964A820, AF31038, B2171, C4A128, K24F, K810236344, PC292, R2031 |
| ACDelco | 4L820 |
| BF Goodrich | 1820 |
| Browning Manufacturing | 1800 |
| Bryant Mfg | 94047 |
| CARQUEST | 2820 |
| CONTINENTAL AG | 84820, 4L820 |
| Continental Belt | 4L820 |
| Dayco | 1M082, 4L820 |
| Demco | 6L109 |
| Eska | 80009 |
| General Electric | K5705475AG47, K5705475AJ39, K5705475AN59 |
| Gilmer | 3820 |
| Goodyear | 74820, FA82 |
| Grainger | 4L820 |
| John Deere | LG48820 |
| L Series | 4L820 |
| MTD Products | 9540186 |
| Magna | 503583 |
| Metric | 13R2080 |
| Mopar | B4L-820 |
| NAPA Belts/Hose | 4L820, 2820 |
| Oregon | 75-782 |
| PIX | A-4L820 |
| Power Lawnmower Part | 109-142 |
| Reliance Electric | 108065 |
| Rotary Lifts | 12-5115 |
| Silver Streak | 75-782, DB4L820 |
| U.S. Government | 3030005283840, MS392424L820 |
