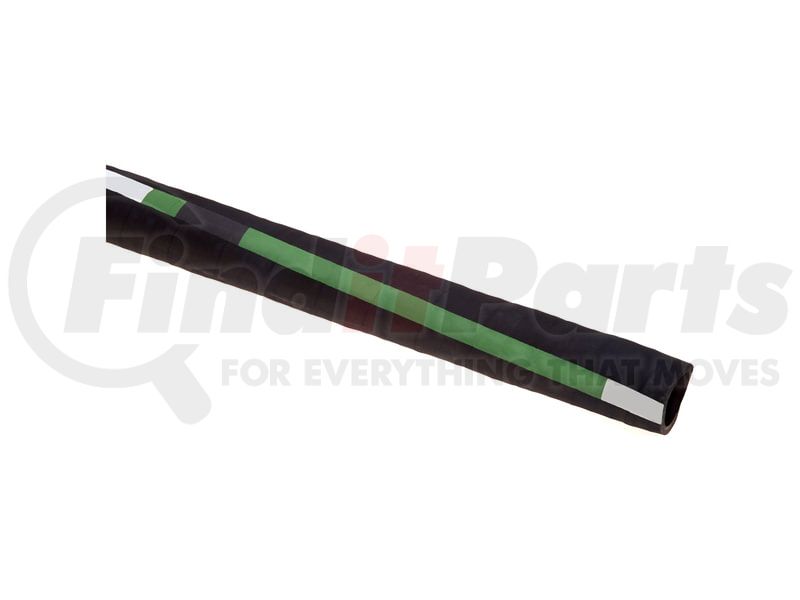

(888) 312-8812 Login SignupGATES 24930 Green Stripe Wire Inserted Straight Coolant Hose
Tap to view 2 more
$129.18
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 24930 Part Description
Manufacturer
Product Description

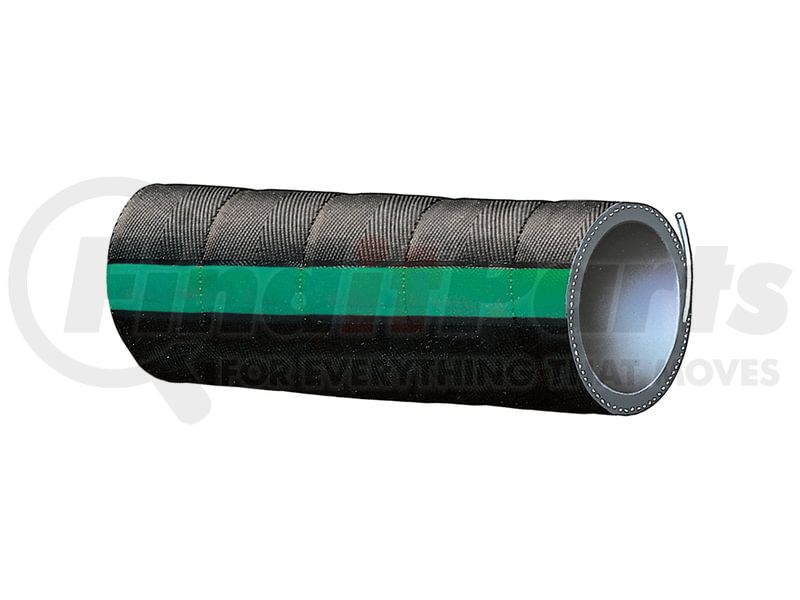

Green Stripe Wire Inserted Straight Coolant Hose
Application Summary
John Deere, 24, John Deere 3-Cyl. 152 Diesel, Lower - Eng. To Pipe
Features & Benefits
- Heavy-duty fabric reinforcement with helical carbon steel wire
- Engineered with compounds which resist electrochemical degradation
- Exceeds SAE 20R2 Type EC (Class D2 tube and cover) except in vacuum applications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Long spans must be supported every 3 feet
- Caution: Do not use for fuel or oil transfer applications
GATES 24930 Specifications
Product Attributes
| Centerline Length | 5 FT |
| End 1 Inside Diameter | 1.875 in |
| End 2 Inside Diameter | 1.875 in |
| Working Pressure | 60 PS |
| Vacuum Rating | 20 INHG |
| Bending Radius | 4.5 in |
| Construction | 1-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | 1.52 LM |
| Centerline Length | 60 IN |
| Centerline Length | 1524 MM |
| End 1 Inside Diameter | 48 MM |
| End 2 Inside Diameter | 48 MM |
| Bending Radius | 114 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | N |
| UPC | 00072053177480 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
