(888) 312-8812 Login SignupGATES 2295 Truflex FHP Low Horse-Power V-Belt
Tap to view 2 more
$999
Limited availability at this price!
In Stock
Get it by Thursday, Jun 11
GATES 2295 Part Description
Manufacturer
Product Description

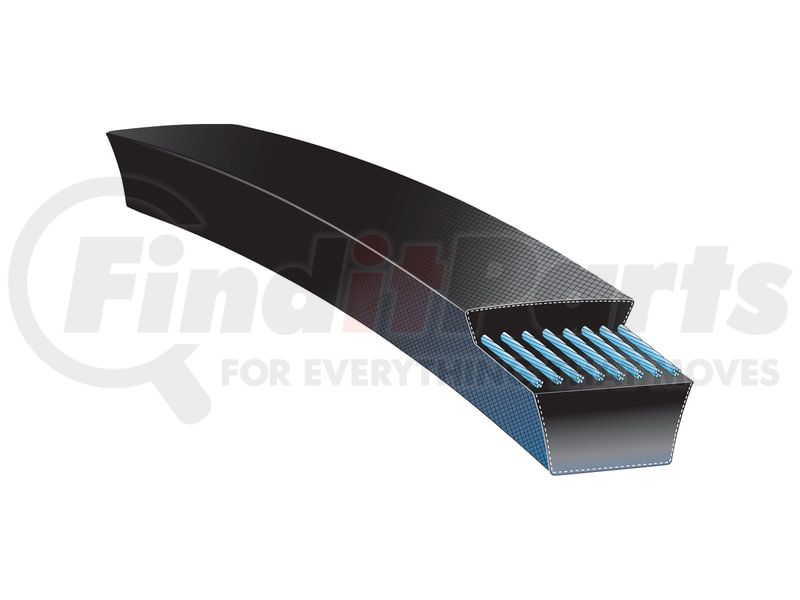

Truflex FHP Low Horse-Power V-Belt
Application Summary
Dynamark, 5380-00, , Secondary
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 2295 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 4L |
| Angle | 40 |
| Strand Quantity | 1 |
| Top Width | .5 in |
| Outside Circumference | 29.5 in |
| Effective Length | 29.16 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 13 mm |
| Outside Circumference | 749 mm |
| Effective Length | 741 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | S |
| UPC | 00072053002812 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2295 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 012131, 133918, 344947 |
| ACDelco | 4L295 |
| American Machine/Foundry | 24551 |
| CARQUEST | 2295 |
| Clarke Div | 46R8, 903767 |
| General Leisure | 530050035 |
| John Deere | M47150, M47159 |
| L Series | 4L293 |
| PIX | A-4L295 |
| Power Lawnmower Part | 109-080 |
| Prime-Line | 7-078059 |
| Tokheim | 118962, 4488 |
| Toro | 520320 |
| Westinghouse | Q12131 |
