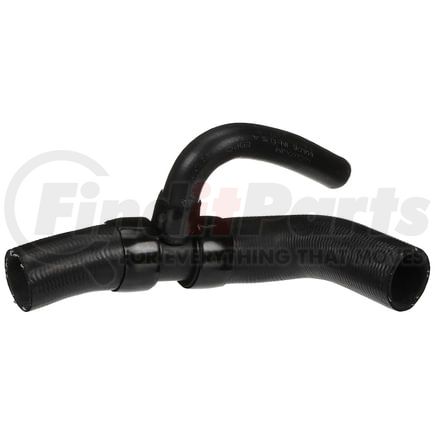

(888) 312-8812 Login SignupGATES 22369 Premium Modular Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 22369 Part Description
Manufacturer
Product Description
Premium Modular Coolant Hose
Application Summary
1996 Ford, Taurus, V-6 3.0 L, Lower - Rad. To Thermostat
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22369 Specifications
Product Attributes
| Centerline Length | 9.9 IN |
| Modular | Yes |
| Modular Components Included | Branch |
| Branch Quantity | 1 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.47 in |
| End 2 Inside Diameter | 1.47 in |
| End 3 Inside Diameter | .72 in |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 18 MM |
| End 1 Inside Diameter | 37 MM |
| End 2 Inside Diameter | 37 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053321487 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22369 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-3031 |
| ACDelco | 22394M |
| Carquest | 22369 |
| Continental Belt | 66272 |
| Ford | F5DE 8B273 CD, F6DZ 8286 B |
| Goodyear | 62840 |
| NAPA Belts/Hose | 9002 |
GATES 22369 Fits Vehicles
- Ford Sable (1996)
- Mercury Sable (1996)
- Ford Taurus (1996)
GATES 22369 Cross References
We have 1 alternatives for the 22369 by GATES:
