(888) 312-8812 Login SignupGATES 22078 Premium Molded Coolant Hose
$5249
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13

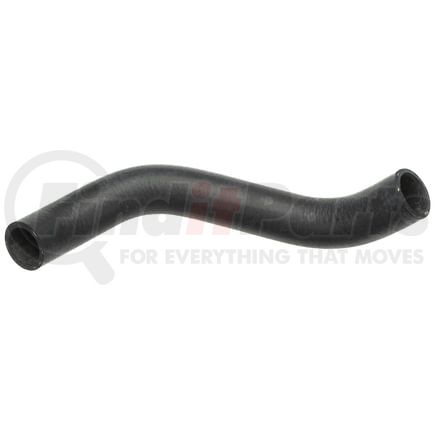

GATES 22078 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1996-1994 Chevrolet, Caprice, V-8 5.7 L, Lower - Pipe To Rad.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22078 Specifications
Product Attributes
| Centerline Length | 14.2 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.29 in |
| End 2 Inside Diameter | 1.29 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 361 MM |
| End 1 Inside Diameter | 33 MM |
| End 2 Inside Diameter | 33 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053114577 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22078 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-3364 |
| ACDelco | 22292M |
| Carquest | 22078 |
| General Motors | 10237349 |
| Goodyear | 62505 |
| NAPA Belts/Hose | 8759 |
| Continental Belt | C92515 |
| Duralast | C92515 |
GATES 22078 Fits Vehicles
- Chevrolet Commercial Chassis (1994)
- Chevrolet Impala (1994-1996)
- Chevrolet Caprice (1994-1996)
- Cadillac Commercial Chassis (1994-1996)
- Cadillac Fleetwood (1994-1996)
- Buick Roadmaster (1994-1996)
- Buick Commercial Chassis (1994-1996)
GATES 22078 Cross References
We have 1 alternatives for the 22078 by GATES:
