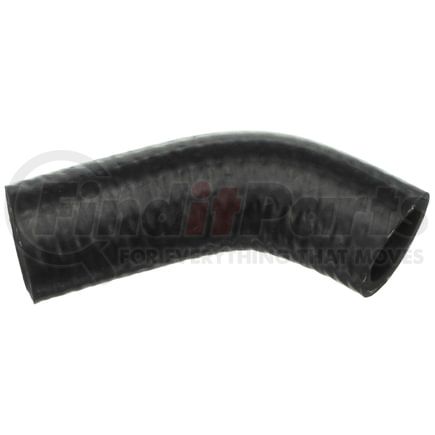

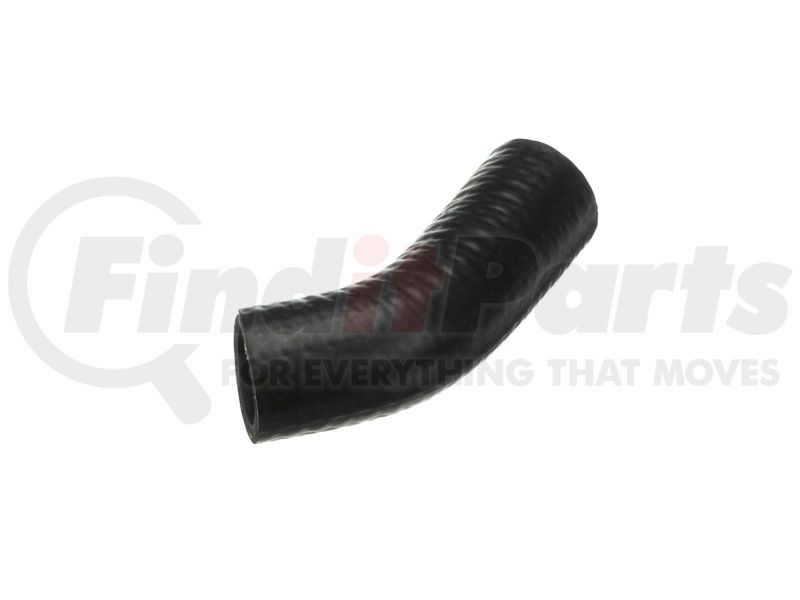

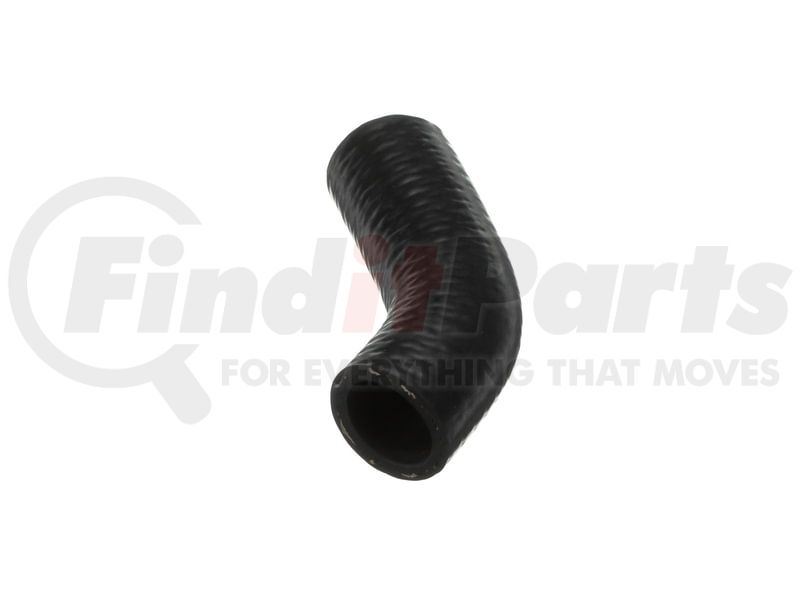

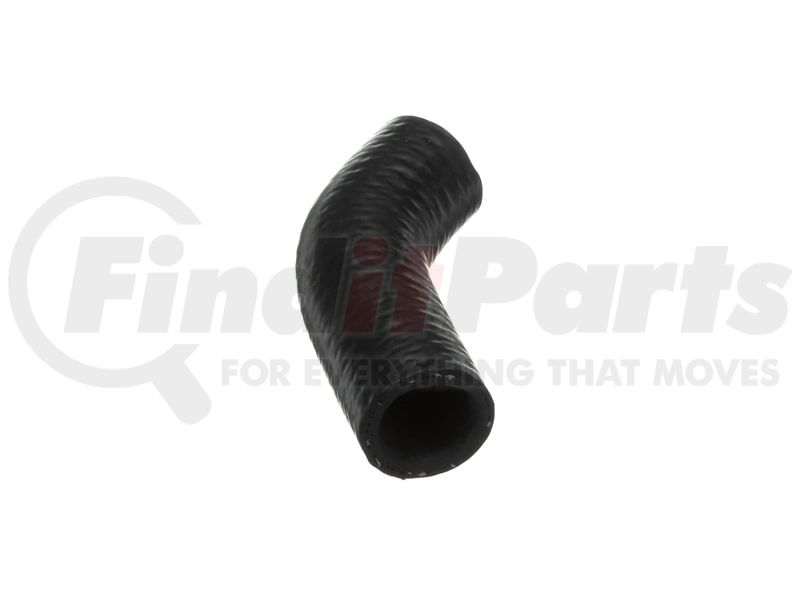

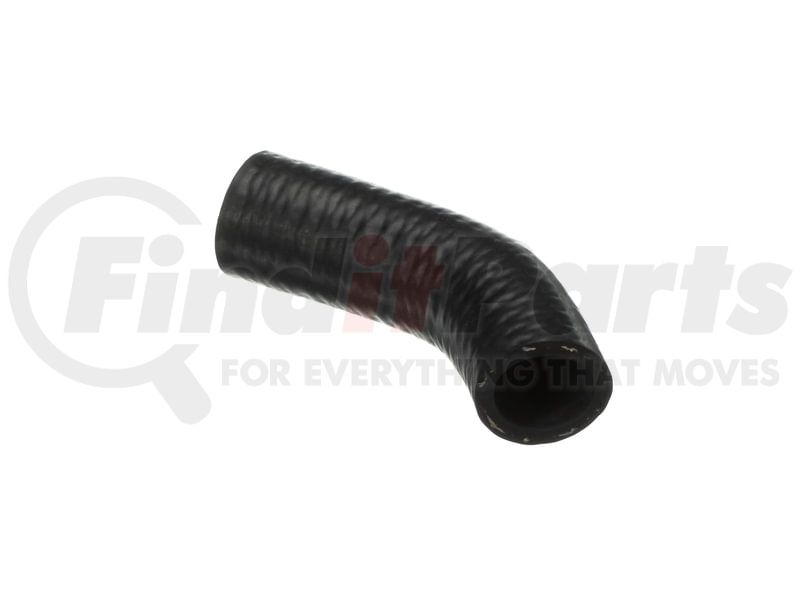

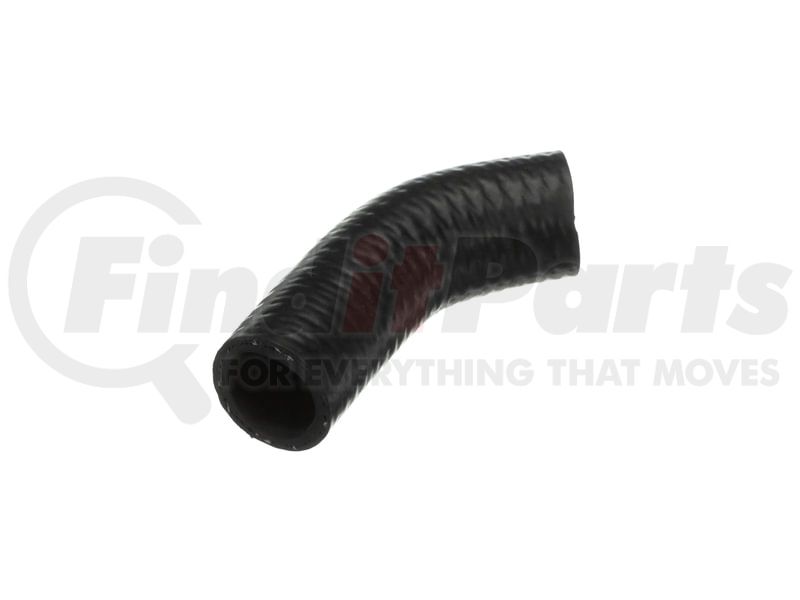

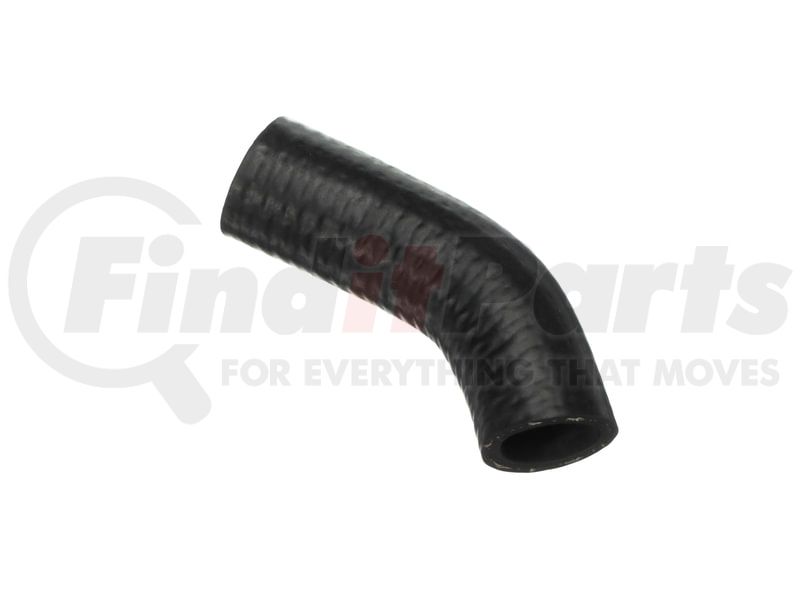

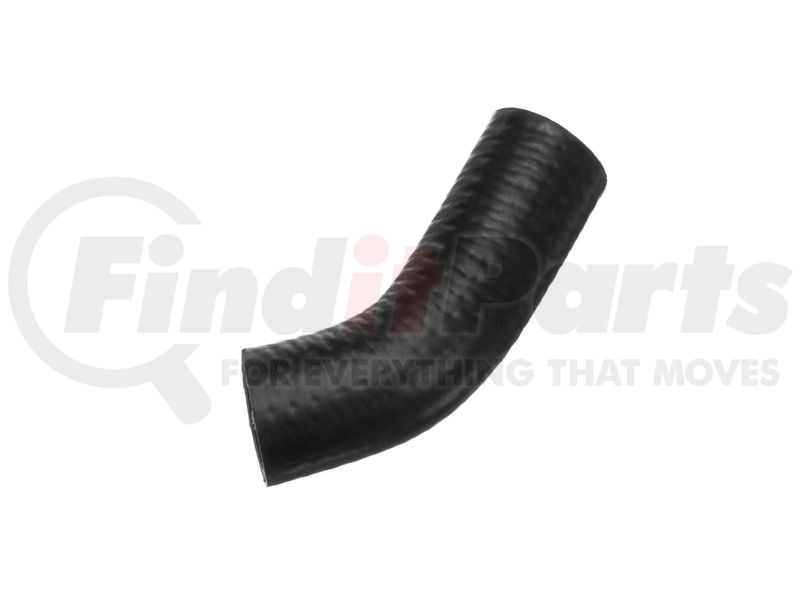

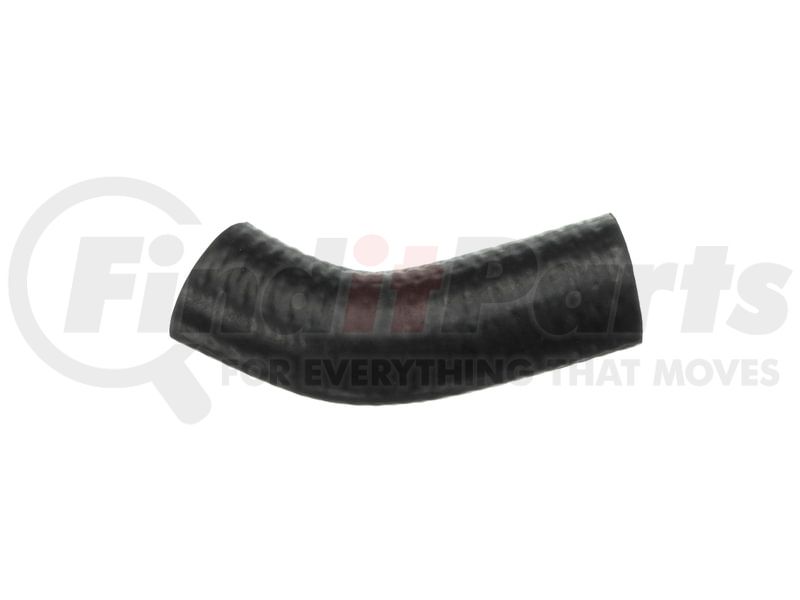

(888) 312-8812 Login SignupGATES 22038 CL11-RAD HOSE
$899
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
GATES 22038 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
2010-1997 Ford, Explorer, V-6 4.0 L, By Pass
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22038 Specifications
Product Attributes
| Centerline Length | 4.5 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | .94 in |
| End 2 Inside Diameter | .94 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 114 MM |
| End 1 Inside Diameter | 24 MM |
| End 2 Inside Diameter | 24 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053114713 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22038 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-3337, KM-3269 |
| ACDelco | 14240S |
| Dayco | 71651, 72025, A71651, B72025 |
| Carquest | 22038 |
| Chrysler | 4483761, 53008654 |
| General Motors | 25530817 |
| MasterPro | 22038, C2038 |
| Ford | 97JM 8548 AG, F77Z 8548 AF |
| Roadmax | C2038 |
| Goodyear | 63064, 64371 |
| Dorman | 626-546 |
| NAPA Belts/Hose | 8722 |
| Duralast | A71651 |
GATES 22038 Fits Vehicles
- Dodge Ram 4000 (1995-1996, 2001)
- Ford Explorer Sport Trac (2001-2005, 2007-2010)
- Ford Mustang (2005-2009)
- Ford Explorer Sport (2001-2003)
- Mazda B4000 (2001-2002, 2009-2010)
- Mercury Mountaineer (1999-2010)
- Ford Ranger (1997-2011)
- Ford Explorer (1997-2010)
- Cadillac Commercial Chassis (1988-1989)
- Cadillac Fleetwood (1988-1989)
- Cadillac DeVille (1988-1989)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-1998)
- Dodge W350 (1993)
- Dodge W250 (1992-1993)
- Dodge W150 (1992-1993)
- Dodge Ramcharger (1992-1993)
- Dodge Ram 3500 Van (1996-2003)
- Dodge Ram 3500 (1994-2002)
- Dodge Ram 2500 Van (1996-2003)
- Dodge Ram 2500 (1994-2002)
- Dodge Ram 1500 Van (1995-2003)
- Dodge Ram 1500 (1994-2003)
- Dodge Durango (1998-2003)
- Dodge Dakota (1991-2003)
- Dodge D350 (1993)
- Dodge D250 (1992-1993)
- Dodge D150 (1992-1993)
- Dodge B3500 (1995-1998)
- Dodge B350 (1992-1994)
- Dodge B2500 (1995-1998)
- Dodge B250 (1992-1994)
- Dodge B1500 (1995-1998)
- Dodge B150 (1992-1994)
GATES 22038 Cross References
We have 2 alternatives for the 22038 by GATES:
