(888) 312-8812 Login SignupGATES 22009 Premium Molded Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 22009 Part Description
Manufacturer
Product Description

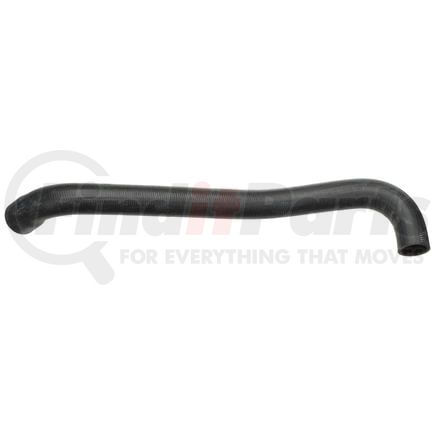

Premium Molded Coolant Hose
Application Summary
1994-1990 Chevrolet, P Series Van, V-8 7.4 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22009 Specifications
Product Attributes
| Centerline Length | 27.3 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.5 in |
| End 2 Inside Diameter | 1.75 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 693 MM |
| End 1 Inside Diameter | 38 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053249576 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22009 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-3114 |
| ACDelco | 26223X |
| Carquest | 22009 |
| General Motors | 15638163 |
| NAPA Belts/Hose | 8694 |
GATES 22009 Fits Vehicles
- GMC P3500 (1990-1994)
- Chevrolet P30 (1990-1994)
GATES 22009 Cross References
We have 1 alternatives for the 22009 by GATES:
