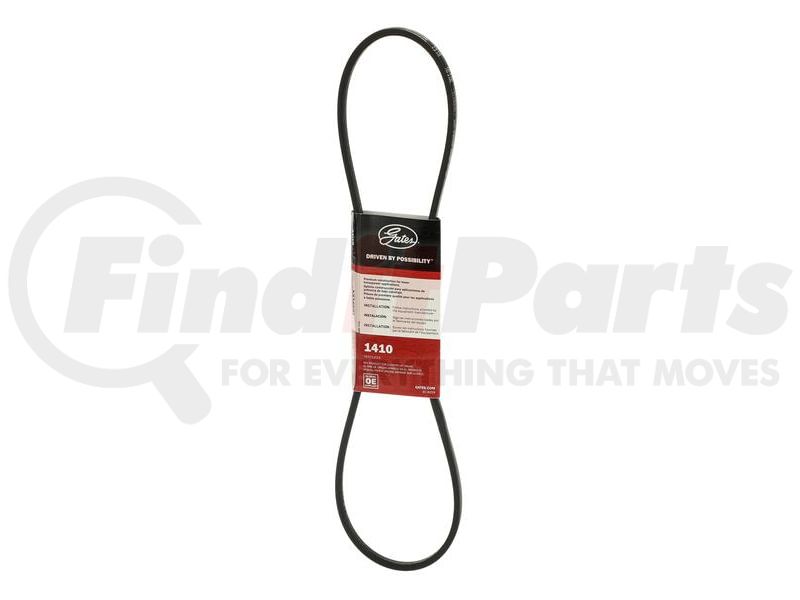

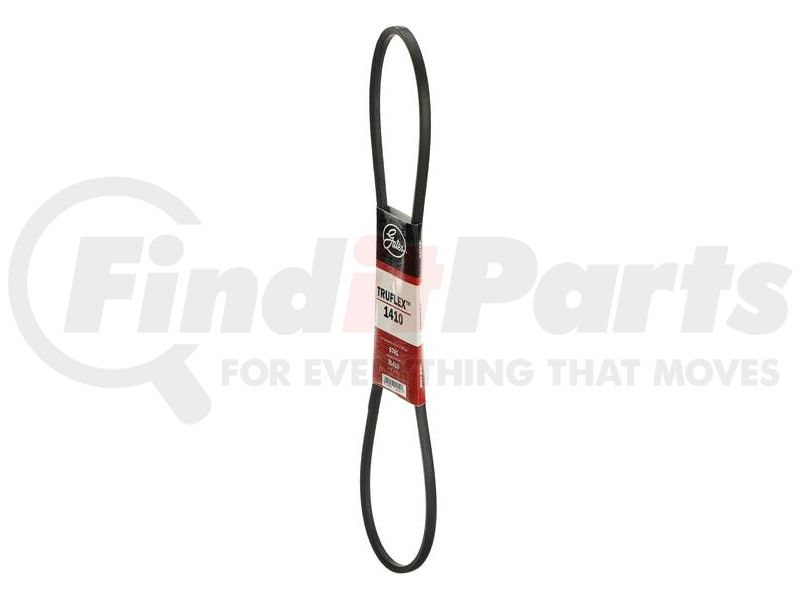

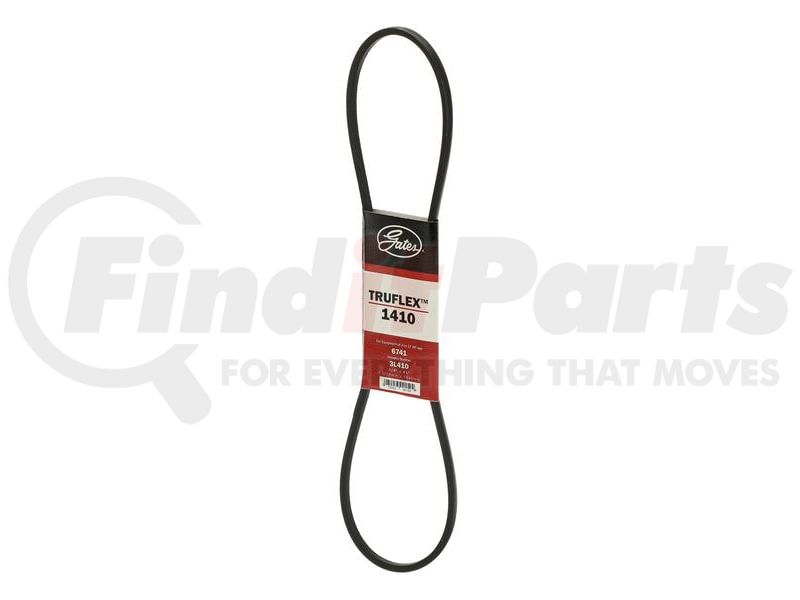

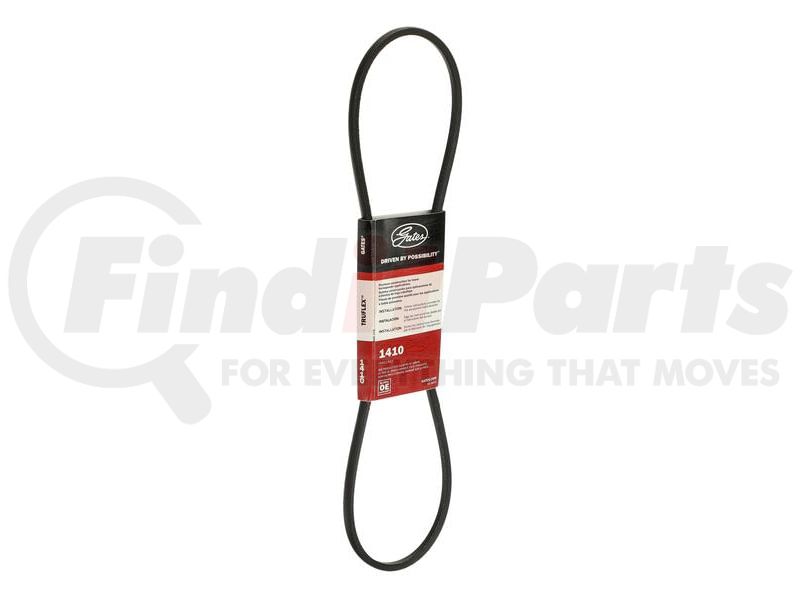

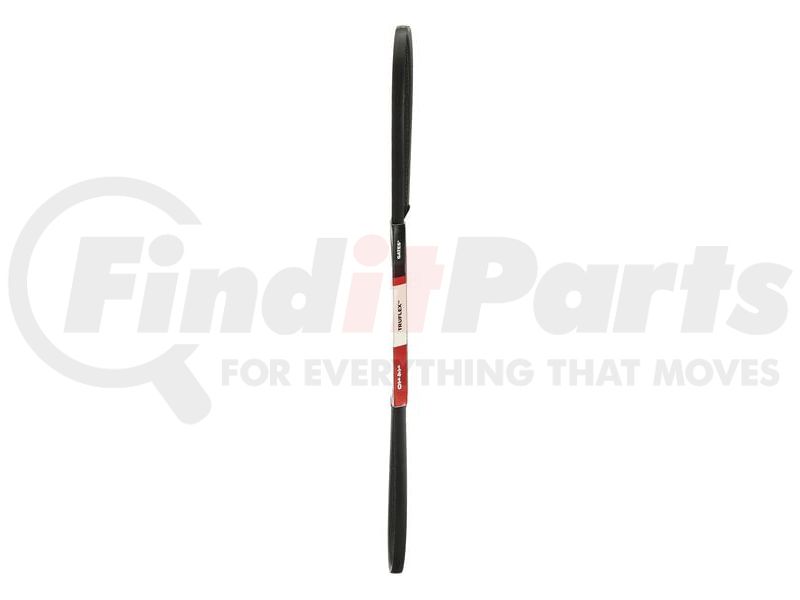

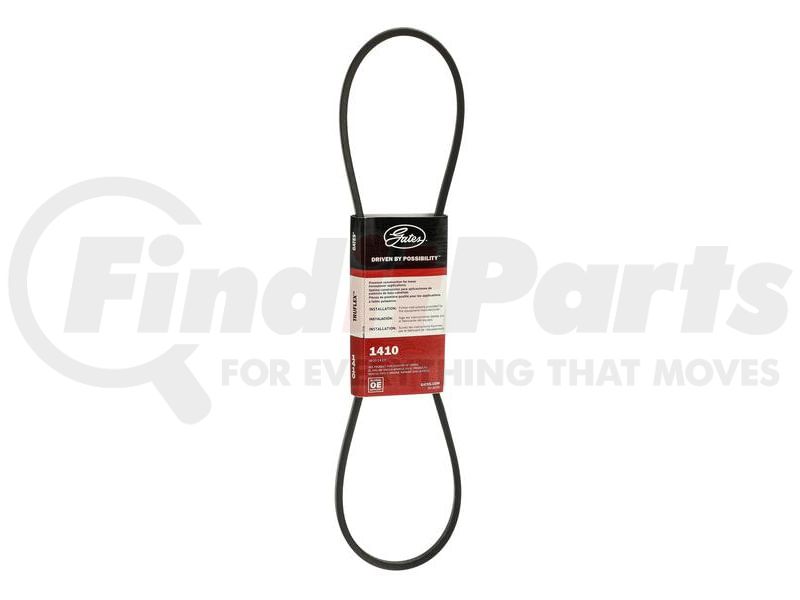

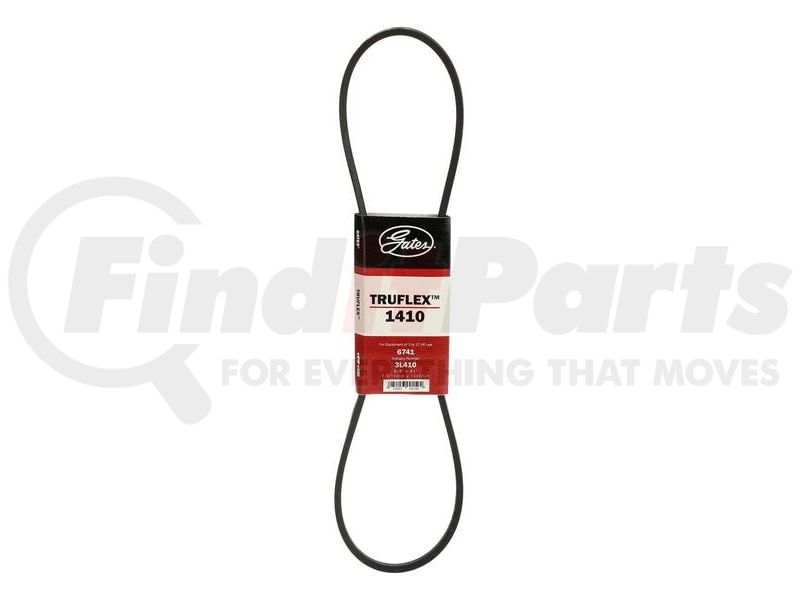

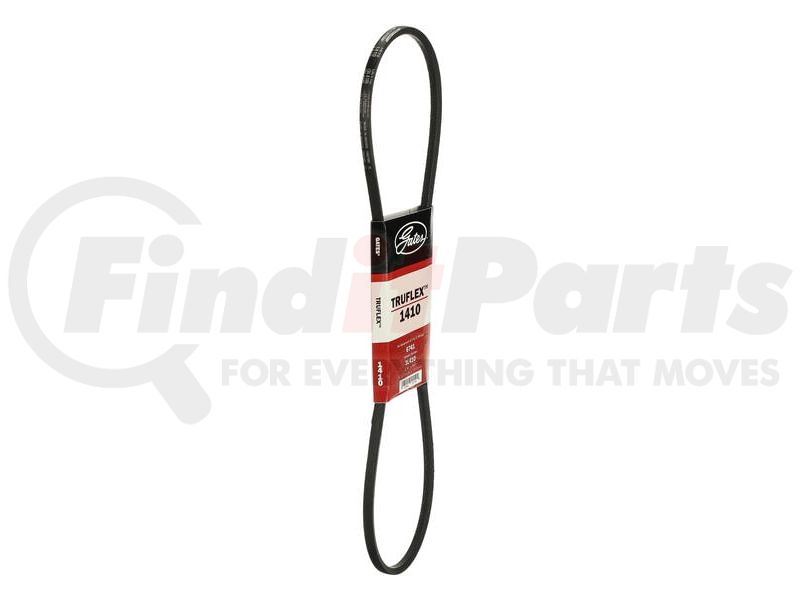

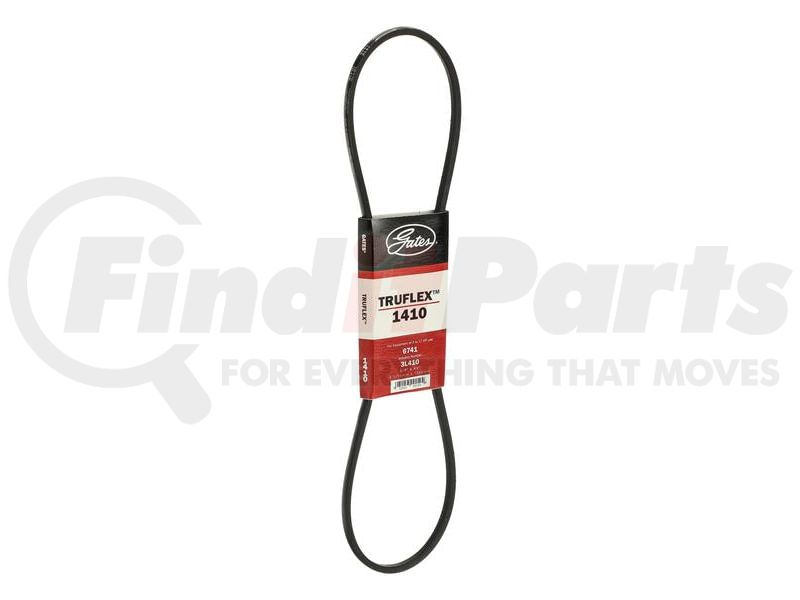

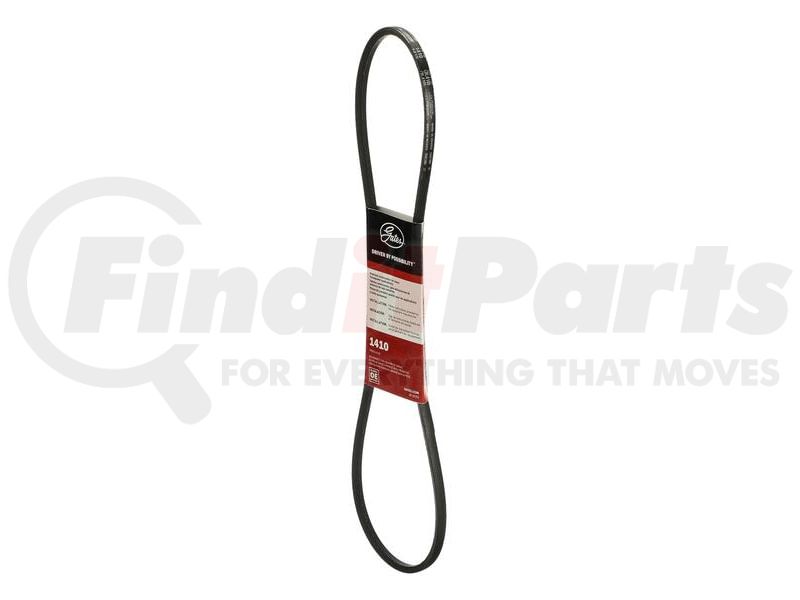

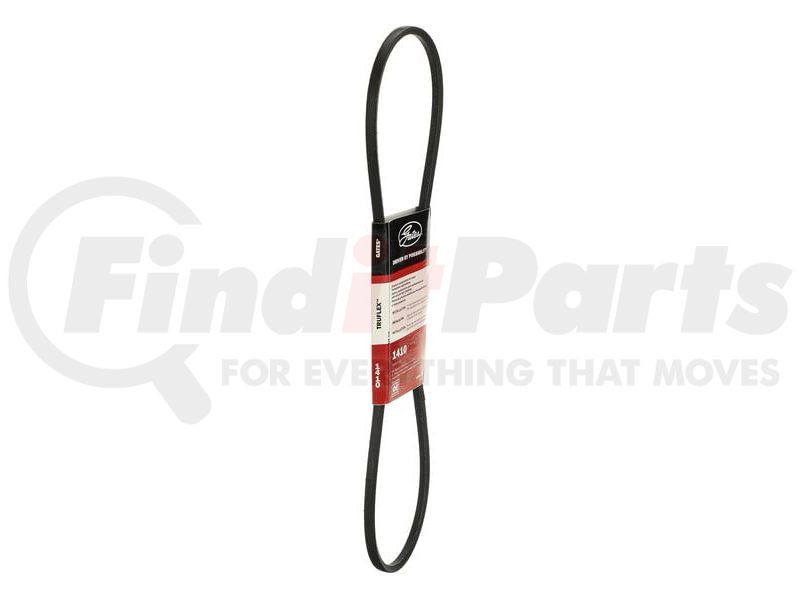

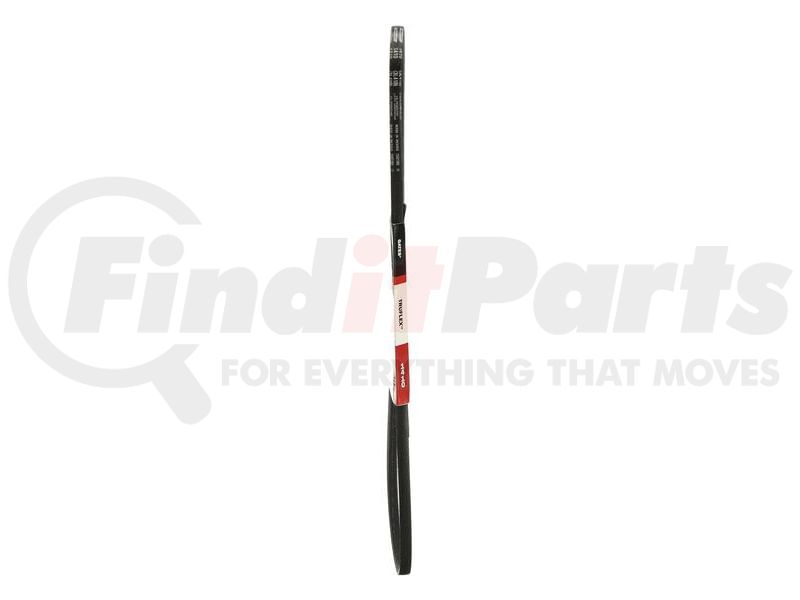

(888) 312-8812 Login SignupGATES 1410 Accessory Drive Belt - Truflex FHP Low Horse-Power V-Belt
Tap to view 11 more
$1399
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
GATES 1410 Part Description
Manufacturer
Product Description
Truflex FHP Low Horse-Power V-Belt
Application Summary
Atwater Strong, 16BPT, , Belt
Features & Benefits
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Runs with smooth, quiet operation
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
- Do not use on applications where FHP medium horsepower V-belts are recommended
GATES 1410 Specifications
Product Attributes
| Type | FHP Low Horse-Power V-Belt |
| Cross Section Designation | 3L |
| Angle | 38 |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 41 in |
| Effective Length | 40.68 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 1041 mm |
| Effective Length | 1033 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053001594 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 1410 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 101032T, 2623C341, 35578, 4933897, 511277, 600146, 70749, 857174, 90561, B2660, C4A74, JP3129, KK5705475AR25, P3541, P8943 |
| ACDelco | 3L410 |
| Apex Hose/Spec | 2E12213, E12213 |
| Atwater Strong | 1615 |
| BF Goodrich | 0410 |
| Bendix Appliance | 90405 |
| Bendix-Westinghouse | 11520 |
| Blackstone | 25353 |
| Browning Manufacturing | 0395 |
| CARQUEST | 1410 |
| CONTINENTAL AG | 3L410 |
| Dayco | 0M041, 3L410 |
| Dexter Co | UA2074 |
| Easy Laundry | 101109, 350074 |
| Franklin Manufacturing | A2074, C288 |
| Frigidaire | 5443298 |
| Galion | D69437 |
| Gambles | 83 |
| General Electric | K5705475AF25 |
| Gilmer | 2410 |
| Goodyear | 3L410, 73410, FO41 |
| Grainger | 3L410 |
| John Deere | LG38410 |
| L Series | 3L410 |
| Maytag | 211124, 62111240, 63111240 |
| Metric | 9R1040 |
| Murray | 22846, 37X13 |
| NAPA Belts/Hose | 3L410 |
| Poloron | 108147 |
| Power Lawnmower Part | 109-031 |
| Reliance Electric | 108176 |
| Root | RE221410 |
| Rotary Lifts | 12-5024 |
| Sears | 508774 |
| Silver Streak | 75-641, DB3L410 |
| Speedqueen | C101109 |
| Sunbrand | 1410T713 |
| Sund | T713 |
| Thor Power | 16144 |
| U.S. Government | MS392413L410 |
| Universal Sewing | 13681 |
| VAICO | V10-2044 |
