Name: Gates 1285 Truflex FHP Low Horse-Power V-Belt
SKU: 1285
Price: 10.49 USD
Availability: InStock

GATES part description

Product Description

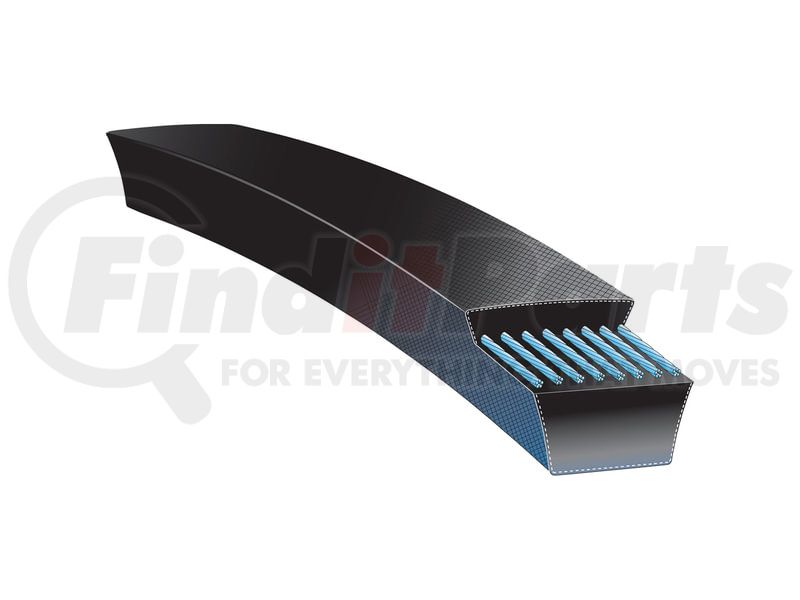

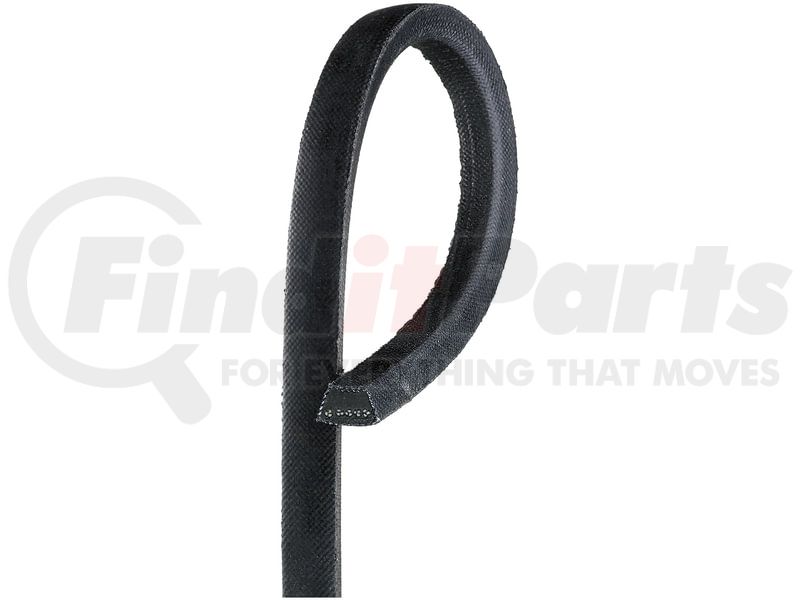

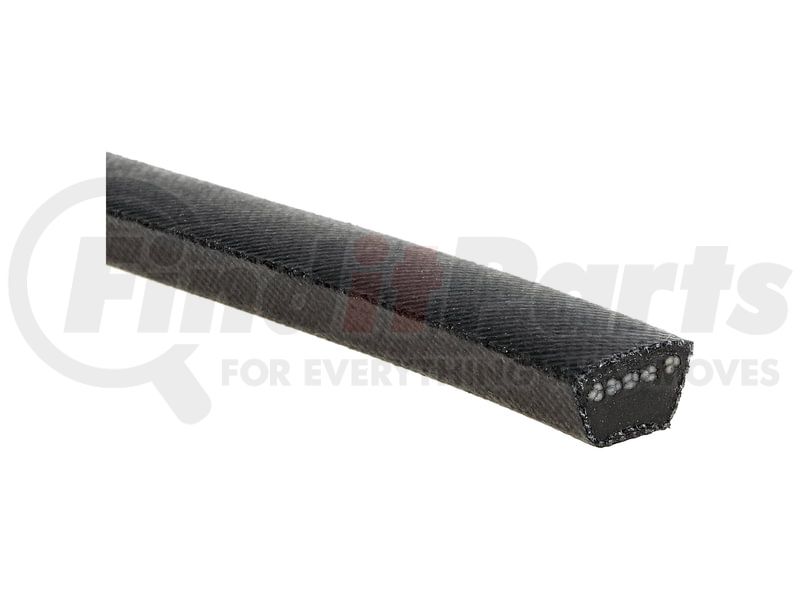

Truflex FHP Low Horse-Power V-Belt

Application Summary

Moto-Mower, 26-300, , Belt

Features & Benefits

Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Runs with smooth, quiet operation
Meets RMA oil and heat-resistant standards and static conductivity requirements
Available in 2L (0), 3L (1), 4L (2) and 5L (3) cross-sections
Do not use on applications where FHP medium horsepower V-belts are recommended

Product Attributes

Type	FHP Low Horse-Power V-Belt
Cross Section Designation	3L
Angle	37
Strand Quantity	1
Top Width	.38 in
Outside Circumference	28.5 in
Effective Length	28.18 in
Construction	Wrapped
9837	No
Belt Material	EPDM
Cord Material	Polyester
Top Width	10 mm
Outside Circumference	724 mm
Effective Length	716 mm

Additional Information

Harmonized Tariff Code (Schedule B)	4010323000
Country of Origin (Primary)	MX
UPC	00072053001273
VMRS Code	065005003
UNSPSC	26111801
