FRAM PH977A Part Description
Manufacturer
Product Description

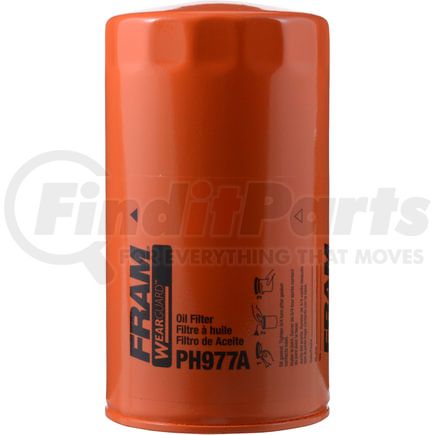

FRAM, PH977A, HD Oil Filter
Features & Benefits
- Cellulose and glass blend media traps 95% of dirt and contaminants
- Silicone anti-drainback valve prevents dry starts by keeping the filter full
- Robust housing withstands system pressure surges
- Heavy-duty tapping plate ensures a leak-free fit
- Fits specific Ford 7.0L and diesel applications correctly
Spin-on Oil Filter
FRAM Engine Oil Filter
The FRAM Engine Oil Filter offers reliable full-flow lubrication protection for a variety of heavy-duty and older Ford truck applications. Constructed with an Extra Guard cellulose and glass blended media, this spin-on filter balances dirt-trapping efficiency with high dirt-holding capacity. It features a silicone anti-drainback valve that remains flexible in extreme temperatures, keeping oil in the filter to prevent dry starts and immediate engine clatter. The heavy-gauge steel tapping plate withstands pressure loads and ensures a positive seal against the mounting surface. Designed for everyday durability, this FRAM PH977A filter helps keep oil clean and free of the metal shavings and sludge that shorten engine life.
FRAM PH977A Specifications
Product Attributes
| Height | 7.130 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Outside Diameter | 2.810 IN |
| Bypass Relief Valve Setting | 8-12 PS |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 3/4-16 IN |
| New Or Remanufactured | New |
| Outside Diameter | 3.690 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 3/4-16 IN |
Additional Information
| Country of Origin (Primary) | BR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100400260 |
| UNSPSC | 15121501 |
FRAM PH977A Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1792, PF42, PF881 |
| ACDelco | PF1792, PF42, PF881, PF881F |
| AGCO | 1447031M2 |
| ALLIANCE | ABP/N10G-LF699, ABP/N10G-LF787 |
| ALLIS-CHALMERS | 72093963 |
| AMSOIL | ASF26, EAO26 |
| Alliance Parts | ABP/N10G-LF699, ABP/N10G-LF787 |
| Allis Chalmers | 72093963 |
| Amsoil | SDF26 |
| BALDWIN | BT237, BT251 |
| Baldwin | BK6810, BT217 |
| Big A | 92459, 92773 |
| Carquest | 85459, 85773 |
| Carrier Transicold | 30-00323-00, 30.00323, 30.00323-00 |
| Caterpillar | 7W-2326 |
| Cenex | CO299 |
| Champ | LF496, PH299 |
| Coach Guard | T17-1054 |
| Coopers | AZL008 |
| Crosland | 308, 616 |
| Daewoo | 2474-6018 |
| Deutsch | D650, PH299 |
| Donaldson | LFP550299, MK13094, P550299, P554407, P559046, P559201, P559211, P559300, P559615 |
| FLEETGUARD | LF699 |
| Fleetguard | LF3580, LF697 |
| Fleetrite | LFR-8697, LFR-8699, LFR-8787 |
| Ford | D2NN-6714-C, D3HF-6714-AA, D3HZ-6731-B |
| Gehl | 2654347, 79756 |
| General Motors | 25010130, 5579970, 6439681, 7984292 |
| Gonher | GP31, GP31M |
| Grand Prix | PH299 |
| Hastings | LF426, LF434, LF496 |
| Hyster | 245908, 3000870 |
| JCB | 2/100073A |
| Jiffy Lube | HL977A |
| Kralinator | L141 |
| LUBER-FINER | LFP2292, LFP299, LK106CR, PH299 |
| Linde | 26-543-153 |
| MAHLE | OC42 |
| MANN-HUMMEL FILTERS | W950/7 |
| Mann-Filter | W 950/7, W9.50 7, W9.50/7, W950/4, W950/5, W950/7 |
| Massey Ferguson | 1034065-M91, 1034065-M92, 1446675-M91, 1447031-M1, 2654407, 881446-M91 |
| Master Parts | PH-299 |
| Mopar | L-312 |
| Motorcraft | FL-299, FL-299FP, FL-405 |
| NAPA | 1459, 1773 |
| Nelson | 85060-A |
| PREMIUM GUARD | HG50115, HG50050 |
| Perkins | 2654347, 2654401, 2654407 |
| Phillips 66 | P459, WO1773 |
| Purflux | LS154A, LS453A |
| Purolator | L40017, L40107 |
| Quaker State | QS977A |
| STP | PH299 |
| Sierra | 18-7887 |
| Unocal 76 | OF1773 |
| VME | 11998008-4 |
| Valvoline | L-977 |
| Volvo | 6612598 |
| WALMI | WS-977 |
| WIX FILTERS | WIX FILTERS, 51773 |
| Warner | PH299 |
| White | 155618-A, 31-2752257, 730341 |
| Wix | 51459, 51773, 51773MP |
FRAM PH977A Fits Vehicles
- Suzuki Aerio (2002)
- Ford LNT900 (1981)
- Ford LNT800 (1981-1984)
- Ford LT800 (1981-1984)
- Ford LN900 (1981)
- Ford C900 (1981)
- Bering LD15A (2000)
- Ford F-600 LPO (1990-1994)
- Ford LN700 (1980-1985)
- Ford LN600 (1980-1985)
- Ford F700 (1998)
- Ford LN800 (1980-1985)
- Ford B-600 (1980-1989)
- Ford B-700 (1980-1989)
- Ford L800 (1980-1985)
- Ford FT800 (1980-1990)
- Ford F-800 (1980-1991, 1997-1998)
- Ford F-700 (1980-1998)
- Ford F-600 (1980-1994)
- Ford C700 (1980-1986)
- Ford C800 (1980-1987)
- Ford C600 (1980-1986)
