FRAM CH9461 Part Description
Manufacturer
Product Description
FRAM, CH9461, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

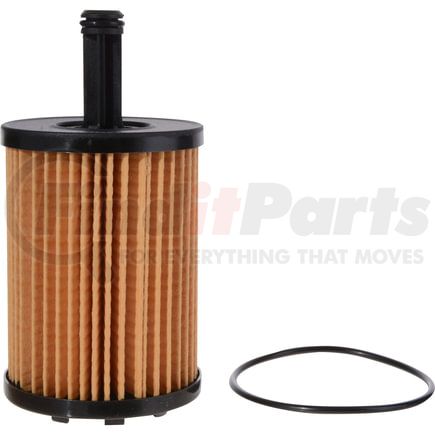

Cartridge Oil Filter
FRAM CH9461 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.550 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.630 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.913 IN |
| O-ring Outside Diameter | 3.000 IN |
| O-ring Thickness | 0.118 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.800 in |
| Outer Diameter Top | 2.800 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.910 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.630 IN |
| Outside Diameter Top | 2.800 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100038418 |
| UNSPSC | 15121501 |
FRAM CH9461 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1708 |
| BALDWIN | P7415 |
| Bosch | 72217WS |
| CARQUEST | 84083 |
| CHAMP | P3040 |
| CROSLAND | 2232 |
| Carquest | R84083 |
| Certified | CCH9461 |
| Champion | COC9641 |
| Champion Filters | COC9641 |
| DEFENSE | DL9461 |
| DENSO | 150-3086 |
| Defense Filters | DL9461 |
| ECOGUARD | X8113 |
| FRAM Drive | FD9461 |
| FVP | G7083 |
| Factory Motor Parts | G7083 |
| GROUP 7 | L38113 |
| HASTINGS | LF553 |
| HENGST | E 19 HD 83 |
| Hastings | LF553F |
| Hitachi Construction Machinery | 4292789 |
| Installer Edge | AL9461, ALO18 |
| K&N | PS-7031 |
| LUBER-FINER | P3040 |
| MAHLE | OX188DECO, OX 188D ECO, OX 188D, OX188D |
| MANN-HUMMEL FILTERS | HU719/7X |
| Mann-Filter | HU719/7X |
| MicroGard | MGL9461, MGL57083 |
| MicroGard Select | MSL57083 |
| Mobil | L38113 |
| MotoMaster | MCH9461 |
| NAPA | 7083 |
| PREMIUM GUARD | PG8113EX |
| PUROLATOR | TL38113 |
| Parts Master | 67083 |
| Parts Plus | P3040 |
| Pentius | PCB9461 |
| Performax | PO-154 |
| Premium Guard | PG8113 |
| Premium Guard Extended Life | PG8113EX |
| PureZone | 8-57083 |
| Purolator | L38113 |
| STP | S9461 |
| STP Filters | S9461, S9461XL |
| Service Champ | CF8113 |
| Shell - Archived | L38113 |
| VIPER | 9461 |
| Valvoline | VO-77, VO77 |
| Volkswagen | 045 115 466, 071 115 466, 071 115 562, 071 115 562A, 071 115 562C, 071 115 562B |
| WIX FILTERS | 57083 |
| Wix | 57083 |
FRAM CH9461 Fits Vehicles
- Suzuki Aerio (2002)
- Volkswagen Beetle (2013-2014)
- Audi A3 Quattro (2006-2009)
- Audi A3 (2010-2013)
- Volkswagen CC (2009-2012)
- Volkswagen R32 (2004, 2008)
- Volkswagen Passat (2006-2010)
- Volkswagen Eos (2007-2008)
- Audi TT Quattro (2004-2006, 2008-2009)
- Volkswagen Golf (2003-2005, 2010-2014)
- Volkswagen Jetta (2002-2006, 2009-2014)
- Volkswagen EuroVan (2001-2003)
