FRAM PH3531 Part Description
Manufacturer
Product Description
FRAM, PH3531, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up

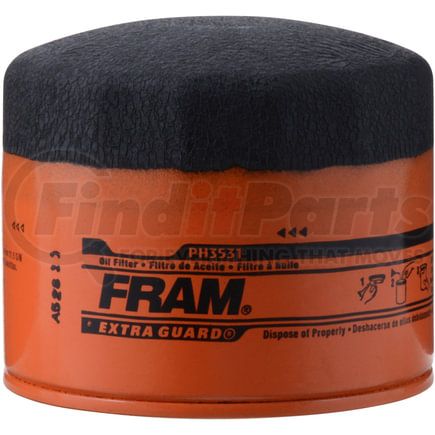

Spin-on Oil Filter
FRAM PH3531 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.094 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 12 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.328 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.422 IN |
| Gasket Outside Diameter | 2.813 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 300.000 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M22x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.656 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Burst Pressure | 300.000 PS |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100380968 |
| UNSPSC | 15121501 |
FRAM PH3531 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF963 |
| ACDelco | PF963 |
| AMSOIL | ASF45 |
| ATLAS | M-51 |
| AUTOEDGE | AL3531 |
| AUTOPAR | FE233 |
| AUTOPRO | 2392 |
| AUTOWIZE | A18 |
| AWARD | AOF-167 |
| Auto Extra | 61851392 |
| Autopar - Archived | FE233 |
| BALDWIN | B156 |
| Beck/Arnley | 041-8044 |
| Bosch | 72125 |
| Bravo | BF291 |
| Cam2 | C291 |
| Canada Tire | 17-1888-4 |
| Car Care | IOF3531 |
| Carquest | 85392, BF291 |
| Casite Filters | CF3531 |
| Cenex | CO2817 |
| Champ | PH2817 |
| Champion | OF15 |
| Champion Filters | OF15 |
| Citgo Petroleum | C291 |
| Coopers | FT4931 |
| Crosland | 369 |
| DENSO | 150-1005 |
| Defense Filters | DL3531 |
| Deutsch | D330 |
| Donaldson | P502048 |
| Dynalife | CN-3531 |
| Econo-lube | L10291 |
| Evergard | E291 |
| FRAM Tough Guard | TG3531 |
| FVP | R1392 |
| Facet Industrial | 3531 |
| Factory Motor Parts | R1392 |
| Filters Inc | OF3531 |
| Firestone | TF-3531A, TF3531A |
| Flag | C-3531, C-6811 |
| Fleetguard | LF3337 |
| Fleetrite | LFR-83337 |
| General Motors | 25011296 |
| Girling | F3774 |
| Gonher | GP3531 |
| Goodyear | 15400-PA6-405, 222-4518, 222-4526, L3531 |
| Grand Prix | PH2817 |
| Grease Monkey | GM10291, GM3531 |
| Group 7 | V291 |
| Hastings | LF145, LF145F |
| Havoline | TFC-516 |
| Honda | 15400-689-003, 15400-PA6-506, 15400-689-004, 15400-PA6-004, 15400-PA6-405 |
| IAPCO | A-0226-005, OF35 |
| ITM | 11-10901, 11-10904 |
| ITM Autoparts | 111-0901, 11-10901, 11-10904 |
| Installer Edge | AL3531, ML3531 |
| International Parts Service | 4-1091 |
| Jiffy Lube | 111-0901, HL3531, JL291, L10291 |
| K Mart | K-27, MP-27 |
| Kendall | K15 |
| Kralinator | L9A |
| LUBER-FINER | PH2817 |
| Lazorlite | L11-1104 |
| Lee | LF-77, LF-78, LF-78HP |
| Letourneau | MO2817 |
| MANN-HUMMEL FILTERS | L10291 |
| MPA | 2511 |
| Mann-Filter | W815/81, W917/98 |
| Marathon | MO2817 |
| Master Parts | PH-2817 |
| MicroGard | MGL3531, MGL51392 |
| Mighty Distributing System | M3531 |
| Minit-Lube | PH2817 |
| Mobil | MO291 |
| Motorcraft | FL-757 |
| NAPA | 1392 |
| OE+ | OF-360 |
| Parts Master | 61392 |
| Parts Plus | PH2817 |
| Pennzoil | PZ-18A |
| Pentius | PLB3531A |
| Performax | PO-18A |
| Phillips 66 | PO194 |
| Pit Stop | PSL15 |
| Power Flo | SL10291 |
| Precision Tune | OF-125 |
| Premium Guard | PG291 |
| Pro-Gauge | PGO-291 |
| Pro-Tec | 144 |
| Professionals Choice - Archived | Q291 |
| Promotive | PH2222 |
| Pronto | PO-3531, PO-4651 |
| Purflux | LS188B |
| Purolator | L10291 |
| Purolator PureONE | PL10291 |
| PurolatorONE | PL10291 |
| Quaker State | QS3531 |
| Quality Manufacturing Inc | QF3531 |
| Rockhill | 61392 |
| STP | S3531 |
| STP Filters | S3531 |
| Safety-Kleen | 152 |
| Sears | 45204 |
| Service Pro | M291 |
| Shell - Archived | SH516 |
| Sieg | OS3531 |
| Silverline | 21392 |
| Sunoco | O-20A |
| Tough Guard | TG3531 |
| Trust | PH2817 |
| Unocal 76 | PF2817 |
| VIPER | 3531A |
| Valu-test | V2392 |
| Valvoline | VO-27 |
| Vera | 10-00116, 10-50116 |
| WIX FILTERS | WIX FILTERS, 51392 |
| Wako | LO-911K |
| Warner | PH2817 |
| Warner Filters | PH2817 |
| Western Auto | 74-5881-3 |
| Wix | 51392 |
FRAM PH3531 Fits Vehicles
- Honda Wagovan (1984, 1986-1987)
- Honda Prelude (1979-1982)
- Honda Civic (1980-1987)
- Honda Accord (1979-1983)
- Acura Integra (1986-1987)
