FRAM PH2849A Part Description
Manufacturer
Product Description

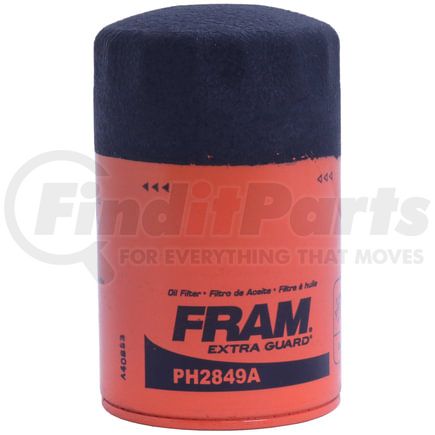

FRAM, PH2849A, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
- SureGrip(R) technology for easy install and removal
Spin-on Oil Filter
FRAM PH2849A Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.922 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 12 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.188 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.469 IN |
| Gasket Outside Diameter | 2.750 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 255.000 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M20x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 2.984 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Burst Pressure | 255.000 PS |
| Inner Thread Diameter | M20x1.5 MM |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100380784 |
| UNSPSC | 15121501 |
FRAM PH2849A Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1051, PF1779, PF867, PF967 |
| ACDelco | PF1051, PF1779, PF867, PF967 |
| ALLOY | ABH-2849 |
| AMSOIL | ASF36, EAO36, SDF36 |
| ATLAS | M-49 |
| Autopro | 2347 |
| Award | AOF-73 |
| BALDWIN | B161-S, B199 |
| Baldwin | B202 |
| Beck/Arnley | 041-8075, 041-8715 |
| Big A | 92083, 92323, 92347 |
| Bosch | 72151 |
| Canada Tire | 17-1880-0 |
| Car Care | IOF2849 |
| Carquest | 85083, 85323, 85347, 85568 |
| Casite Filters | CF2849 |
| Cenex | CO429 |
| Champ | PH2849, PH2903 |
| Champion | OF16, OF418 |
| Champion Filters | OF16, OF418 |
| Co-op | PL-295 |
| Coopers | FT4907 |
| Crosland | 2025, 662 |
| Cruisemaster | 212 |
| Delphi | FX1000 |
| Deutsch | D483 |
| Donaldson | P502056, P552849 |
| Dynalife | CN-2849A |
| Evergard | E73 |
| FVP | R7046 |
| Facet Industrial | 2849, L-289 |
| Factory Motor Parts | R7046 |
| Filters Inc | OF2849 |
| Flag | 6439518, C-2849, C-6811 |
| Fleetguard | LF16354, LF3960, LF716 |
| Fleetrite | LFR-8716 |
| Ford | D27Z-6731-A, D2PJ-6714-AA, D87Z-6731-A |
| GUD Filters | Z68 |
| General Motors | 25011354, 25011574, 6439518 |
| Girling | F6467, F6477, F6601, F694 |
| Gonher | GP24 |
| Goodyear | 222-4525, L2849 |
| Grand Prix | PH2849 |
| Grease Monkey | GM20073, GM2849 |
| Group 7 | V73 |
| Gulf | GF-212, Z68 |
| Hastings | HF925, HF929, LF148, LF242, LF386, LF386F |
| Hutchens | SF73 |
| IAPCO | A-0290-005, OF85 |
| IPD | 10063 |
| ITM | 11-10700, 11-11010, 11-11100, 11-11101, 11-11103, 11-18307, 111-0010, 111-1102 |
| ITM Autoparts | 111-0010, 11-10010, 11-10700, 11-11010, 11-11100, 11-11101, 11-11103, 11-18307, 111-1102 |
| Installer Edge | AL2849A |
| International Parts Service | 4-1029, 4-1088 |
| Jiffy Lube | JL253, JL73 |
| K Mart | K-23, MP-23 |
| Kendall | K12 |
| Knecht | AW33 |
| Kralinator | L118, L163A |
| LPM | 1350-5380 |
| LUBER-FINER | PH2849, PH2852, PH2903 |
| Lazorlite | L11-1139, L11-1317 |
| Lee | LF-73, LF-74HP |
| Letourneau | MO2849, PH2802, PH786 |
| MICRO | F-73 |
| MPA | 2110 |
| Mann-Filter | W7.19/9, W814/80, W818/99 |
| Marathon | MO2849, PH2802, PH786 |
| Master Parts | PH-2849 |
| Mazda | 0813-23-802A, 0813-23-802B, 0866-23-802, 0866-23-803, 8173-23-802, S213-23-802 |
| Micro Filters | F-73 |
| Mighty Distributing System | PH2903 |
| Minit-Lube | PH2849, PH786 |
| Mobil | MO4459 |
| Mopar | L-532 |
| Motorcraft | FL-295, FL-752, FL-786 |
| NAPA | 1083, 1323, 1347 |
| PREMIUM GUARD | PG99802 |
| PUROLATOR | TL20073 |
| Parts Plus | PH2903 |
| Peugeot | 110987 |
| Phillips 66 | P73, PO73 |
| Power Flo | SL14459 |
| Precision Tune | OF-110 |
| Premium Guard | PG7662 |
| Promatch | 971434 |
| Pronto | PO-2849 |
| Purflux | LS489, LS490 |
| Purolator | L20073 |
| Quaker State | L20073 |
| STP | S2903 |
| STP Filters | S2903 |
| Sears | 45185, 45195 |
| Security Filters | PH2849 |
| Shell - Archived | SH520, SH521 |
| Sieg | OS2849A |
| Thermo-King | 1106261, 11-4928 |
| Toyota | 00120-00008 |
| Trust | PH2849 |
| Valu-test | 4858, V2347 |
| Valvoline | VO-18, VO-52 |
| Vera | 10-01113, 10-50017 |
| Volvo | 7417534 |
| WALMI | WS-2849 |
| WIX FILTERS | WIX FILTERS, 51347 |
| Wako | LO-720K |
| Warner | PH2849, PH2903, PH786 |
| Warner Filters | PH2849, PH2903, PH786 |
| Web | W2849A |
| Western Auto | 74-5903-5 |
| Wix | 51338, 51347 |
| Yale And Towne | 901517400 |
FRAM PH2849A Fits Vehicles
- Suzuki Aerio (2002)
- Mazda 1800 (1970-1971)
- Mazda 1200 (1970-1972)
- Mazda 616 (1970-1972)
- Mazda B2200 (1983)
- Mazda 626 (1979-1982)
- Mazda Rotary Pickup (1974-1977)
- Mazda B1600 (1972-1976)
- Mazda B2000 (1979-1984)
- Mazda B1800 (1977-1978)
- Mazda RX-2 (1971-1974)
- Mazda 618 (1972-1973)
- Mazda R100 (1970-1972)
- Mazda RX-4 (1974-1978)
- Mazda RX-7 (1979)
- Mazda 808 (1972-1975, 1977)
- Mazda Cosmo (1976-1978)
- Mazda RX-3 (1972-1978)
- Mercury Bobcat (1975-1979)
- Ford Tempo (1986)
- Ford Pinto (1975-1979)
- Ford Escort (1986)
- Ford Courier (1972-1982)
- Peugeot 505 (1987-1990)
