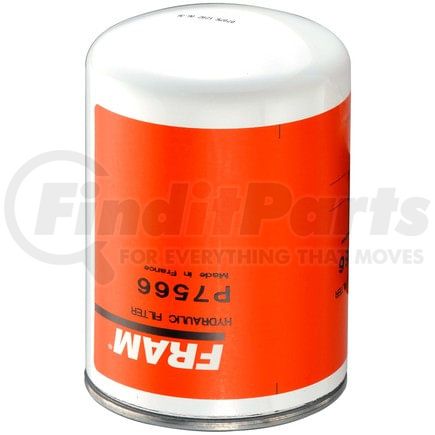

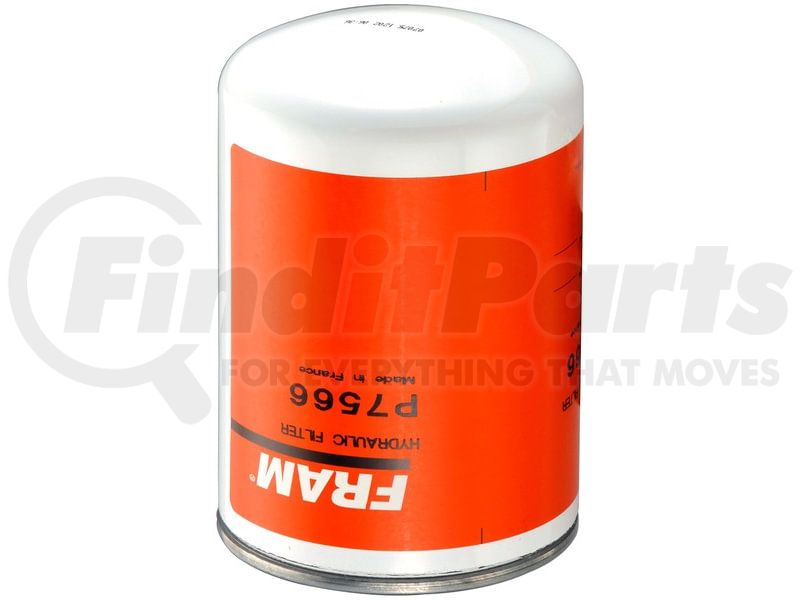

(888) 312-8812 Login SignupFRAM P7566 Hydraulic Spin-on Filter
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM P7566 Part Description
FRAM P7566 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | Yes |
| Drain Plug Included | No |
| Filter Type | Spin-On Canister |
| Fuel Type | Hydraulic |
| Gasket Inside Diameter | 2.440 IN |
| Gasket or Seal Included | Yes |
| Gasket Outside Diameter | 2.755 IN |
| Gasket Thickness | 0.315 IN |
| Gasket Type | Base Gasket |
| Grade Type | Regular |
| Height | 5.551 in |
| Housing Color | White |
| Inlet Type | Threaded |
| Inside Thread Diameter | 2-16 IN |
| Mounting Type | Spin On |
| New Or Remanufactured | New |
| Non Slip Grip | No |
| Outside Diameter | 3.681 IN |
| Reusable | No |
| Thread Size | Standard |
| Torque Nut | No |
| Universal Or Specific Fit | Specific Fit |
| Inner Thread Diameter | 2-16 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421290040 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100402851 |
| UNSPSC | 40161515 |
FRAM P7566 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1774 |
| ACDelco | PF1774 |
| BALDWIN | BT8830 |
| BIG A | 92474 |
| CARQUEST | 85474 |
| CASE | D146735, D87214 |
| CLARK | 234099, 246262, 247050 |
| Donaldson | P552850 |
| Fleetguard | HF6420 |
| Fleetrite | HFR-86420 |
| Hastings | BT8830, HF701 |
| LUBER-FINER | LFH8799 |
| NAPA | 1474 |
| Purolator | H35182 |
| Timberjack | 410951, 841095100 |
| Trojan | 2115522 |
| VME | 11993686-2 |
| Volvo | 11993686 |
| WIX FILTERS | WIX FILTERS, 51474 |
| Wix | 51474 |
