(888) 312-8812 Login SignupFRAM CH836PL Cartridge Oil Filter
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

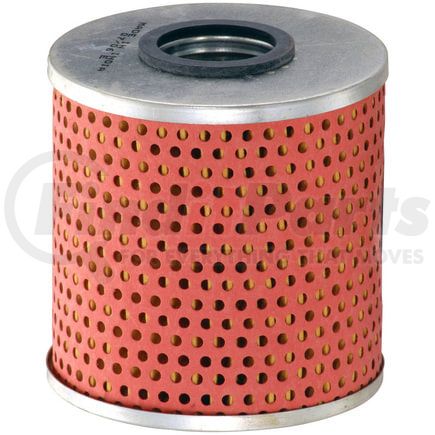

FRAM CH836PL Part Description
Manufacturer
Product Description
FRAM, CH836PL, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH836PL Specifications
Product Attributes
| Filter Media Material | Cellulose |
| Height | 3.922 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.343 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 4.110 IN |
| O-ring Outside Diameter | 4.350 IN |
| O-ring Thickness | 0.130 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.734 in |
| Outer Diameter Top | 3.734 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.343 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100421159 |
| UNSPSC | 15121501 |
FRAM CH836PL Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | AC70V |
| ACDelco | AC70V |
| BALDWIN | P15 |
| BIG A | 92305 |
| BLMI | GFE-128 |
| BOSCH | 1457429441 |
| BRITISH LEYLAND | GFE-128 |
| CAN-CAR | 21012 |
| CARQUEST | 85305 |
| CARRIER TRANSICOLD | 2.1026 |
| Can-Am | 21012 |
| Carrier Transicold | 2.1043, 29.21026, 30.21026 |
| Co-op | PM-216 |
| Coopers | AZL018, FA4303 |
| Crosland | 478 |
| Donaldson | P551285 |
| FRAM | CH836PL1 |
| Fleetguard | LF599 |
| Fleetrite | LFR-8599 |
| Ford | 2701E-6731-A2, 508E-6731, C2TA-6708-A, C2TZ-6731-A, C7TZ-6731-A |
| GUD Filters | G553 |
| General Motors | 1531789, 6435103, 7961399, 7984374 |
| Girling | F4683, F551 |
| Gonher | G836 |
| Hastings | LF185 |
| Hyster | 98561 |
| Knecht | EH323 |
| Kralinator | L530 |
| LUBER-FINER | LP70V |
| Manitou | 1-568410 |
| Mann-Filter | H1029/1N |
| Mercury | 35-896546T |
| Mopar | L-26 |
| Motorcraft | FL-221, FL-336 |
| NAPA | 1305 |
| Nelson | WAC-70 |
| Perkins | 101606, 26540154, 32578, 35312, FP-3331, 30212 |
| Purflux | L110 |
| Purolator | L20126 |
| Renault | 048100160, 48100160 |
| Rol-Pak | AC-70-FF, ACQ-70-FF |
| Rootes | K-33052 |
| Serck | 37851-1102 |
| Tecalemit | FP-3335, FP-3338, FP-3331 |
| Volvo | 415415 |
| WGB | S-188-CP |
| WIX FILTERS | WIX FILTERS, 51305 |
| Wix | 51305 |
