FRAM CH8157 Part Description
Manufacturer
Product Description
FRAM, CH8157, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

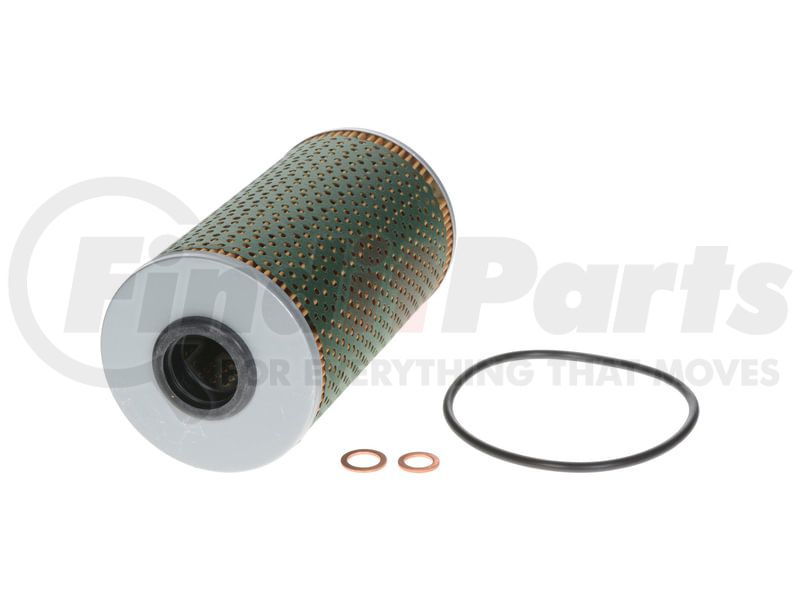

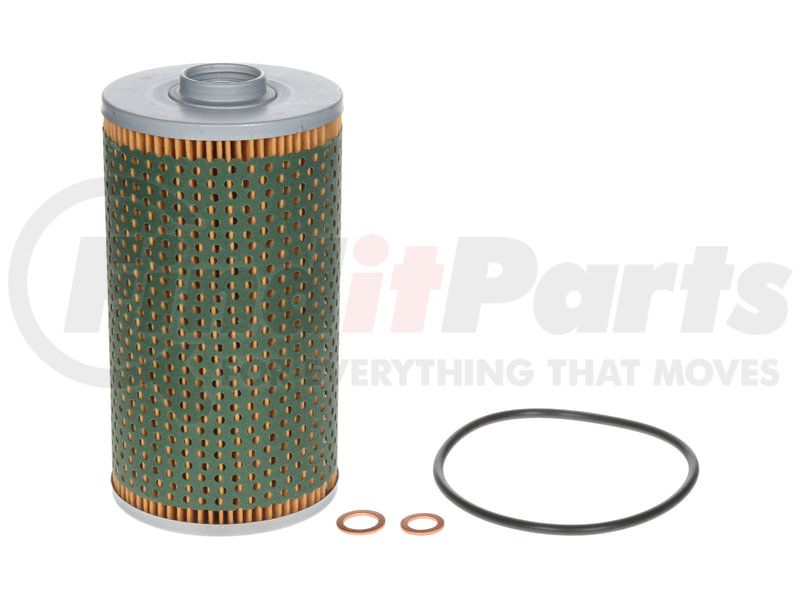

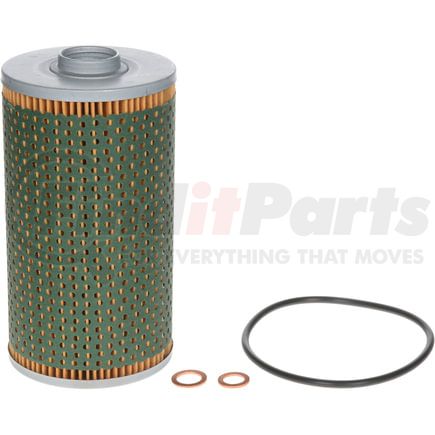

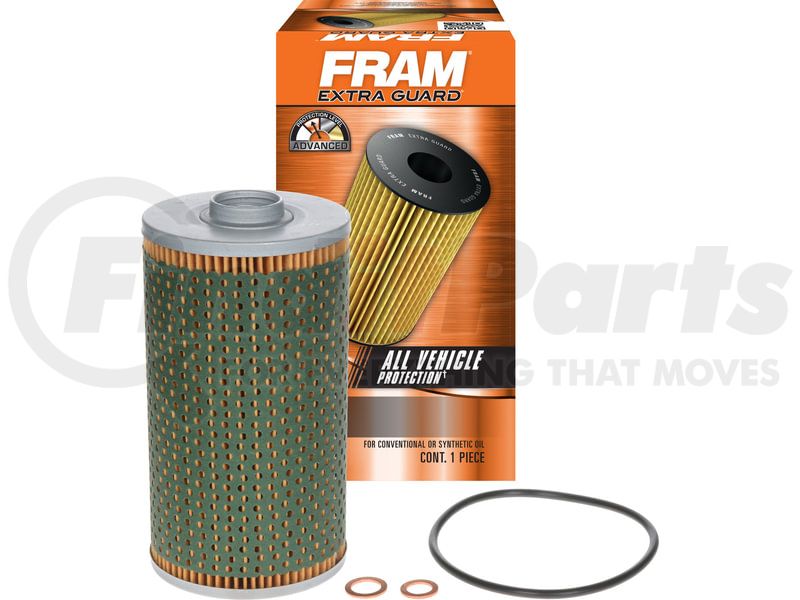

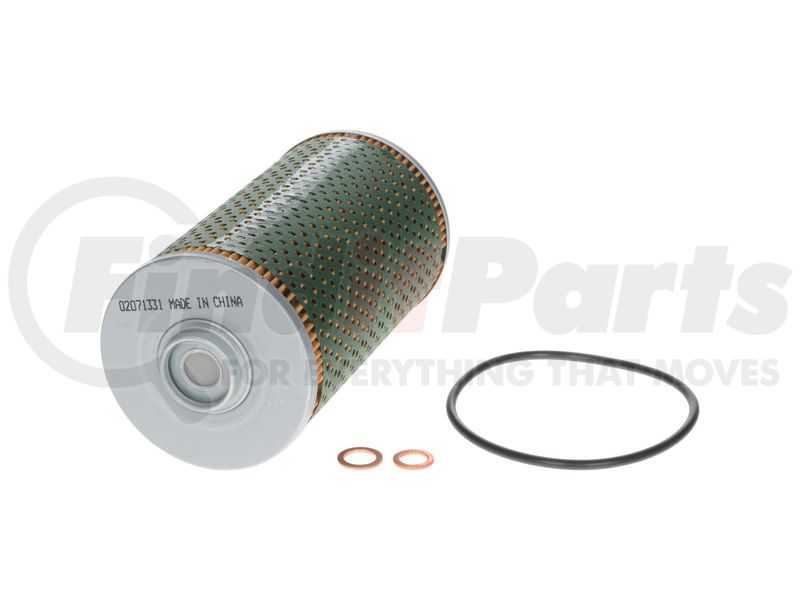

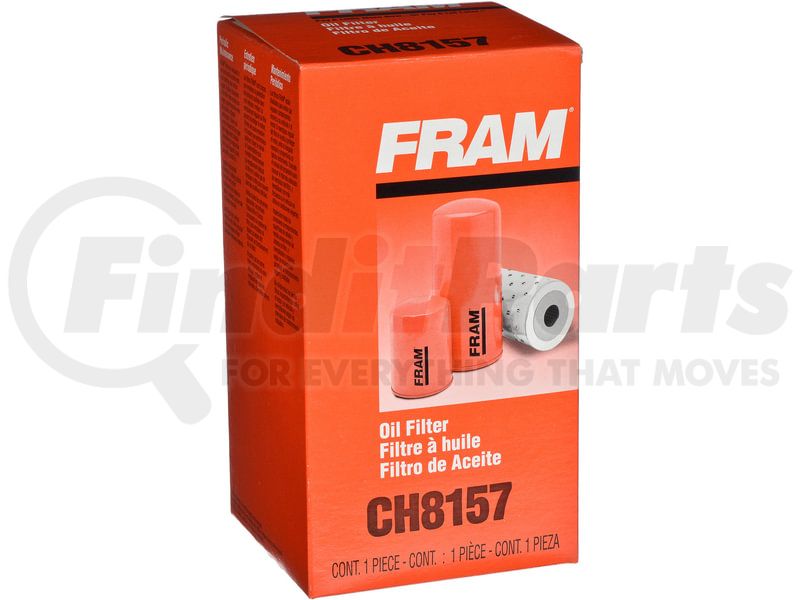

Cartridge Oil Filter
FRAM CH8157 Specifications
Product Attributes
| Filter Media Material | Cellulose |
| Height | 6.484 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.063 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 3.609 IN |
| O-ring Outside Diameter | 3.922 IN |
| O-ring Thickness | 0.094 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.266 in |
| Outer Diameter Top | 3.266 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.984 in |
| Torque Nut | No |
| Washable | No |
| Washer (1) Inside Diameter | 0.410 IN |
| Washer (1) Outside Diameter | 0.590 IN |
| Washer (1) Thickness | 0.40 IN |
| Washer Inside Diameter | 0.490 IN |
| Washer Outside Diameter | 0.670 IN |
| Washer Thickness | 0.040 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100004741 |
| UNSPSC | 15121501 |
FRAM CH8157 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1715, PF2251G |
| ACDelco | PF1715, PF2251G |
| BECK/ARNLEY | 041-8126 |
| BIG A | 92144 |
| BMW | 11 42 1 731 634 , 11 42 1 731 634 |
| BOSCH | 72193 |
| CARQUEST | 85144 |
| CHAMP | P841 |
| DEUTSCH | D655 |
| FVP | G1144 |
| Factory Motor Parts | G1144 |
| Group 7 | L37212 |
| Hastings | LF122 |
| Installer Edge | AL8157 |
| Jiffy Lube | HL8157 |
| LUBER-FINER | P841 |
| MAHLE | OX103D, OX 103D |
| MANN-HUMMEL FILTERS | H943/7X |
| Mann-Filter | H943/7X |
| Mighty Distributing System | L37212, M841, P841 |
| Mobil | L37212 |
| NAPA | 1144 |
| Pentius | PCB8157 |
| Performax | PO-148 |
| Premium Guard | PG7212 |
| Purolator | L37212 |
| Quaker State | L37212, PO-148 |
| STP | P841 |
| STP Filters | P841 |
| Shell - Archived | L37212 |
| Valvoline | LC-841, LC841 |
| WIX FILTERS | WIX FILTERS |
| Warner | P841 |
| Warner Filters | P841 |
| Wix | 51144 |
FRAM CH8157 Fits Vehicles
- Suzuki Aerio (2002)
- BMW 840Ci (1994-1995)
- BMW 850CSi (1994-1995)
- BMW 540i (1994-1995)
- BMW 740i (1993-1995)
- BMW 850i (1991-1992)
- BMW 850Ci (1993-1995)
- BMW 740iL (1993-1995)
- BMW 750iL (1991-1995)
- BMW 530i (1994-1995)
