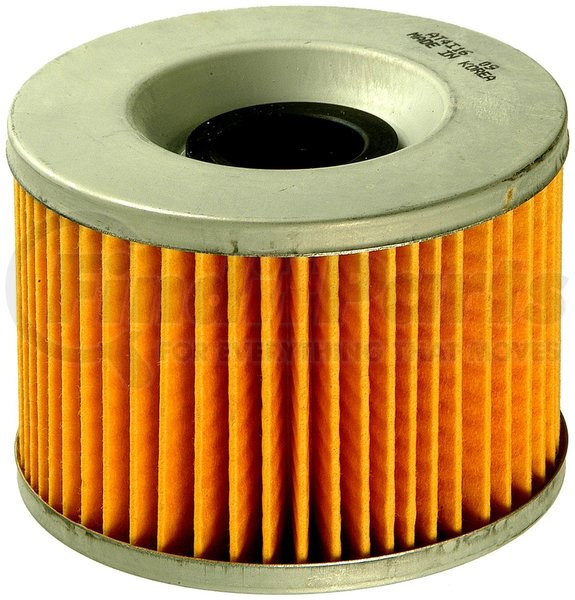

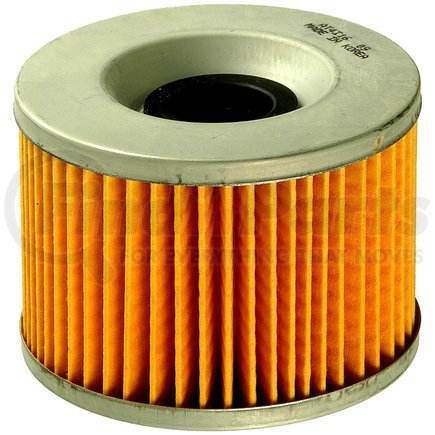

(888) 312-8812 Login SignupFRAM CH6009 Motorcycle Full-Flow Lube Cartridge
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH6009 Part Description
FRAM CH6009 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 2.218 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.765 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.609 IN |
| O-ring (1) Outside Diameter | 0.813 IN |
| O-ring (1) Thickness | 0.109 IN |
| O-ring Inside Diameter | 3.500 IN |
| O-ring Outside Diameter | 3.859 IN |
| O-ring Thickness | 0.172 IN |

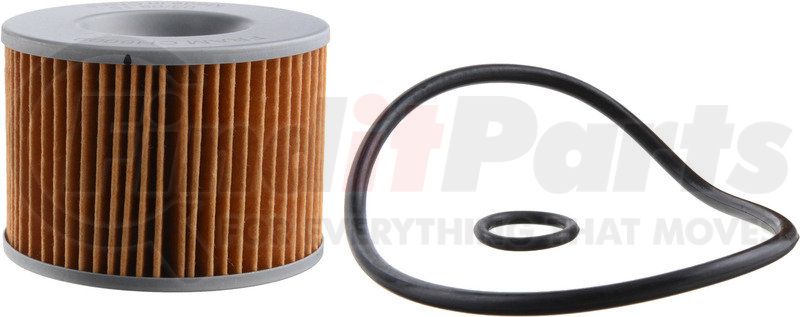

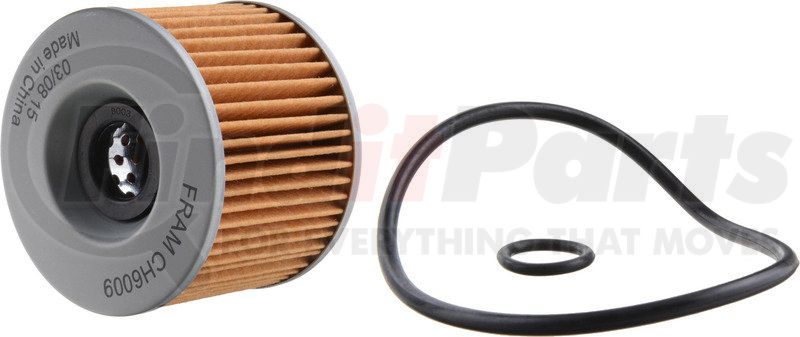

| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.031 in |
| Outer Diameter Top | 3.031 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.765 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100546180 |
| UNSPSC | 15121501 |
FRAM CH6009 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2170 |
| ACDelco | PF2170 |
| AUTO-TUNE | E5202 |
| BALDWIN | P148, P40093 |
| BIG A | 92216, 96940 |
| CANADIAN TIRE | 27-5518-8 |
| CARQUEST | 85216, 89940 |
| CENEX | CO3000 |
| Champ | P300, P7009 |
| Deutsch | D4022 |
| Ducati | 252.004.0799 |
| Emgo | 10-20300, 10-37500 |
| Grand Prix | P300 |
| Hastings | LF571, LF603 |
| Honda | 15410-422-000, 15410-426-000, 15410-426-010, 15412-300-024, 15412-300-325 |
| LUBER-FINER | P300, P7009 |
| MAHLE | OX61D, OX 61D |
| MANN-HUMMEL FILTERS | ML16809 |
| Mobil 1 | M1MC-171 |
| NAPA | 1216, 4940 |
| Purolator | ML16809 |
| STP | P7009 |
| WIX FILTERS | WIX FILTERS, 24940 |
| Warner | P7009 |
| Wix | 24940, 51216 |
