FRAM C31PL Cartridge By-Pass Oil Filter

★★★★★ (0) Write a Review

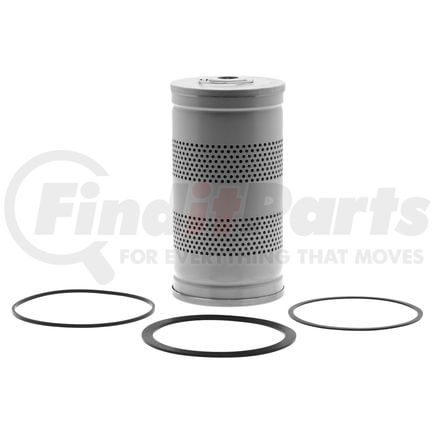

C31PL by FRAM - Cartridge By-Pass Oil Filter
FRAM
Tap to view 1 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

FRAM C31PL Part Description

Manufacturer

FRAM

Product Description

FRAM, C31PL, HD Oil Filter

Cartridge By-Pass Oil Filter

FRAM C31PL Specifications

Product Attributes

Height 7.984 IN
Gasket Or Seal Included Yes
Filter Type Cartridge
Gasket Thickness 0.098 IN
Housing Color NA
Bottom Inside Diameter 0.563 IN
Gasket Inside Diameter 4.396 IN
Gasket Outside Diameter 4.778 IN
Top Inside Diameter 0.563 IN
Gasket Inside Diameter (1) 4.832 IN
Gasket Outside Diameter (1) 4.939 IN
Gasket Thickness (1) 0.129 IN
Gasket Type Cover
Grade Type Regular
New Or Remanufactured New
Outside Diameter 4.500 IN
Reusable No
Universal Or Specific Fit Specific
Universal Or Specific Fit Specific

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8421230000
Warranty Special See Rep
Warranty Special UOM SR
Warranty Time 30
Warranty Time UOM DA
UPC 00009100420633
UNSPSC 15121501

FRAM C31PL Cross References

BrandPart Number
AC-DELCOP117
ACDelcoP117
ACF Brill327470
ACF-BRILL327470
ALLIS-CHALMERS252571, 4369289, 43692890
AMERICAN LAFRANCE418E-94, 801E-1266
Allis Chalmers252571, 4369289, 43692890
American Lafrance4.18E-92
BAKER737A1
BALDWINP52
Big A92500, 92503
Brockway20009, 212880, 213227, 214672
Carquest85500, 85503
Carrier Transicold30.00087
Case010070AB, 72321
Caterpillar28471
Chrysler1090234, 1090690, 1090707, 1090708, 1900714, 925809
Cummins100130, 150584
Detroit Diesel23519155, 5572425
Diamond Reo11403, 1391-A6, 31415-W, BB-21416
DonaldsonLFP550117
Elgin Sweeper77250
FLEETGUARDLF504
FWD48A9311
Fairbanks-morse13312
Federal Truck1B7105
General Motors1504256, 1504314, 1504347, 1504440, 1595310, 1595502, 5570092, 5570097, 5570141, 5570676, 5572263, 5572425, 5573353, 5575412, 5576141, 5576797
Hall Scott327468, 327470, 6406012-D
HastingsLF605
Hercules17252-DS, 17253-CS, 180244-DS, 281286, 32243-BS, 32243-CS, 42843-CS, 83254-CS, 83317-CS, 89254-CS
Hyster108280, 200336
International Harvester IHC114929H, 114929HX, 122128H1, 162245H1, 162246H1, 165245H1, 422547C1
John DeereAR29174R, AR29589R
Kohler286622
KralinatorL525
LUBER-FINERP71
Leroi43-123-1, 43-124, 43-187-1, 43-269, A-43-187-1, A-43-269
Mack236GB114, 236GB117, 236GB241
Mann-FilterPF1025
Massey Ferguson1004891-M1, 1004894-M91, 1004895-M1, 1009064-M91, 1015713-M91, 840870-M1
Michiana15500, SA-12800, SA-27, SA-60
MoparL-7
NAPA1500, 1503
Nelson1651-B-66, 88020-D, WF-31G, WP-117
Oshkosh5134RX
Pettibone- Mulliken7364
PurfluxL424
PurolatorL40050, P50
Ready Power14174
Rol-PakE-4308, R-8, R-801, RMS-BP, WTF-4-BP
Sheppard310054
Thermo-King287022, 287052, 352766
Trojan794367
Twin Coach8-335064, 8-35064, 8-35075
United Engine LifeC-4308-L-BR-100, EL-4308-F, MS
WALMIWEC-31
WGBS-15-C
WIX FILTERSWIX FILTERS, 51503
Waukesha101731, 101737A, 158324, 159076
White1391-A6, 140382, 1713365, 26344, 2UG-0611, 2UU-01335, 2UU-0746, 2UU-A-0611, 394667, 402719, 407018, 407026, 600094, 600094-A, 600094-FS, 62047, 7A-5507-A
Witte47312183, 47312288, 47315768, 47315769
Wix51503

FRAM C31PL Fits Vehicles

  • Suzuki Aerio (2002)
  • Chevrolet 3E (1959)
  • GMC 150 (1953-1955)
  • GMC PM151 (1955)
  • Chevrolet 3C (1959)
  • Chevrolet 3F (1959)
  • GMC Suburban (1960-1962)
  • GMC PM250 (1955)
  • GMC 350-27 (1953-1954)
  • GMC PM150-22 (1953-1954)
  • GMC PM152-22 (1953-1954)
  • GMC 350-24 (1953-1954)
  • GMC 100 (1953-1955)
  • Chevrolet BK (1946)
  • Chevrolet 3G (1959)
  • Chevrolet 3B (1959)
  • GMC PM150 (1955)
  • GMC 280-22 (1953-1955)
  • GMC Truck (1953-1955)
  • Chevrolet 1500 (1954)
  • GMC PB1000 Series (1961-1962)
  • Chevrolet C30 Pickup (1960-1962)
  • Chevrolet 3D (1959)
  • Pontiac Strato-Chief (1958)
  • Pontiac Laurentian (1955-1958)
  • Pontiac Pathfinder (1955-1958)
  • GMC 370 (1953-1955)
  • GMC PM150-24 (1953-1954)
  • GMC 250-24 (1953-1954)
  • GMC PM250-24 (1954)
  • GMC 300 (1953-1955)
  • GMC 250-22 (1953-1955)
  • GMC 300-24 (1953-1954)
  • GMC 150-24 (1953-1954)
  • GMC 250 (1953-1955)
  • GMC 100-22 (1953-1955)
  • GMC 150-22 (1953-1955)
  • GMC 100-24 (1953-1954)
  • Chevrolet Sedan Delivery (1947-1951, 1953-1958)
  • Chevrolet Truck (1946-1958, 1960)
  • Chevrolet C30 Panel (1960-1962)
  • GMC PM252 (1954-1955)
  • Chevrolet C10 Panel (1960-1962)
  • GMC PM153 (1955)
  • GMC PM253 (1954-1955)
  • GMC PM152 (1954-1955)
  • Pontiac Star Chief (1955-1958)
  • Chevrolet Suburban (1960-1962)
  • Chevrolet K10 Pickup (1960-1962)
  • Chevrolet P30 Series (1960-1962)
  • Chevrolet P20 Series (1960-1962)
  • Chevrolet P10 Series (1960-1962)
  • Chevrolet K20 Pickup (1960-1963)
  • Chevrolet C20 Pickup (1960-1962)
  • Chevrolet C10 Pickup (1960-1962)
