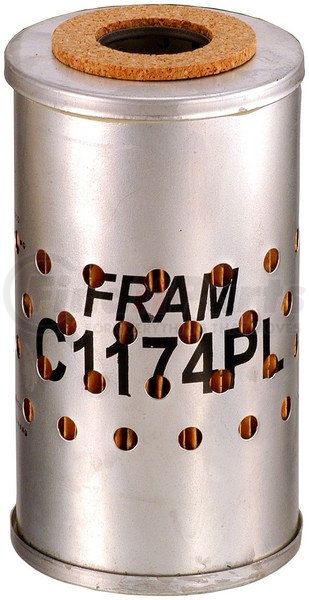

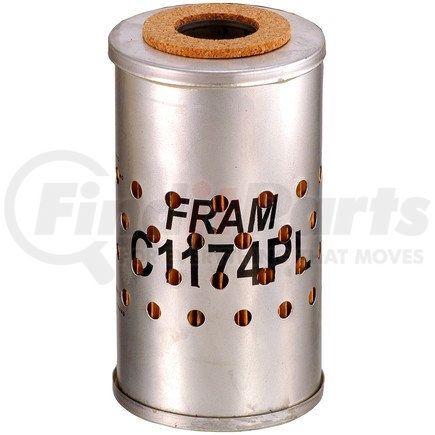

(888) 312-8812 Login SignupFRAM C1174PL Cartridge Fuel Filter
$15.17
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM C1174PL Part Description
FRAM C1174PL Specifications
Product Attributes
| Fuel Type | Diesel |
| Height | 5.563 IN |
| Gasket Or Seal Included | Yes |
| Filter Type | Cartridge |
| Gasket Inside Diameter | 0.438 IN |
| Gasket Inside Diameter (1) | 0.500 IN |
| Gasket Outside Diameter | 0.750 IN |
| Gasket Outside Diameter (1) | 0.750 IN |
| Gasket Thickness | 0.470 IN |
| Gasket Thickness (1) | 0047 IN |
| Gasket Type | Flat |
| Grade Type | Regular |
| Housing Color | NA |
| Inside Diameter Bottom | 1.172 IN |
| Outside Diameter | 2.781 IN |
| Top Inside Diameter | 1.172 in |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Universal Or Specific Fit | Specific |
| Bottom Inside Diameter | 1.172 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100421425 |
| UNSPSC | 40161513 |
FRAM C1174PL Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | T553, T60, TP522 |
| ACDelco | T553, T553F, T60, TP522 |
| AIR REFINER | PF-106 |
| ALLIS-CHALMERS | 227040, 2270407, 277050, 2770508, 4055563 |
| Allis Chalmers | 227040, 2270407, 277050, 2770508, 4055563, 40555633, 4347786, 43477862, 4347787, 43477872, 4347788, 43477882, 4353268, 43532688, 4353269, 43532698, DE53268 |
| BALDWIN | PF916 |
| Baldwin | F916-C, PF967 |
| Big A | 95073, 95074 |
| Carquest | 86073, 86074 |
| Carrier Transicold | 30.00133-01 |
| Caterpillar | 3I-1190, 77-6725 |
| Coopers | AZF007 |
| Crosland | 329, 534 |
| Detroit Diesel | 23519148, 23519454 |
| Donaldson | FFP550522, FFR-8106 |
| Dynahoe | 19-261P |
| Eimco | VFA89 |
| Euclid | 21029, 9021029 |
| FLEETGUARD | FF106 |
| Flo-line | Q522 |
| Ford | C2TZ-9155-C, C2TZ-9365-B |
| Galion | D86328 |
| General Motors | 21029, 23519148, 23519454, 5182041, 5192853, 5192854, 5573482, 5574961, 5575173, 5575568, 6436567, 9021029 |
| Gonher | G1174, G1174M |
| Hastings | F916-C, F916C, FF888, FF909, FF944 |
| Hyster | 154495, 155100 |
| International Harvester IHC | 432417R91 |
| John Deere | AR29586R |
| Kralinator | F765, F767 |
| LUBER-FINER | L274F, L274F-1 |
| Link-Belt | 3A11546 |
| Mann-Filter | H822/1X |
| Massey Ferguson | 1015840-M1, 835787-M91 |
| Master Parts | L-274F |
| Mopar | L-11, L-20 |
| Motorcraft | FD-148 |
| Multihoe | 1695-P |
| NAPA | 3073, 3074 |
| Nelson | 88200-A, F-630-0, FX-630-0, WT-553, WTP-522 |
| Onan | 149-855 |
| Perry | PF-205 |
| Phillips 66 | P59 |
| Purolator | F50065, F60059 |
| Raygo | 71000006 |
| Refilco | T553 |
| Rol-Pak | C-6-FUEL, C-6-GM-FUEL |
| Thermo-King | 120836, 120866 |
| Timberjack | 403104, 840310400 |
| United Engine Life | AT-553, EC-631 |
| WALMI | WEC-1174 |
| WGB | S-102-CP |
| WIX FILTERS | WIX FILTERS, 33073 |
| White | 104952-AS, 156289-AS, 7A-5351-C, 7HA-5351-B, 892973, TFO-5126 |
| Witte | 10171, 47310029, 47313644, 47317428 |
| Wix | 33073, 33074 |
FRAM C1174PL Fits Vehicles
- Suzuki Aerio (2002)
- Ford LNT9000 (1981-1985)
FRAM C1174PL Customer Reviews
No reviews yet
Be the first to review this product!
FRAM C1174PL Questions & Answers
No questions yet
Be the first to ask a question about this product!
