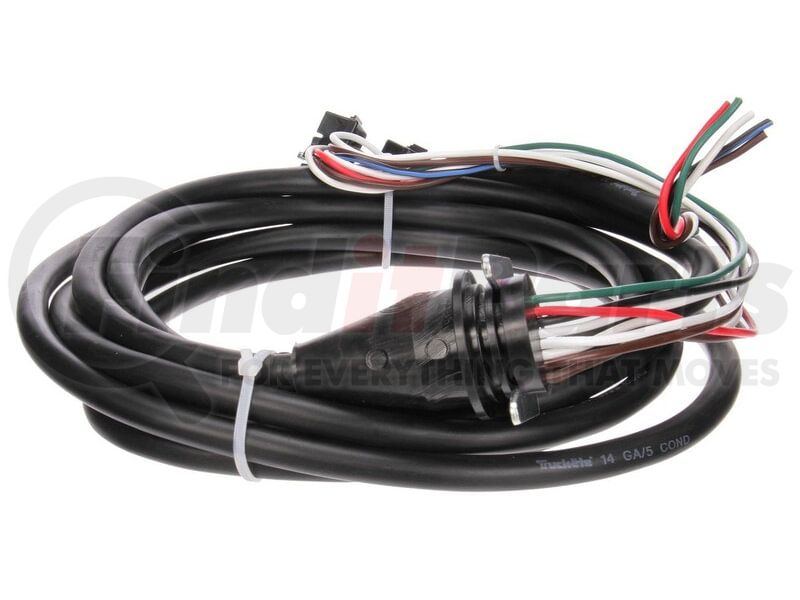

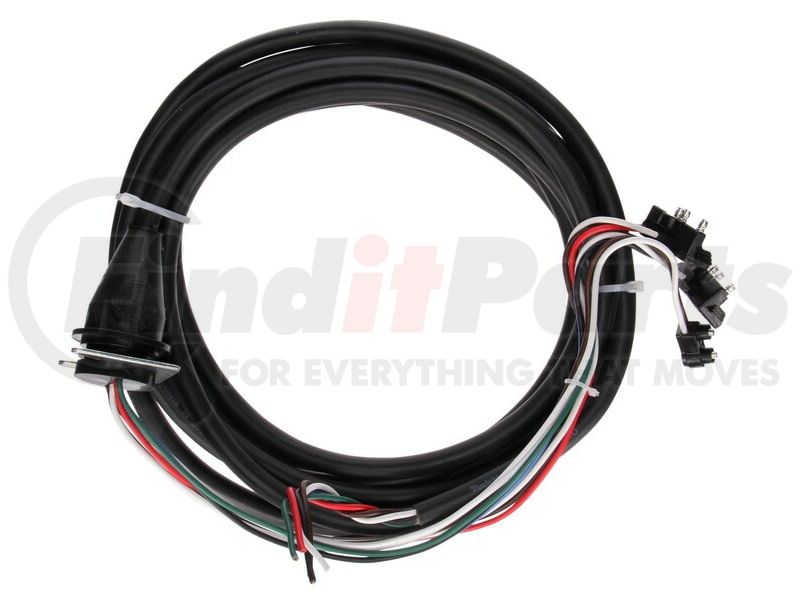

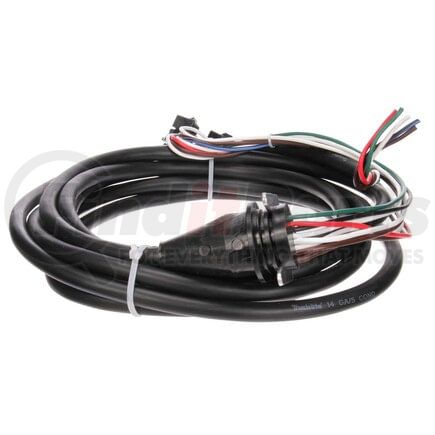

(888) 312-8812 Login SignupTRUCK-LITE 50210 Wiring Harness - 50 Series, 3 Plug, RH Side, 192 in. Marker Clearance, Stop/Turn/Tail, with Stop/Turn/Tail, M/C Breakout, 14 Gauge, Right Angle PL-3, PL-10, Ring Terminal
Tap to view 2 more
$7899
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
TRUCK-LITE 50210 Part Description
Manufacturer
Product Description
50 Series, 3 Plug, RH Side, 192 in. Marker Clearance, Stop/Turn/Tail Harness
Features & Benefits
- Provides the best plug-to-lamp interface for Truck-Lite lamps

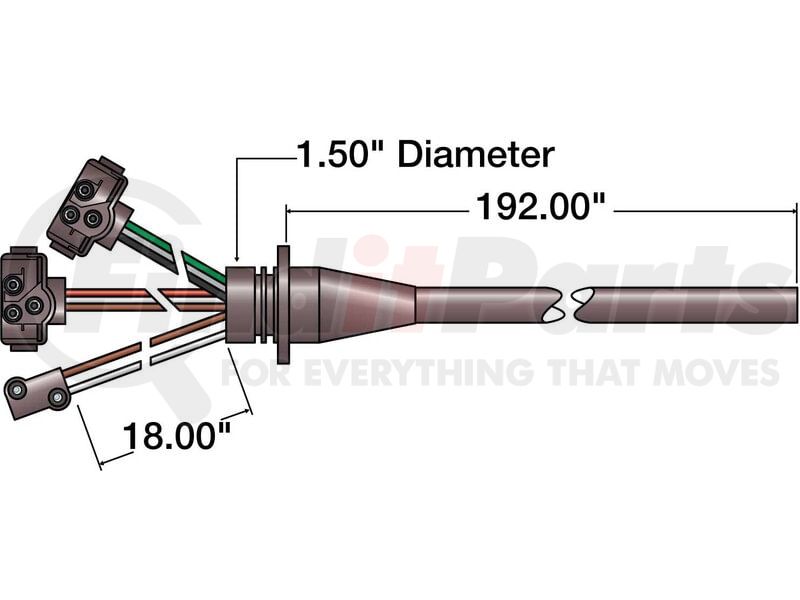

- Dimensions ''A'' indicate standard stocked length harness
- Ideal for use in tanks and trailers and can be retrofitted in older vehicles
- A range of custom length harnesses are available in 12'' increments
- Sealed-in, plug-together construction for all-weather protection and solid electrical contact
- Contact Customer Service for lead time and availability
- PVC jacketed cables with molded plugs and color-coded wires
- 100% compliant with SAE, DOT, and NFPA regulations
Truck-Lite 50 Series Wiring Harness, Marker Clearance & Stop Tail Turn Light
Truck-Lite 50 Series wiring harnesses have a heavy-duty sealed design and “engineered in” quality that you’ve come to expect from the brand. These harnesses are designed for stop tail turn and side marker lights and are available in 12” increments.
TRUCK-LITE 50210 Specifications
Product Attributes
| Conductor Quantity | 5 |
| Harness Type | Marker Clearance, Stop/Turn/Tail |
| Plug Side One | Right Angle PL-3, PL-10 |
| Plug Side Two | Ring Terminal |
| Position | Right Hand Side |
| Series | Super 50 |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge Measurement | 14 |
| Total Height In INH | 1.3 |
| Total Depth In INH | 1.8 |
| Total Depth In MMT | 45.72 |
| Total Width In MMT | 33.02 |
| Weight In LB | 1.9 |
| Total Height In MMT | 33.02 |
Additional Information
| Warranty Time UOM | YR |
| Warranty Time | 5 |
| Country of Origin (Primary) | US |
| UPC | 00735111014690 |
| VMRS Code | 034002036 |
| UNSPSC | 26121700 |
TRUCK-LITE 50210 Cross References
| Brand | Part Number |
|---|---|
| TL50210, 50210, TRU50210 | |
| NAPA | 50210 |
TRUCK-LITE 50210 Customer Reviews
No reviews yet
Be the first to review this product!
TRUCK-LITE 50210 Manufacturer Information
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
