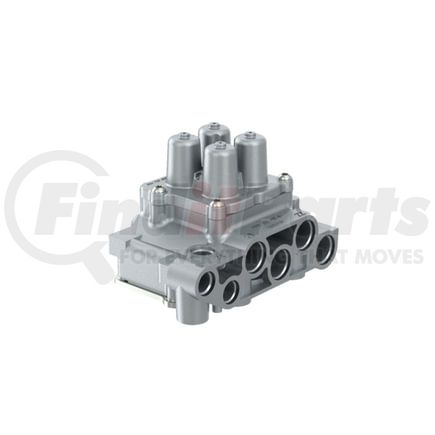

WABCO 9347147300 - Quadruple Protection Valve
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WABCO part description
Product Attributes
| Max. operating pressure | 188.5 psi |
| Size | 187 x 144 x 109 |
| Calculated Volume (dm³) | 2.9352 |
| Max. operating pressure | 188.5 psi |
| Weight | 3.6795 |
| Closing pressure static 21 | 4.5 bar |
| Closing pressure static 23 | 4.5 bar |
| Temperature Range | -40°C to +90°C |
| Opening pressure 22 | 7 bar |
| Opening Pressure Circuit 1+2 | 7.5 + 7.0 bar |
| Type | dynamic |
| Closing pressure static 24 | 4.5 bar |
| Port thread 24 | M16 x 1.5 |
| Charging Pressure | 3.75 bar |
| Port thread 21 | M22 x 1.5 |
| Opening pressure 23 | 7.5 bar |
| Closing pressure static 22 | 4.5 bar |
| Opening pressure 21 | 7 bar |
| Port thread 23 | M22 x 1.5 |
| Opening pressure 24 | 7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Pressure Sensor | No |
WABCO 9347147300 Cross Reference
We have 1 alternatives for the 9347147300 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
