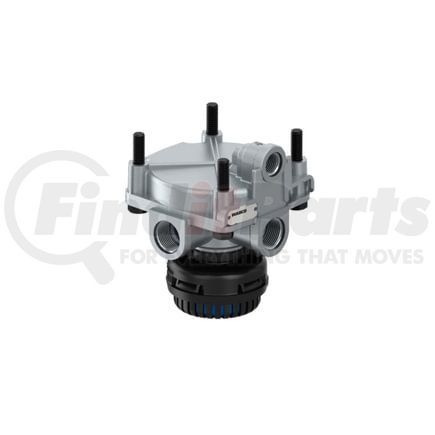

(888) 312-8812 Login SignupWABCO 9730110080 Air Brake Relay Valve
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 9730110080 Part Description
WABCO 9730110080 Specifications
Product Attributes
| Opening Pressure | 0.2 bar |
| Predominance | 0.20 bar |
| Calculated Volume (dm³) | 1.067 |
| Size | 100 x 97 x 110 |
| Max. operating pressure | 10.2 bar |
| Mounting | 4x M8 |
| Regulating Ratio | 1:1 |
| Port thread 2 | 2x M22 x 1.5 JED - 388 |
| Temperature Range | -40°C to +80°C |
| Weight | 1.5432 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED - 388 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Exhaust | Snap on contour JED - 463 |
| Version | Pressure reduction |
WABCO 9730110080 Cross References
We have 2 alternatives for the 9730110080 by WABCO:
WABCO 9730110080 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
