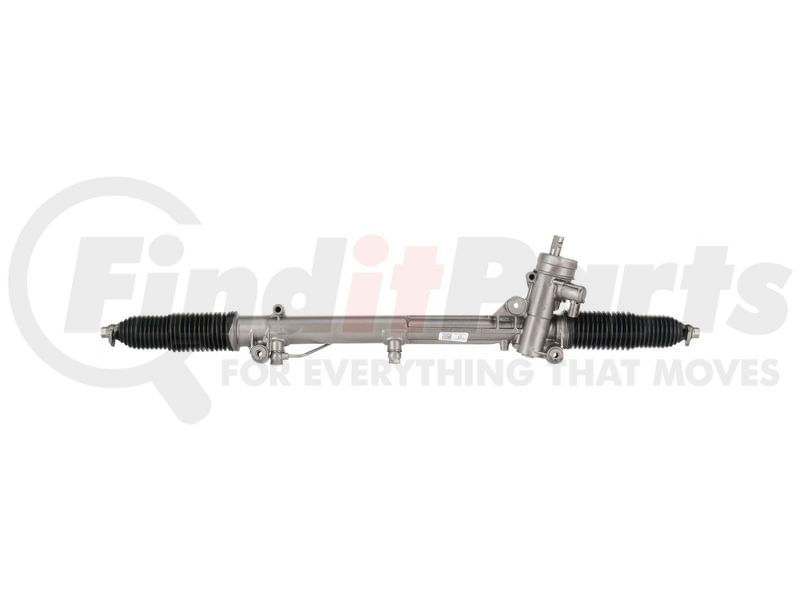

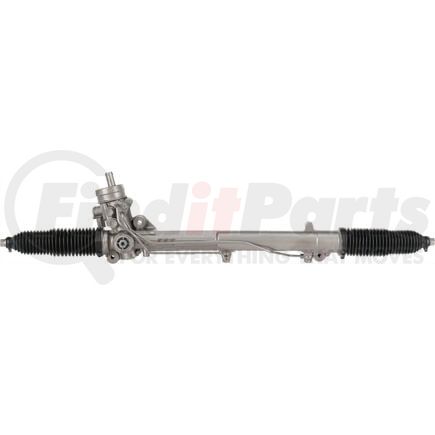

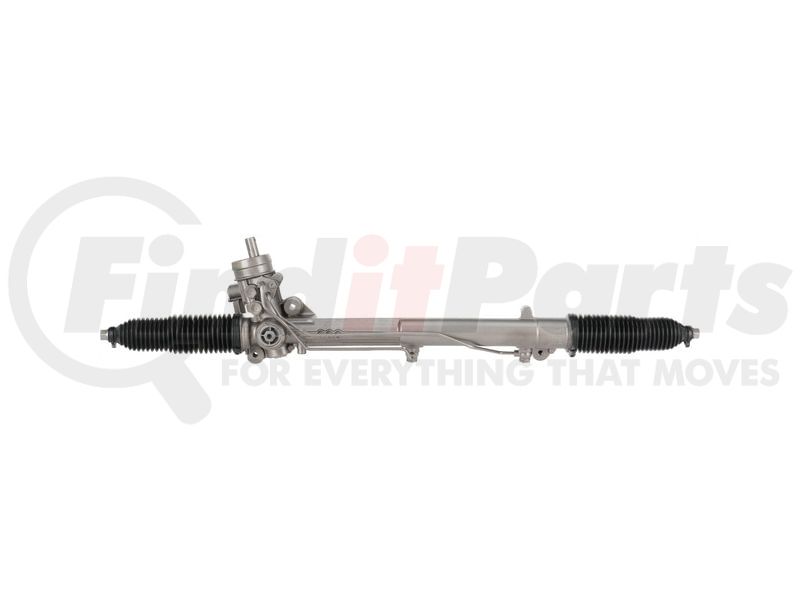

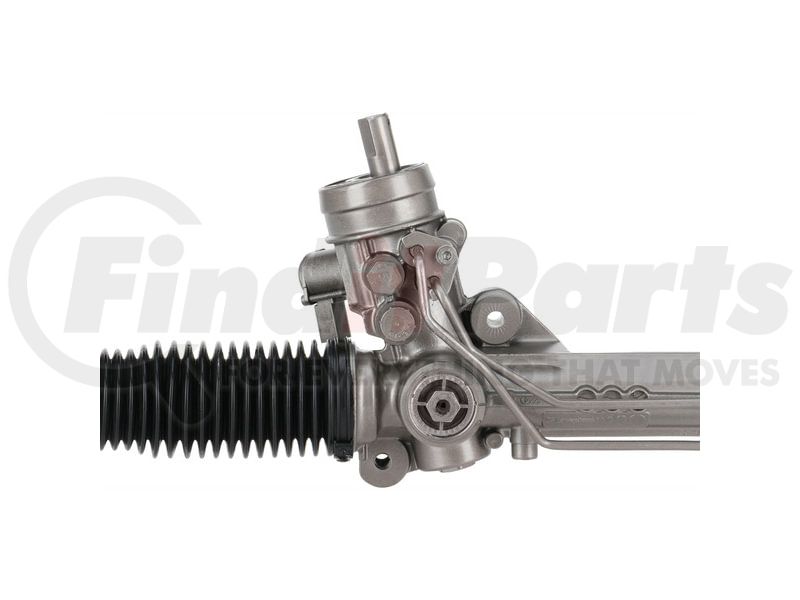

Maval 93307M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93307M
$37099
+$266.67 Core Deposit
Total price w/ core: $637.66
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93307M
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93307M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 20.06 IN |
| Distance Between Mounting Holes | 509.6 MM |
| Hose Port Type | Banjo |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter | 20.17 MM |
| Input Shaft Diameter | 0.79 IN |
| Input Shaft Length | 1.38 IN |
| Input Shaft Length | 34.93 MM |
| Mounting Hole Quantity | 3 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 40.75 IN |
| Rack Length | 1035.05 MM |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 50.8 MM |
| Thread Length | 2 IN |
| Total Turns Lock To Lock | 2.81 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613108431 |
Fits Vehicles
- Audi A4 Quattro (2005-2008)
- Audi A4 (2006-2008)
