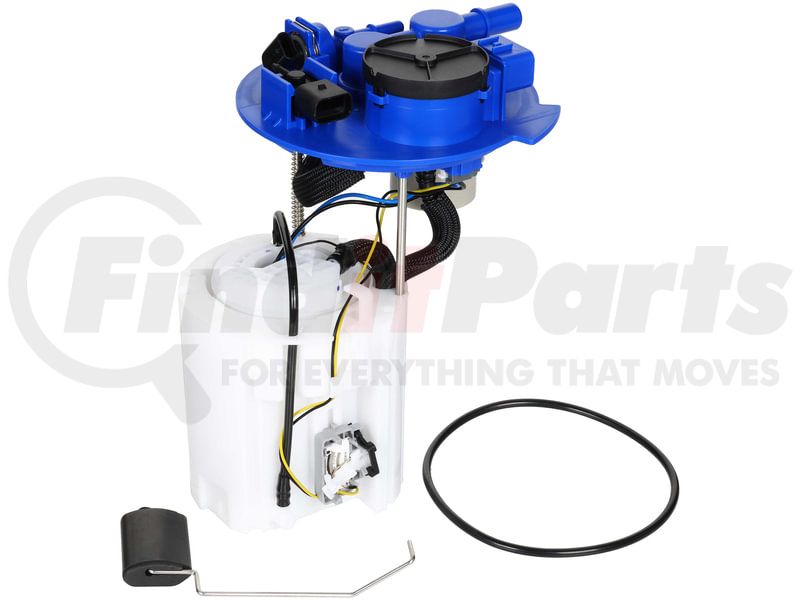

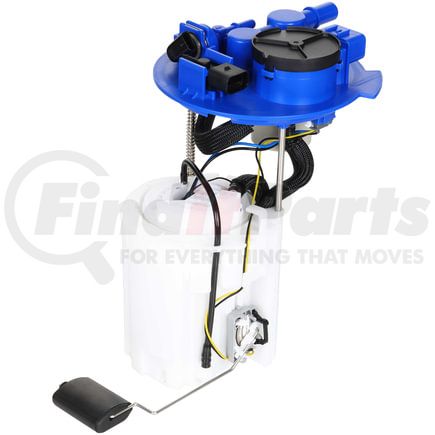

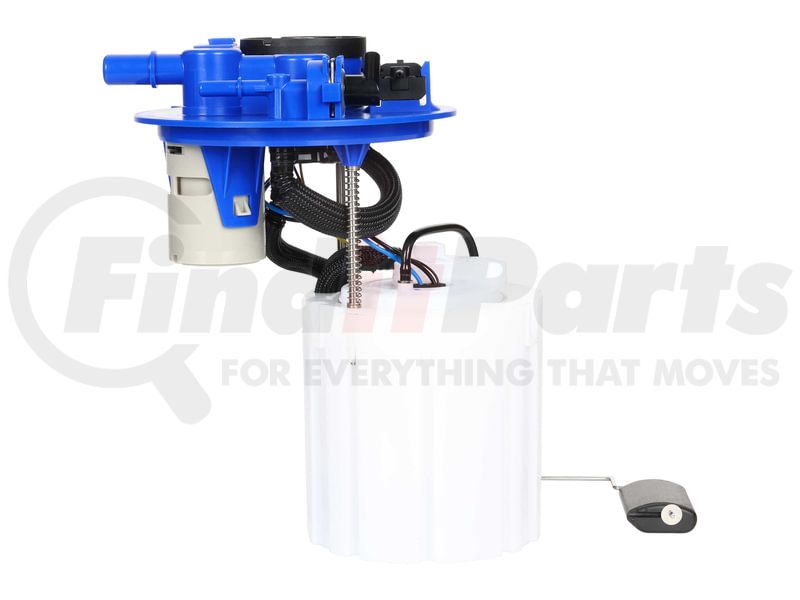

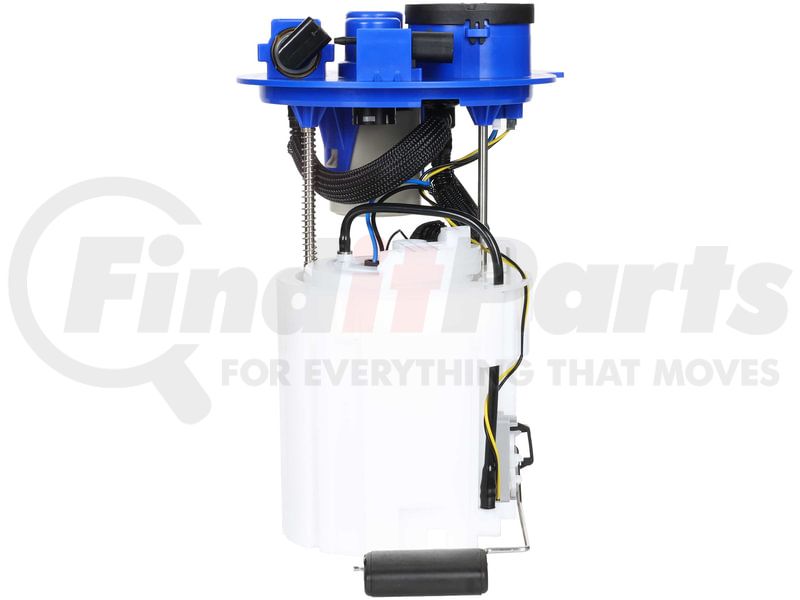

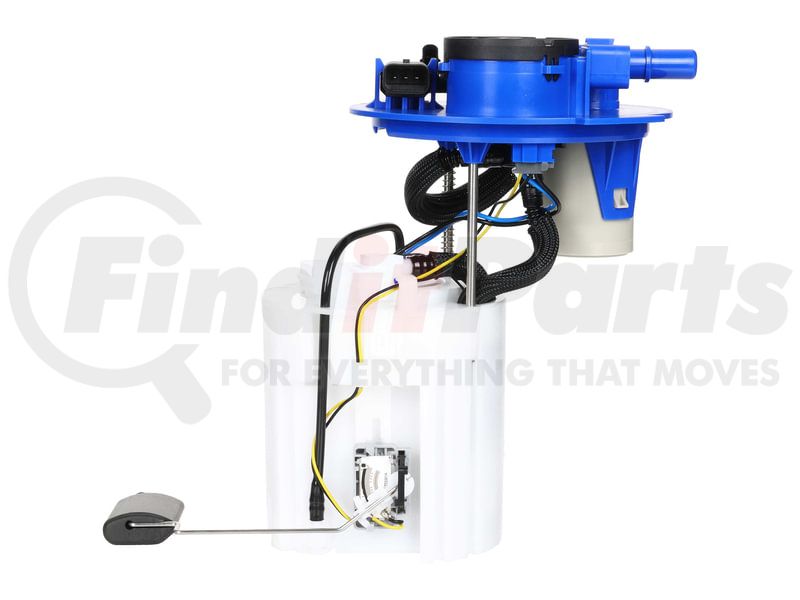

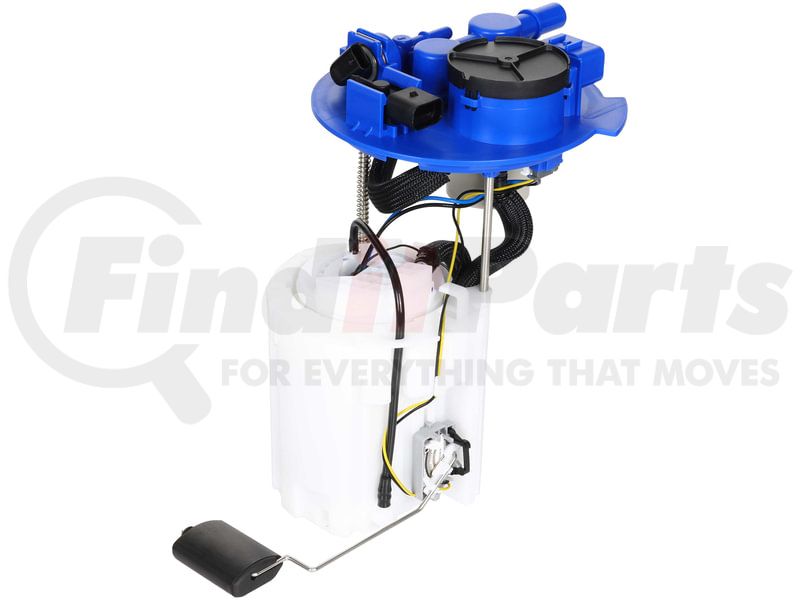

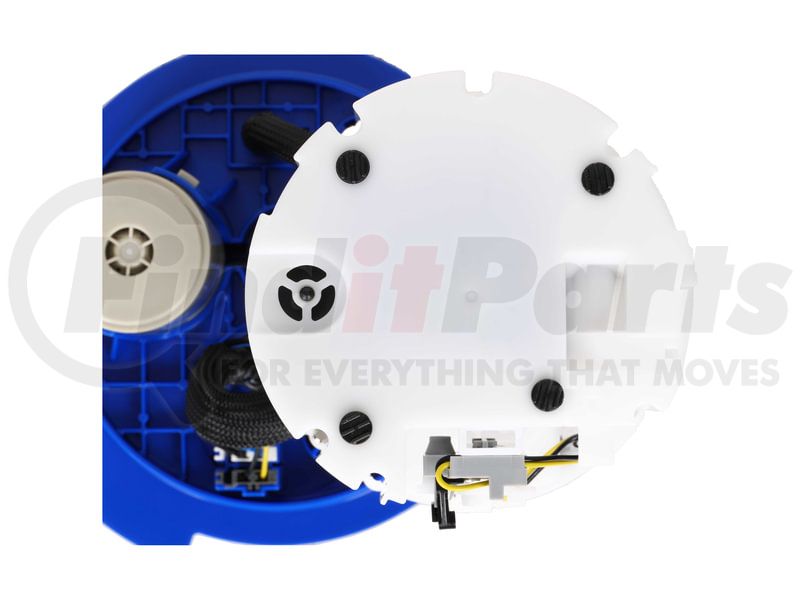

(888) 312-8812 Login SignupDELPHI FG2770 Fuel Pump Module Assembly
Tap to view 10 more
$72749
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jun 17
DELPHI FG2770 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
Fuel Pump Module Assembly
DELPHI FG2770 Specifications
Product Attributes
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 81 PSI |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |

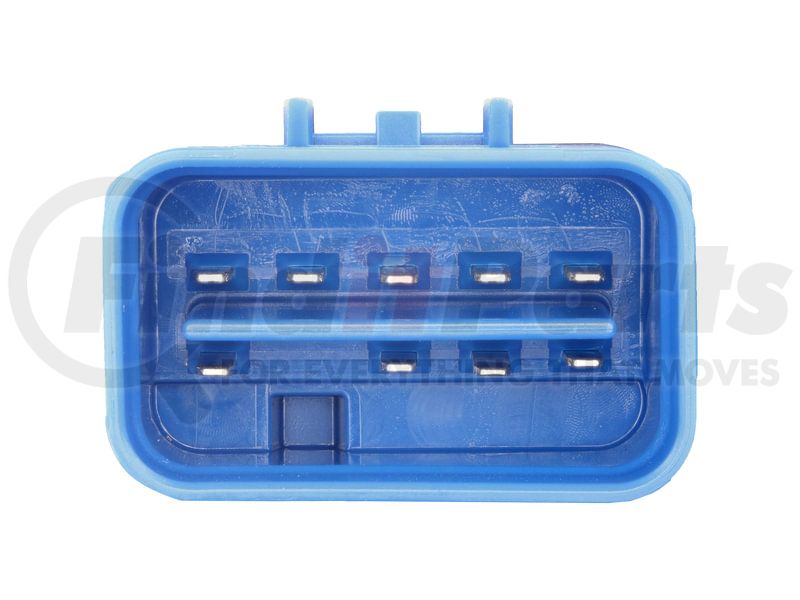

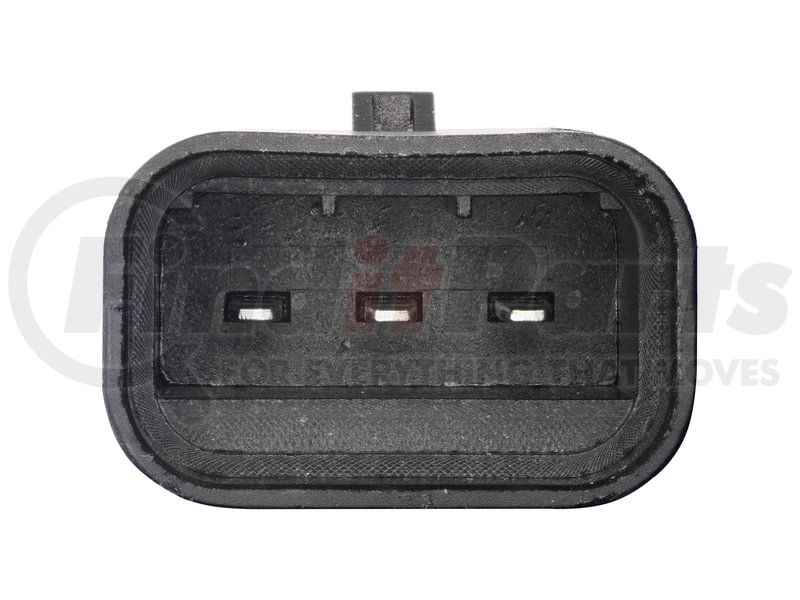

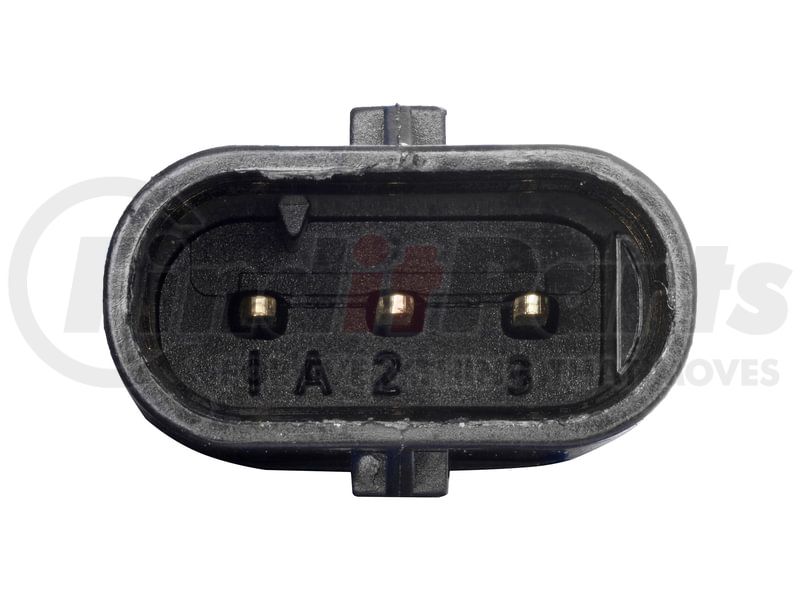

| Connector Quantity | 2 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 9 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 200 82 |
| Resistance Ohms Full | 8 82 |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 74 PSI |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Average Current Draw | 10 68 |
| Fuel Tank Pressure Sensor Included | Yes |
| Average Flow Rating | 38 GPH |
| Pump Type | Electric |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604406151 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2770 Cross References
| Brand | Part Number |
|---|---|
| N/A | 31119-A9000, 31120-F3300 |
DELPHI FG2770 Fits Vehicles
- Hyundai Kona (2018-2020)
- Hyundai Elantra (2017-2020)
