(888) 312-8812 Login SignupDELPHI HP10285 Fuel Pump Hanger Assembly
Tap to view 8 more
$16449
Limited availability at this price!
In Stock
Get it by Monday, Jun 15
DELPHI HP10285 Part Description
Manufacturer
Product Description

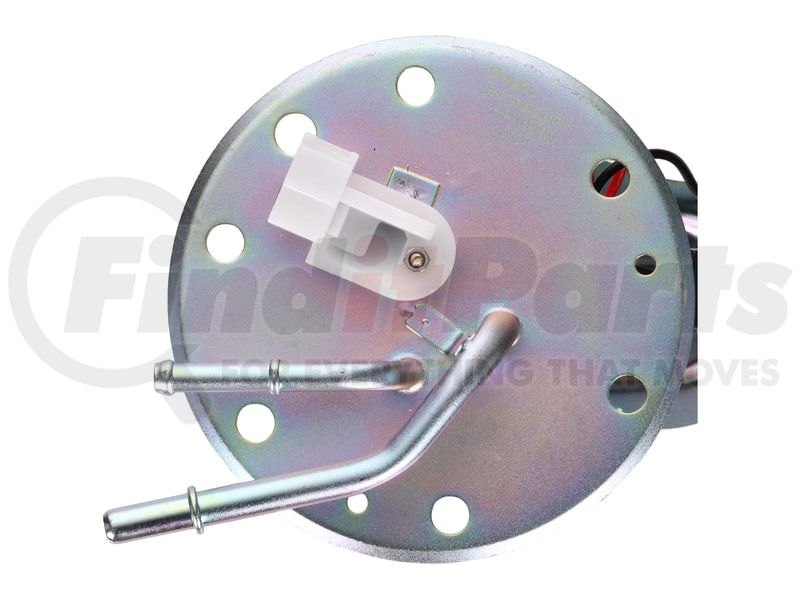

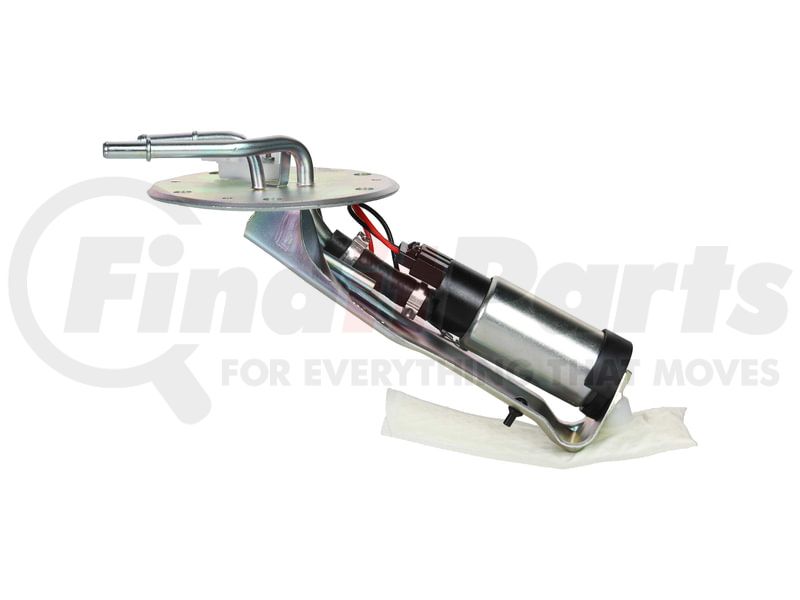

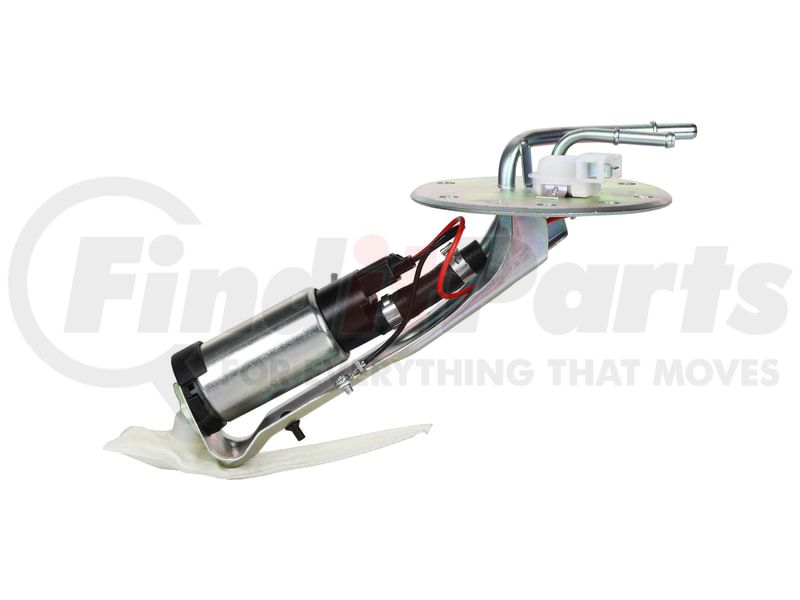

Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
Fuel Pump Hanger Assembly
DELPHI HP10285 Specifications
Product Attributes
| Material | Metal |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Outlet Outside Diameter | 0.310 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 123 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |

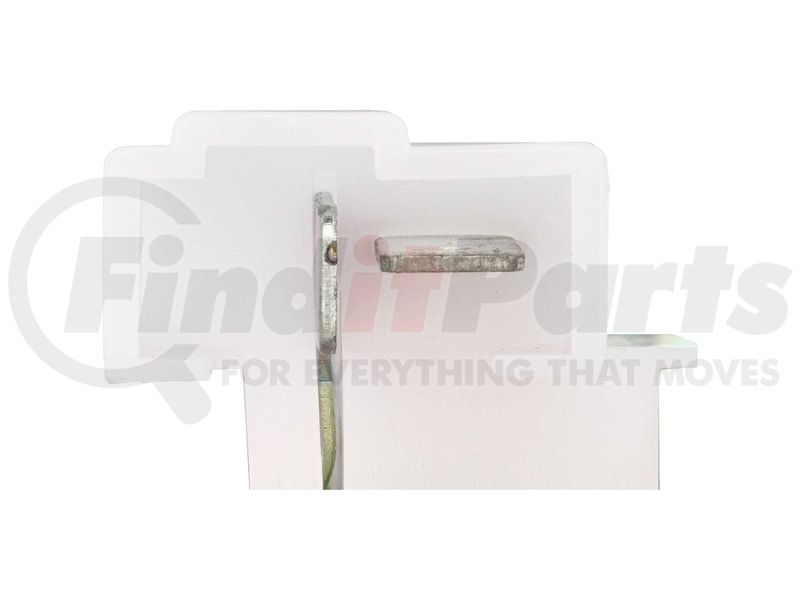

| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 43.0 PS |
| Internal Or External Strainer | External |
| Pump Design | Turbine |
| Average Current Draw | 6.5 68 |
| Fuel Tank Pressure Sensor Included | No |
| Average Flow Rating | 26 GPH |
| Pump Type | Electric |

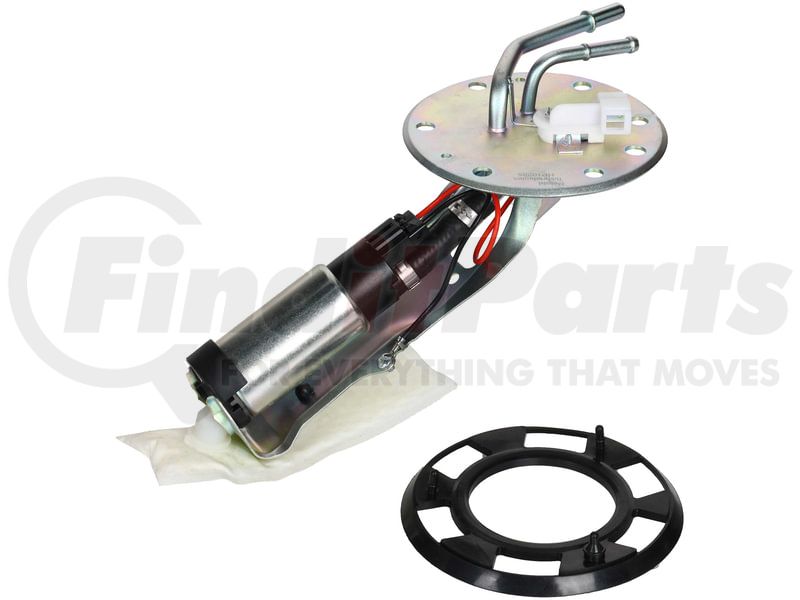

| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Instruction Sheet |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604406199 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10285 Cross References
| Brand | Part Number |
|---|---|
| N/A | P77413S, USEP184B, 17040-S02-L00, 4017236, 17040-S04-G30, 17040-S04-G31 |
DELPHI HP10285 Fits Vehicles
- Honda Civic (1996-1997)
DELPHI HP10285 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI HP10285 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
