CENTRIC 402.63005 Part Description
Manufacturer
Product Description

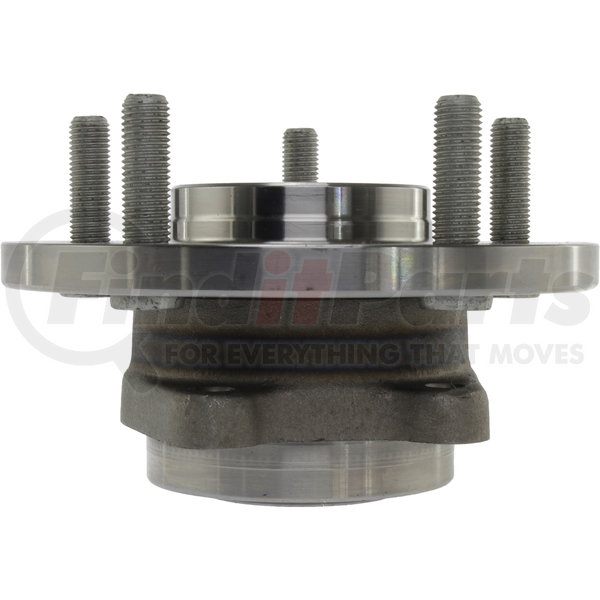

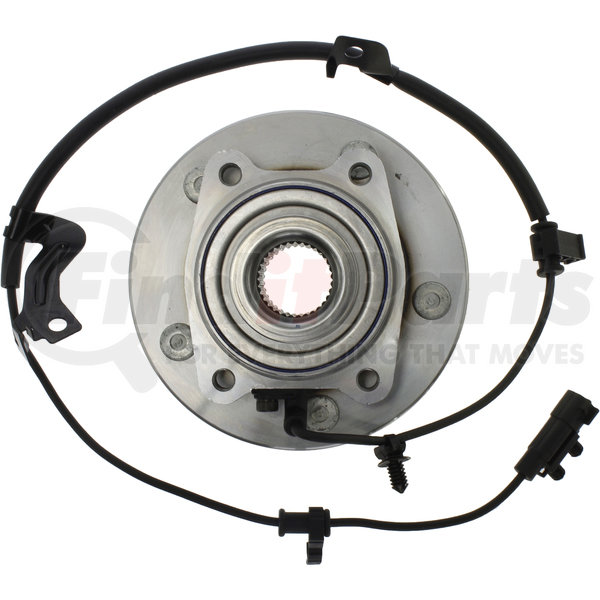

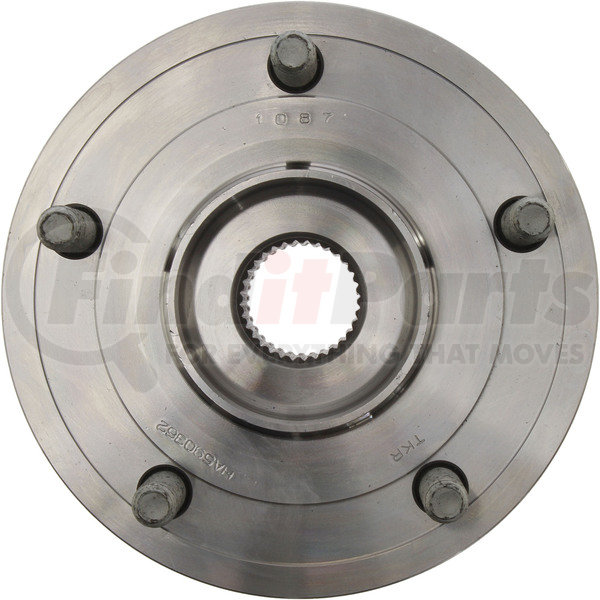

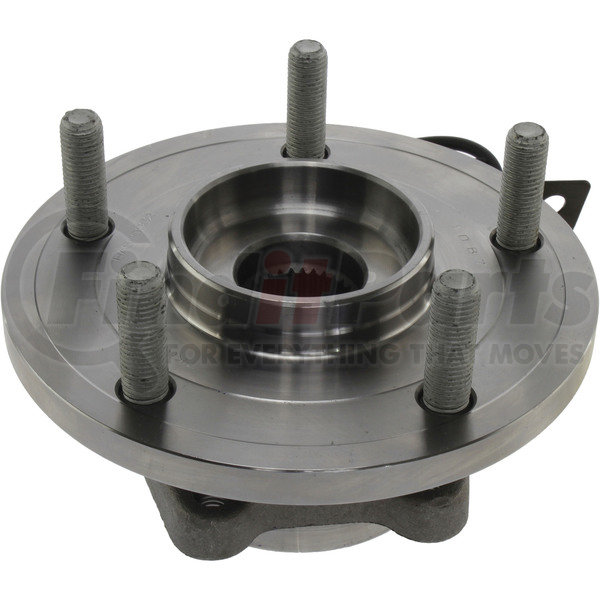

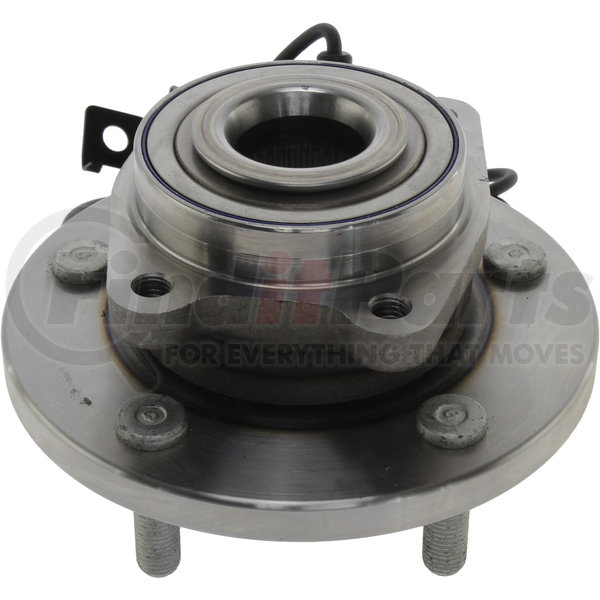

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.63005 Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] In | 3.340 |
| Inner Mount Pilot [cntrc] Mm | 84.840 |
| Off-set [cntrc] In | 48.510 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Mounting Hole Qty [cntrc] | 4 |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Off-set [cntrc] Mm | 1.910 |

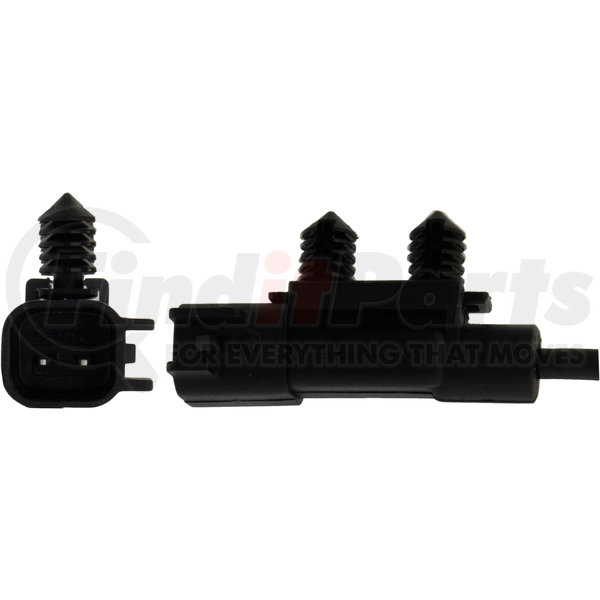

| Notes [cntrc] | Has Removeable ABS Sensor inc harness and brackets (L) - Use Splined Hub Version |
| Spline Quantity | 32 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 71.400 MM |
| Wheel Pilot Diameter | 2.811 IN |
| Brake Pilot Diameter | 72.360 MM |
| Brake Pilot Diameter | 2.851 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.365 IN |
| Flange Diameter | 161.670 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00805890707882 |
CENTRIC 402.63005 Cross References
| Brand | Part Number |
|---|---|
| BCA | WE61365 |
| GMB | 720-3100 |
| MEVOTECH | MB25301 |
| N/A | HA590362, MB25301, H512478, PT512478, BR930879, 559748, 512478, WE61365, 68184743AA, 68184743AC, 68184745AA, 05171 125AB, 05171125AB, 4779 797AA, 4779797AB, 04779 797AA, 04779797AA, 04779797AB, 5171 125AB, 5171125AD, 5171125AE, 5171125AF, 4779797AA, 5171125AB |
| NTN | WE61365 |
CENTRIC 402.63005 Fits Vehicles
- Dodge Journey (2009-2019)
