(888) 312-8812 Login SignupCENTRIC 401.63001 Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Tap to view 1 more
$176.71
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 401.63001 Part Description
Manufacturer
Product Description

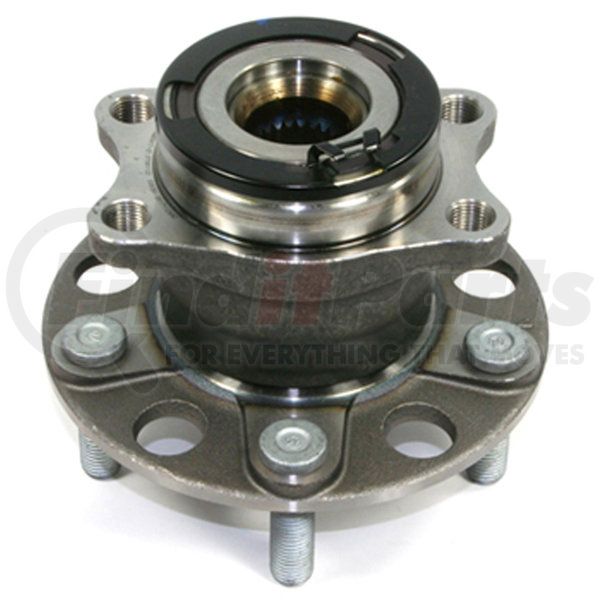

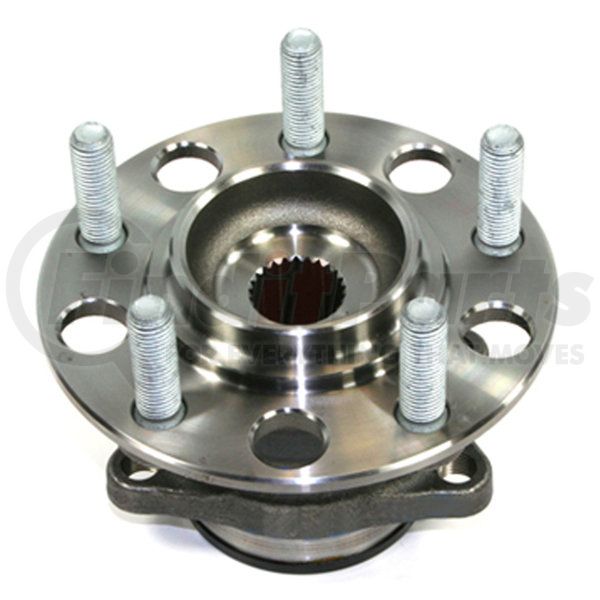

Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 401.63001 Specifications
Product Attributes
| Off-set [cntrc] Mm | 2.382 |
| Inner Mount Pilot [cntrc] Mm | 73.890 |
| Off-set [cntrc] In | 60.500 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Inner Mount Pilot [cntrc] In | 2.909 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Mounting Hole Qty [cntrc] | 4 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Product Grade [cntrc] | Premium |
| Notes [cntrc] | Flange Holes 5 x 0.706", Magnetic ABS Encoder (Seal) |
| Spline Quantity | 25 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.930 MM |
| Wheel Pilot Diameter | 2.635 IN |
| Brake Pilot Diameter | 80.040 MM |
| Brake Pilot Diameter | 3.151 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.527 IN |
| Flange Diameter | 140.390 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890690863 |
CENTRIC 401.63001 Cross References
CENTRIC 401.63001 Fits Vehicles
- Dodge Avenger (2008)
- Chrysler Sebring (2008)
