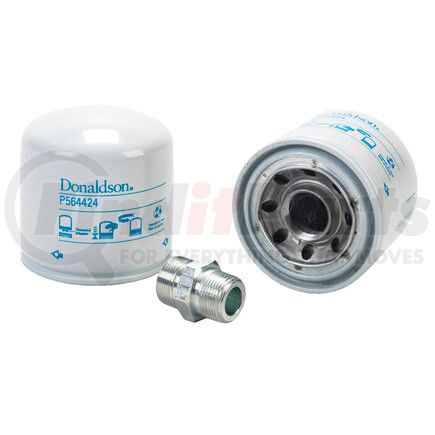

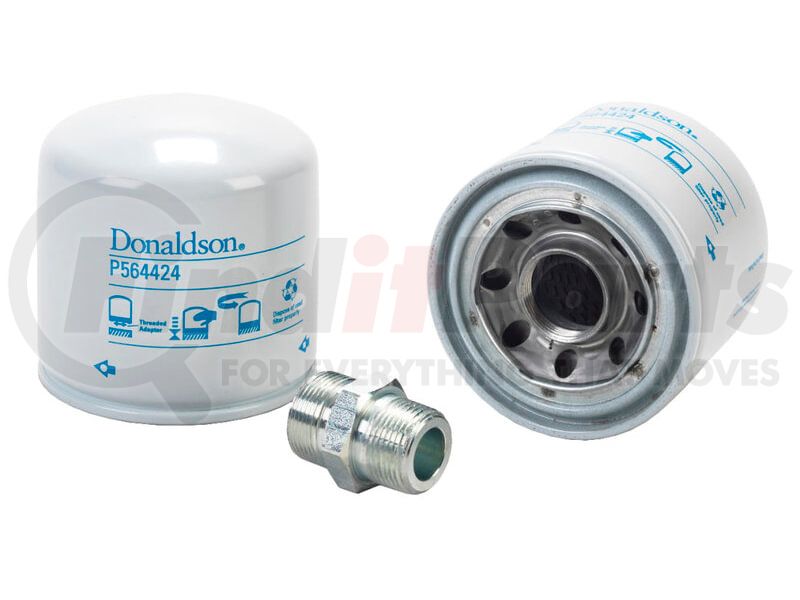

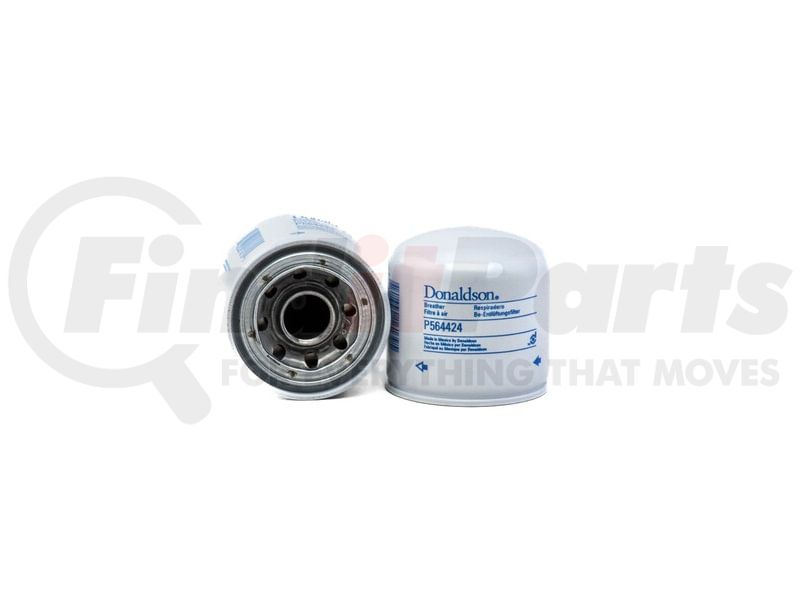

(888) 312-8812 Login SignupDONALDSON P564424 Hydraulic Breather Filter - 3.66 in. ,Spin-On Style, Schroeder Abf310F
Tap to view 1 more
MSRP: $22.67
$2099
Save $1.68
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 10
DONALDSON P564424 Part Description
Manufacturer
Product Description
BREATHER, HYDRAULIC SPIN-ON
Application Summary
SCHROEDER ABF310F
Features & Benefits
- Fits Schroeder-style filter head threads without an adapter
- Tank breathing cycle pulls air through the media constantly
- Clean airflow keeps contaminants away from seals elsewhere
- Bolts onto existing hardware with no separate housing needed
Donaldson Hydraulic Breather Filter
Keep contaminated air from entering the hydraulic reservoir with the Donaldson Hydraulic Breather Filter, replacing one whose media has loaded up enough to restrict the tank's natural breathing cycle. As fluid level rises and falls with cylinder movement, the reservoir draws air in and out through this filter, tying its condition directly to contamination entering the system. The Donaldson P564424 uses a spin-on design compatible with Schroeder ABF310F filter heads, so it threads onto existing hardware without a housing change. A restricted breather can pull a vacuum strong enough to draw contaminants past worn seals elsewhere in the system.
DONALDSON P564424 Specifications
Product Attributes
| Length | 3.66 in |
| Efficiency Beta 2 | 3 MICRON |
| Outer Diameter | 3.66 IN |
| Primary Application | SCHROEDER ABF310F |
| Style | Spin-On |
| Thread Size | 1 1/8-16 UN |
| Length | 3.66 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421390115 |
| UPC | 00742330161395 |
DONALDSON P564424 Cross References
| Brand | Part Number |
|---|---|
| ATLAS COPCO | 51778454 |
| BALDWIN | BT367-S |
| BIG A | 94460 |
| DRILTECH | 15279001 |
| FLEETGUARD | AF4884 |
| FRAM | PFA11028 |
| GEHL | 137787 |
| HEIL | 600402001 |
| LUBER-FINER | LFH4909WA |
| N/A | 015279001, 15279001, LF473, HF911, LA1764, 46460, 542469, 94460, BT367, BT367S, LFH4909, 51778454, 88460, 4004062, AF4884A, HF28905, AFR84884A, ABG10, 6460, SGB09010P, SGB9010P, 623454, 0623454, WGHB1000, 7312009, 51790517, 0600402001, 600402001, T225008, 137787, HPBQ360735, ABF25, ABF310F, G1199, 53431 |
| WIX FILTERS | WIX FILTERS, 42469 |
DONALDSON P564424 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P564424 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
