DONALDSON part description

Product Description

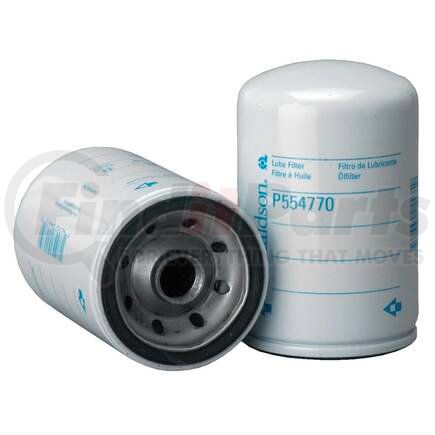

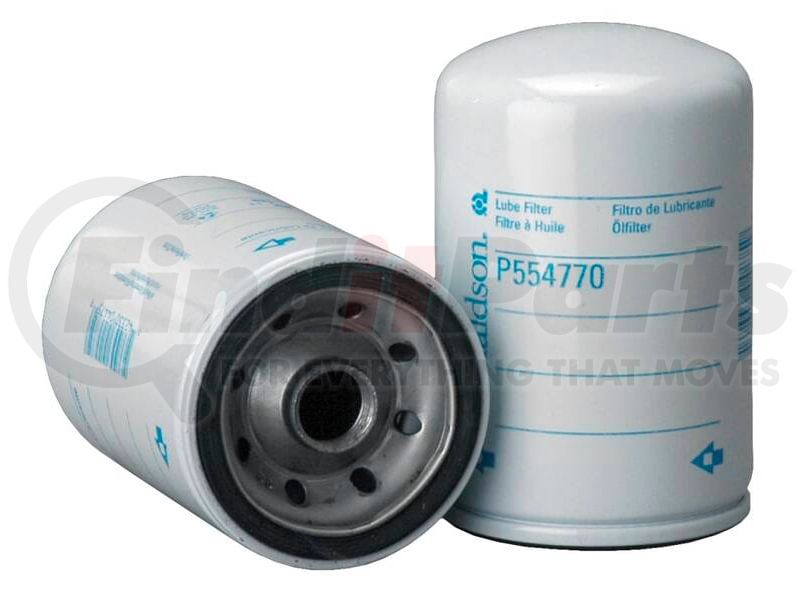

LUBE FILTER, SPIN-ON FULL FLOW

Application Summary

JOHN DEERE AM34770

Product Attributes

Anti-drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting Hr 2.1 bar (30 psi)
Bypass Valve Setting LR 1.8 bar (26 psi)
Collapse Burst 6.9 bar (100 psi)
Efficiency 99% 40 micron
Efficiency Test Std SAE J1858
Gasket Id 2.36 in
Gasket Od 2.76 in
Length 4.72 in
Media Type Cellulose
Outer Diameter 2.99 in
Primary Application JOHN DEERE AM34770
Style Spin-On
Thread Size 3/4/2016 12:00:00 AM
Type Full-Flow
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
