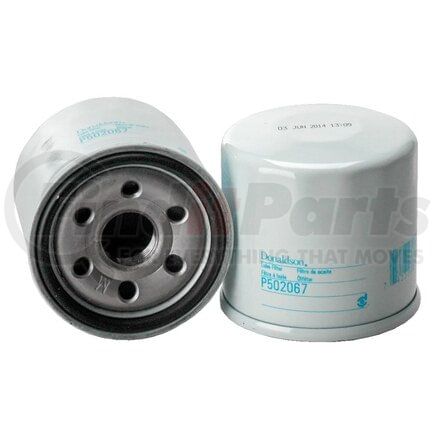

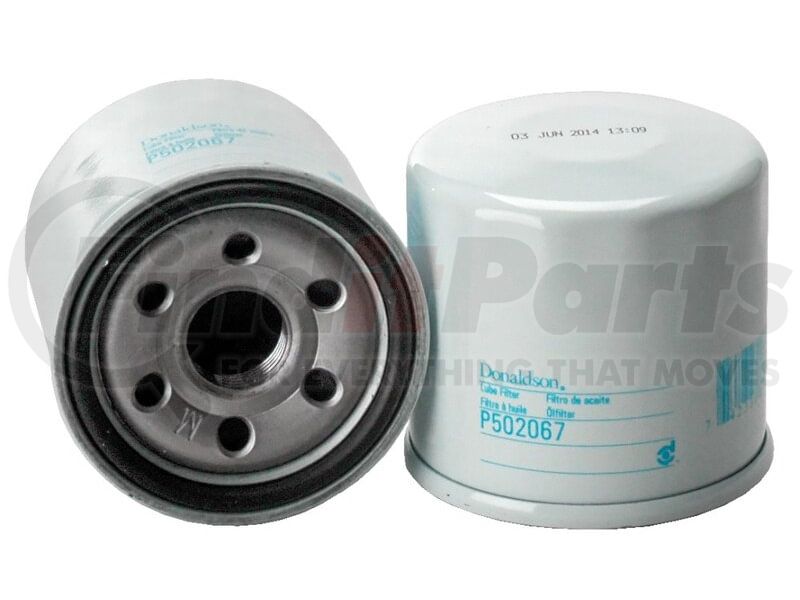

(888) 312-8812 Login SignupDONALDSON P502067 Engine Oil Filter - 2.56 in., Full-Flow Type, Spin-On Style, Cellulose Media Type, with Bypass Valve
MSRP: $18.54
$1249
Save $6.05
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
DONALDSON P502067 Part Description
Manufacturer
Product Description
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Compact 2.56-inch body combines full-flow filtration with spin-on service
- Lube-filter cellulose media captures wear debris from normal oil flow
- Opens an alternate oil path through the bypass under excessive restriction
- Attaches with an M20 x 1.5 engine filter-head thread
Donaldson Engine Oil Filter
For compact lube-filter locations that still need full-flow filtration and a safeguard against excessive restriction, the Donaldson Engine Oil Filter provides both functions in one spin-on canister. Its media handles routine contaminant capture, while an internal bypass can preserve lubrication if flow through the element becomes too restricted. At 2.56 inches long with an M20 x 1.5 connection, this Donaldson P502067 filter suits installations built around those dimensions. Correct filter-head and gasket fit keep normal oil flow through the media while reserving the bypass for high-restriction conditions.
DONALDSON P502067 Specifications
Product Attributes
| Anti-drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting Hr | 1.2 BAR |
| Bypass Valve Setting LR | 0.8 BAR |
| Collapse Burst | 6.9 BAR |
| Efficiency 50% | 20 MICRON |
| Efficiency 99% | 40 MICRON |
| Efficiency Test Std | JIS D 1611 |
| Gasket Id | 2.2 IN |
| Gasket Od | 2.56 IN |
| Length | 2.56 IN |
| Media Type | Cellulose |
| Outer Diameter | 2.68 IN |
| Style | Spin-On |
| Thread Size | M20 x 1.5 |
| Type | Full-Flow |
Additional Information
| Country of Origin (Primary) | CO |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330109892 |
DONALDSON P502067 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | ACD000183, PF1237, PF2112, PF2135 |
| AFE | 44-LF017-MB, 44-LF017 |
| AGRINET LTD | 11930535150YANMAR |
| ALCO | SP1002 |
| AMERICAN MOTORS CORPORATION | FO011A, L6607, MO6607, OC14090, OC15180, OC16090, OF2021, SFO4621, VO54, Y1193053150, Y11930535150 |
| AMSOIL | EAO12, SDF13 |
| BALDWIN | B1400 |
| EXXON/MOBIL OIL | M1108, M1108A |
| FLEETGUARD | LF3925 |
| FRAM | XG6607, PH6017a, PH6607, M1-108A, M1-108, DL6607, TG6607 |
| LUBER-FINER | PH2876 |
| MAHLE | OC 711 |
| MANN-HUMMEL FILTERS | L14612, W67/1 |
| MOBIL OIL | M1108A, M1108 |
| N/A | PO1357, PO1365, WO1365, LF113, O37, DG6607, PH9715, PF9715, PH2876, PH4998, PH6017, PH6017A, PH6607, TG6607, TFC531, HSO134, L265, L266, L358, PF1365, ML16817, ML16819, PER4622, PL14612, PL14622, L14612, L14622, 51365XP, 51365, 57712, WL7200, L4622, 92365, 92358, SO2876, B1400, B7285, GM14622, GM4622, PH7028, 85365, LF3692, 160971063, 160971072, LFR83692, A0653039, 1365, 21365, 41365, PF1237, PF2112, PF2135, ACD000183, 2520799, 3070131, 3084963, 3769707, 1090007, E9GZ6731A, 2630002500, 263002Y500, B63114302, FE3R14302, OFE3R14302, FO011A, L6607, MO6607, OC14090, OC15180, OC16090, OF2021, SFO4621, VO54, Y1193053150, Y11930535150, C2502, C1809, C18093, C18094, C18096, C5205, WGL9056, WGL9197, SFO0535, SFO4612, 15400PFB004, 15400PFB014, 15400PH3004, 15400PJ7005, 15400PJ7015, 15410MCJ000, 15410MCJ003, 15410MM9013, 15410MM9405, PH7015, PH2868, FMS1809, FMS2046, FO406S, W68, MW671, W671, W6780, H97W06, M806418, 11930535150, 1930535151, YM11930535150, YM11930535151, OP595, 5474010026, 102619, M33, C431, C830, S19100660011, VPD5105, 48010995, VV11930535151, 11713228, VOE11713228, 15714573, CF113, M4612, M4622, PZ37, SL14612, SL14622, PH4612, PH4622, V4612, V4622, QS14612, QS6607, LF113F, OF4622, EAO12, SDF13, CF113AP, S58, SH531, SH538, C4612, C4622, C2876, PO4612, PO6607, WPH7015, WPH7028, WPH2876, L2876, VO106, VO49, 168, TFC538, MO4612, MO4622, 3300, 72180, 72182, FL816, Z1039, 3FV1344000, 5GH1344000, 5GH134405000, Y11930535151, TY11930535151, LS892, Z436, Z445, F0PH2868, F0PH2876, CA151, CA168, 152071758756, S6607, 934295, 901281813, 15208AA024, 15208AA080, 15208AA09A, 15208AA100, 15208KA000, 15208KA010, 526K, 11K, MO256, 2151, 194691, 452410, FO1033, 5864006320, 30A4000200, 30A4000201, 30A4000202, MD134593, MD134953, 156072110, S156072111, S3291EV020, 72276227, J1317004, MTW61, T59, T600, T8305, T3132, T8306, SO6099, C806, C901, 4661289, 54647680, 85426849, 11930535151, 11930535160, 11930535170, 6671057, ADM52106E, B63014302, B65114302, B6Y114302, B6Y114302A, B6Y123302, B6Y214302, B6YL14302, F2Y014302, 1369907, 9006427, 5002644, 7017980, 7018103, W21ES01500Â Â , W21ES01500, HH1J032430, 1585332430, 1585332437, 1585399170, 1585399179, HH15032430, W21ESO1500, OC195, 01857444, 1857444, 4189, 116182, 126182, 092325840, 2325800, 2325840, 92325840, 1000003052, 5200004741, S3258R, 5740004, 05740004, 5740096, 1520865F0A, 152081HC0A, 152089F60A, 32005769, KN2041, 330560538, B4622, TF4622, 61365, CO2876, K32 |
| PUROLATOR | TL14612BP, TL14612, L14612, PBL14612, PL14612 |
| WIX FILTERS | WIX FILTERS, 51365, 51365XP |
